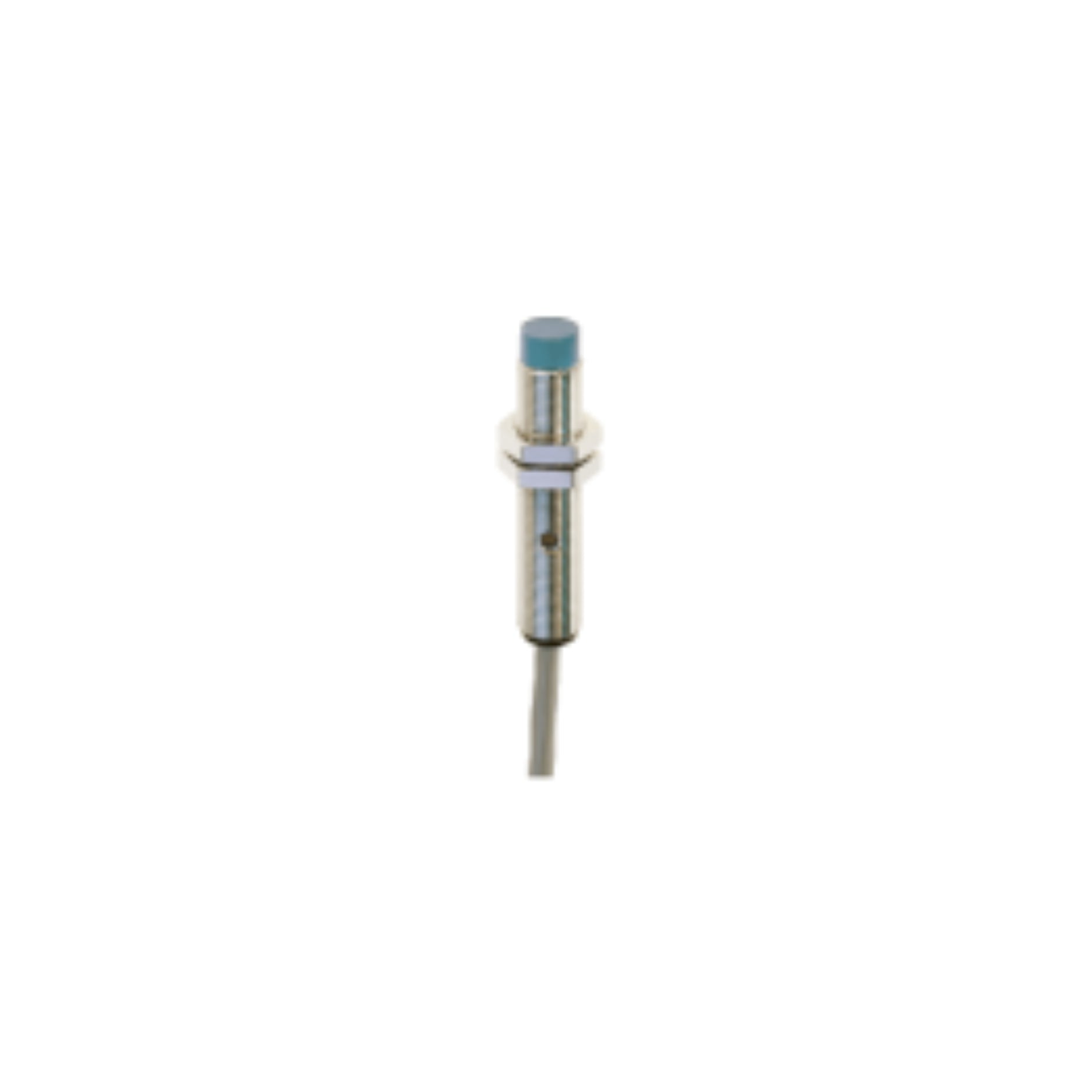

Pepperl+Fuchs 3RG4022-0KB00-PF | M30 | 15 mm | PNP NO | IP69K

Pepperl+Fuchs 3RG4022-0KB00-PF | Inductive Sensor, M30, 15 mm, PNP NO, IP68/IP69K

Overview:

The Pepperl+Fuchs 3RG4022-0KB00-PF (Part No. 552087) is a rugged M30 inductive proximity sensor with a 15 mm non-flush sensing distance, designed for high-reliability metal detection in extreme industrial conditions. With PNP normally open output and IP68/IP69K protection, this sensor is ideal for washdown areas, food & beverage, and heavy-duty automation.

Key Features:

• Sensing Distance: 15 mm (non-flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Housing: M30 cylindrical, corrosion-resistant stainless steel

• Connection: M12 connector, 4-pin

• Protection Class: IP68 / IP69K – ideal for high-pressure washdowns

• Switching Frequency: Up to 250 Hz

• Status Indicator: LED for switching state

• Temperature Range: -25°C to +85°C

Technical Specifications:

• Model Number: 3RG4022-0KB00-PF

• Part Number: 552087

• Sensor Type: Inductive proximity

• Installation: Non-flush

• Voltage Drop: ≤ 2.5 V

• Max Load Current: 200 mA

• No-Load Current Consumption: ≤ 15 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Material – Housing: Stainless steel

• Material – Sensing Face: PBT

• Connection Interface: M12 x 1, 4-pin male

• Weight: Approx. 150 g

Applications:

• Food & Beverage Industry: Sensor survives washdown and cleaning agents

• Material Handling Systems: Long-range metal detection

• Machine Tools: Reliable operation in demanding environments

• Packaging Machinery: Detect presence of objects in wet zones

• Heavy Equipment: Durable sensing under vibration and shock

Why Choose the 3RG4022-0KB00-PF?

✅ Long 15 mm sensing distance with non-flush installation
✅ Robust stainless steel housing for corrosion resistance
✅ IP69K-rated for high-pressure water resistance
✅ PNP NO output integrates easily with control systems
✅ Built for the harshest industrial conditions

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
