Pepperl+Fuchs 3RG4012-3AG33-PF | M12 | 2 mm | PNP NO | DC 3-Wire | IP67

Pepperl+Fuchs 3RG4012-3AG33-PF | Inductive Sensor, M12, 2 mm, PNP NO, IP67

Overview:

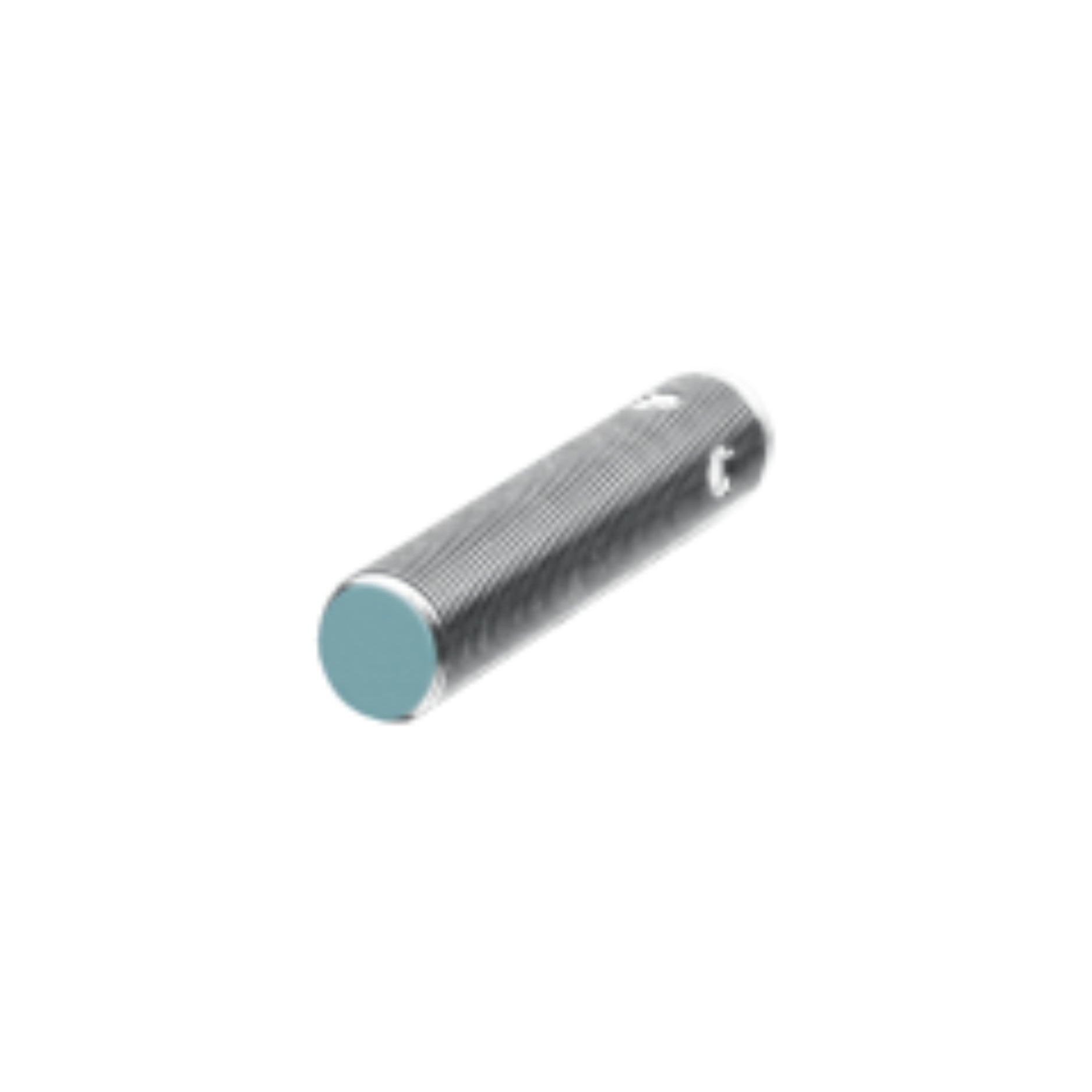

The Pepperl+Fuchs 3RG4012-3AG33-PF (Part No. 552742) is a compact M12 inductive proximity sensor with a 2 mm flush sensing range and PNP normally open output. Designed for DC 3-wire operation and rated IP67, it provides reliable metal detection in automated machinery and industrial environments.

Key Features:

• Sensing Distance: 2 mm (flush mountable)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Output Configuration: 3-wire DC

• Connection Type: M12, 4-pin connector

• Housing Material: Metal (nickel-plated brass)

• Protection Class: IP67

• Switching Frequency: Up to 2,000 Hz

• LED Indicator: Switching status

Technical Specifications:

• Model Number: 3RG4012-3AG33-PF

• Part Number: 552742

• Sensor Type: Inductive proximity

• Installation: Flush mount

• Voltage Drop: ≤ 2.5 V

• Max Load Current: 200 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Operating Temperature: -25°C to +70°C

• Connector: M12 x 1, 4-pin male

• Dimensions: Ø12 mm x ~40 mm

• Weight: Approx. 30 g

Applications:

• Industrial Automation: Detects metal components in machinery

• Packaging Equipment: Verifies part presence and positioning

• Material Handling: Sensing items on conveyors

• Robotics: Positioning and detection tasks

• OEM Machinery: Compact integration for space-limited environments

Why Choose the 3RG4012-3AG33-PF?

✅ Flush-mounted sensing for durable and precise installation
✅ Compact M12 design fits tight industrial spaces
✅ Reliable PNP NO output for seamless control integration
✅ IP67 protection ensures resistance to water and dust
✅ Fast switching frequency supports dynamic applications

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
