Pepperl+Fuchs 3RG4012-0AB00 | M12 | 4 mm | PNP NO | DC 3-Wire | IP67

Pepperl+Fuchs 3RG4012-0AB00 | Inductive Sensor, M12, 4 mm, PNP NO, IP67

Overview:

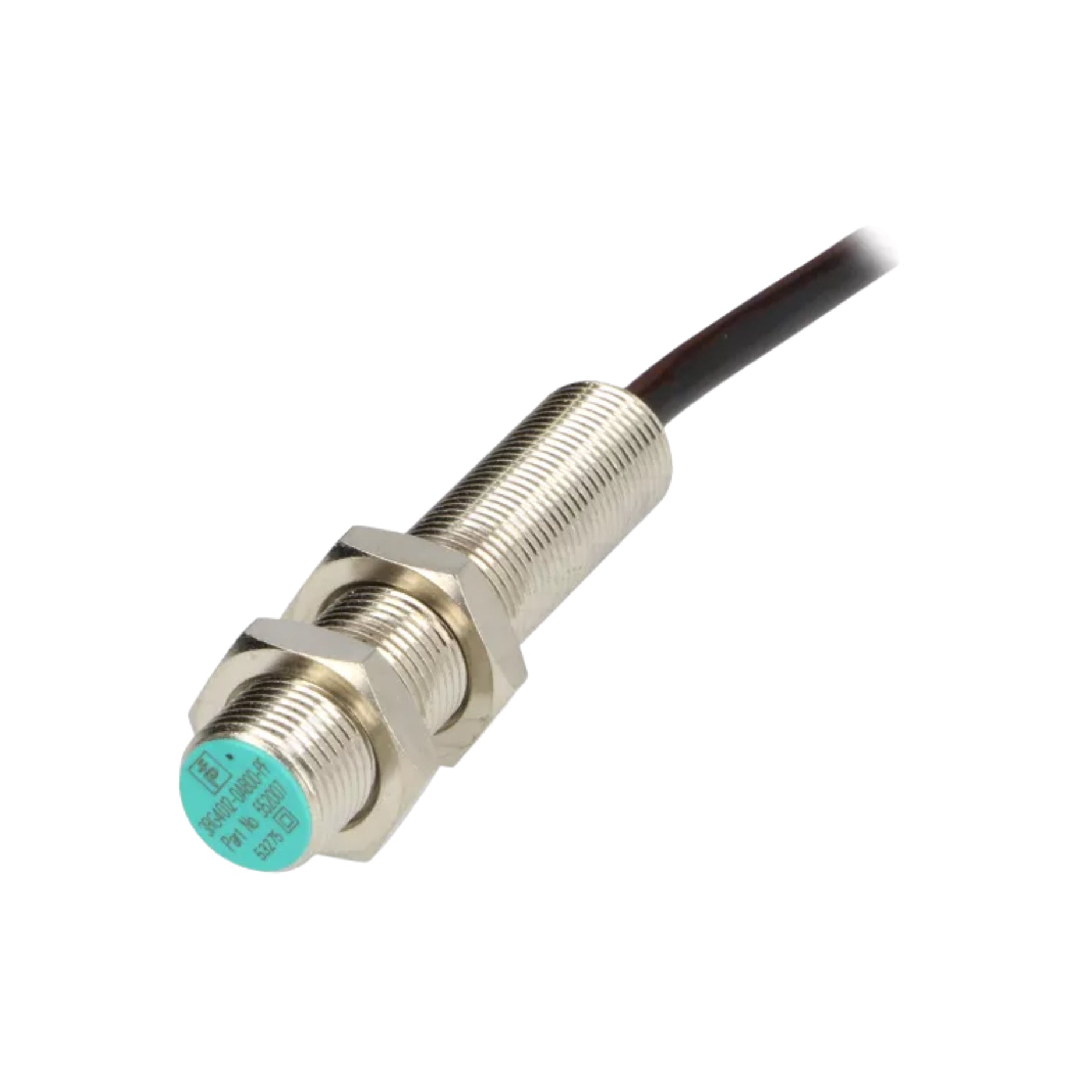

The Pepperl+Fuchs 3RG4012-0AB00 is a flush-mount inductive proximity sensor in a M12 cylindrical housing, offering a 4 mm sensing distance and PNP normally open output. Designed for rugged environments, this DC 3-wire sensor is ideal for reliable metal detection in industrial automation systems.

Key Features:

• Sensing Distance: 4 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Wiring Type: 3-wire DC

• Operating Voltage: 10–30 VDC

• Housing Type: M12 x 1, nickel-plated brass

• Connection: Pre-wired 2 m PVC cable

• Protection Class: IP67

• Switching Frequency: Up to 2,000 Hz

• Temperature Range: -25°C to +70°C

• LED Indicator: Yes, for switching status

Technical Specifications:

• Model Number: 3RG4012-0AB00

• Sensor Type: Inductive proximity

• Installation Type: Flush

• Voltage Drop: ≤ 2.5 V

• Max Load Current: 200 mA

• Current Consumption: ≤ 10 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Cable Length: 2 meters

• Weight: Approx. 50 g

Applications:

• Automation Systems: Detecting metal parts in production lines

• Material Handling: Monitoring objects on conveyors

• Robotics: Position sensing in compact environments

• Packaging Machinery: Component presence verification

• OEM Equipment: Easy integration with PLCs and controllers

Why Choose the 3RG4012-0AB00?

✅ Reliable 4 mm flush sensing in a standard M12 form factor
✅ Easy 3-wire DC connection for simplified installation
✅ Durable IP67 housing for tough industrial environments
✅ Fast switching capability for dynamic applications
✅ Trusted Pepperl+Fuchs quality

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
