Pepperl+Fuchs 3RG4011-3AB00 | M8 | 2 mm | PNP NO | DC 3-Wire | IP67

Pepperl+Fuchs 3RG4011-3AB00 | Inductive Sensor, M8, 2 mm, PNP NO, IP67

Overview:

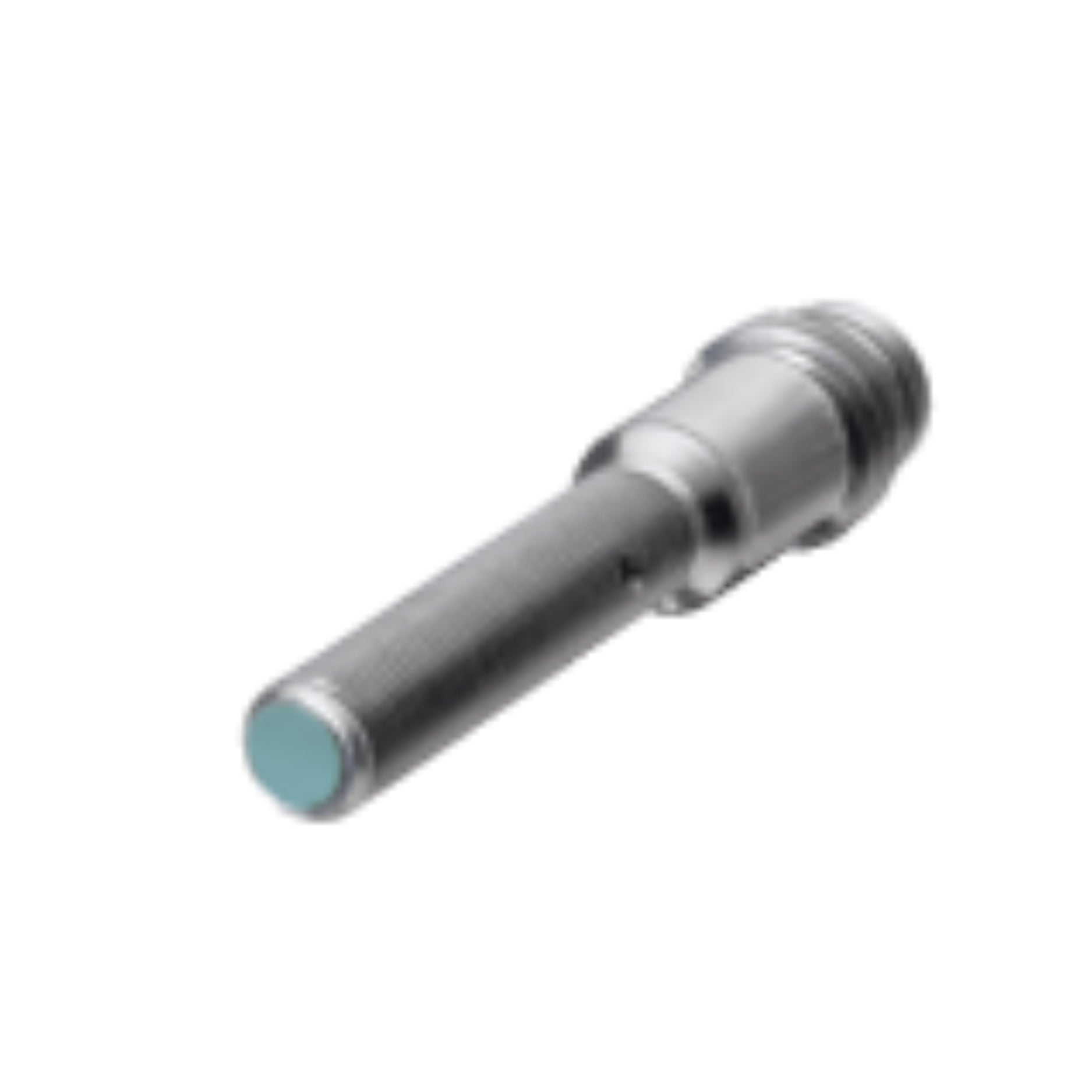

The Pepperl+Fuchs 3RG4011-3AB00 (Part No. 553163) is a compact M8 inductive proximity sensor designed for flush mounting in tight spaces. With a 2 mm sensing range, PNP normally open output, and rugged design, it is ideal for precise metal detection in industrial automation environments.

Key Features:

• Sensing Distance: 2 mm (flush)

• Output Type: PNP, Normally Open (NO)

• Wiring Type: 3-wire DC

• Operating Voltage: 10–30 VDC

• Connection: 2 m pre-wired PVC cable

• Housing: M8 x 1, nickel-plated brass

• Protection Rating: IP67

• Switching Frequency: Up to 2,000 Hz

• Operating Temperature: -25°C to +70°C

• LED Indicator: Integrated switching status

Technical Specifications:

• Model Number: 3RG4011-3AB00

• Part Number: 553163

• Sensor Type: Inductive proximity

• Installation Type: Flush mount

• Voltage Drop: ≤ 2.5 V

• Max Load Current: 100 mA

• No-Load Current Consumption: ≤ 10 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Cable Length: 2 meters

• Weight: Approx. 30 g

Applications:

• Assembly Lines: Metal part detection in compact machines

• Packaging Systems: Position sensing in tight layouts

• Material Handling: Detecting objects on conveyors

• OEM Equipment: Space-constrained sensing solutions

• Robotics: Integrated proximity sensing

Why Choose the 3RG4011-3AB00?

✅ Precise 2 mm sensing range in a slim M8 body
✅ Flush mount design for embedded applications
✅ PNP NO output integrates easily with PLCs
✅ Durable and IP67-rated for industrial use
✅ Reliable, high-speed switching

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
