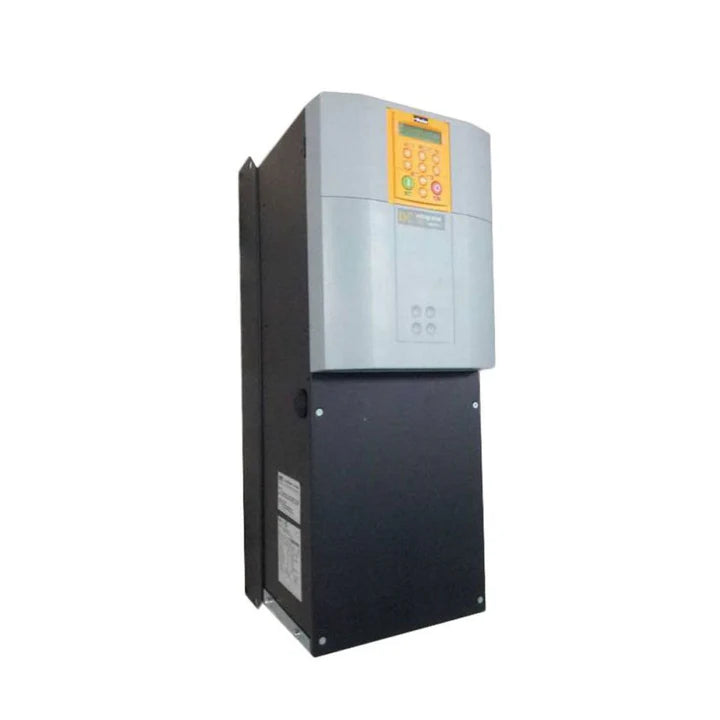

Parker 591P-53338042-A00-U4A0

Parker 591P-53338042 – Overview

The Parker 591P-53338042-A00-U4A0 is part of the DC591+ line, providing two-quadrant operation (forward and reverse motoring without regenerative braking). It is intended for applications needing bidirectional control but not energy return. With programmable I/O, feedback support, logic programming, and diagnostics, this unit adapts to complex industrial control systems.

Key Features

• Two-quadrant motor control: forward and reverse

• Programmable analog and digital I/O channels

• Support for feedback: encoder, tachogenerator, armature voltage

• Function block logic programming for automation

• Diagnostic monitoring and fault reporting

• Removable keypad for local adjustment and monitoring

• Modular design for panel or enclosure mounting

Technical Specifications

• Part Number: 591P-53338042-A00-U4A0

• Control Mode: 2-quadrant (non-regenerative)

• Input Voltage: 3-phase 220–500 VAC

• Rated Current: 380 A

• Analog Inputs: 5 configurable channels

• Analog Outputs: 3 (two configurable)

• Digital Inputs: 9 (programmable 24 V DC)

• Digital Outputs: 3 protected outputs

• Internal Reference Supplies: +10 V, –10 V, +24 V

• Overload Capability: ~150 % for short duration

• Operating Temperature: up to ~45 °C (frame and ventilation dependent)

• Mounting: modular chassis suitable for industrial installation

• Safety & Protection: requires enclosure and proper external fusing

Applications

• Industrial systems requiring bidirectional DC motor control without regeneration

• Machinery, conveyors, and processes with forward/reverse demands

• Retrofitting legacy DC units where energy recovery is not needed

• Automation applications needing programmable logic and feedback

• Environments requiring high-current, reliable motor control

Why Choose Parker 591P-53338042

• High current capacity for demanding motor loads

• Simple bidirectional control without complexity of regeneration

• Flexible I/O and feedback support for versatile system design

• Rugged and modular, built for industrial conditions

Order Now

The Parker 591P-53338042 DC591+ Speed Controller is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
