Parker 591C-2700-5-3-0-1-0-00

Parker 591C/2700/5/3/0/1/0/00 – Overview

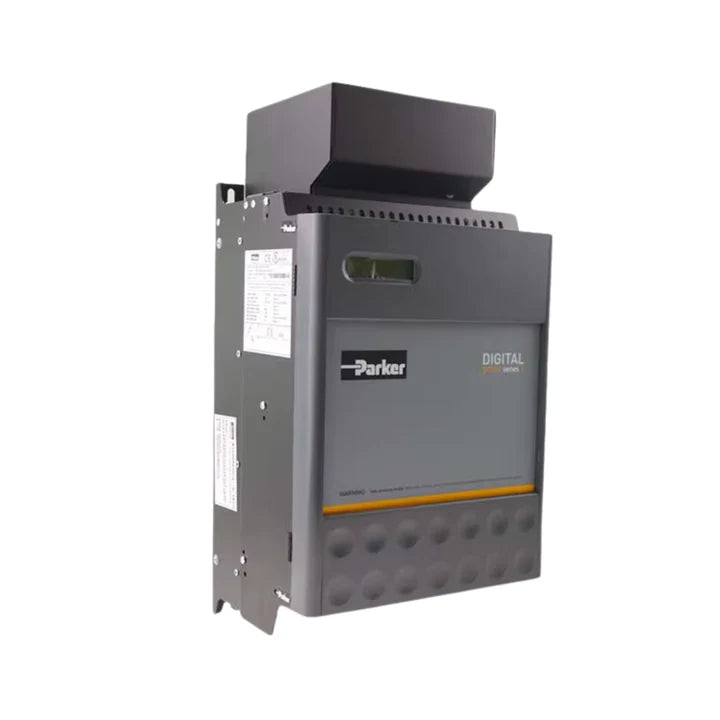

The Parker 591C/2700/5/3/0/1/0/00, also referenced as 591C-2700-5-3-0-1-0-00, is part of the SSD 591C series of two-quadrant DC drives. Rated at 270 A, it provides motoring and braking operation, ensuring reliable DC motor speed and torque control. Designed for a 380 V three-phase AC input with a 220 V auxiliary control supply, this drive supports motor outputs up to 110 kW (≈147 HP at 440 V DC). Its digital configuration, isolated I/O, and heavy-duty design make it a robust solution for high-power industrial applications.

Key Features

• Two-quadrant DC drive (motoring and braking)

• Rated 270 A for high-power DC applications

• Supports motor outputs up to 110 kW (≈147 HP at 440 V DC)

• Fully isolated, digital configuration

• Compatible with tachogenerator or AVF feedback

• Compact, panel-mount design for industrial use

• Equivalent to Eurotherm 591C drives

Technical Specifications

• Full Part Numbers: 591C/2700/5/3/0/1/0/00 and 591C-2700-5-3-0-1-0-00

• Input Voltage: 380 V AC, 3-phase ±10%, 50/60 Hz

• Input Current: 270 A

• Auxiliary Control Voltage: 220 V

• Typical Motor Output: up to 110 kW (≈147 HP at 440 V DC)

• Dimensions: 300 mm W × 210 mm D × 500 mm H

• Weight: 20 kg

• Heat Loss at Max Output: proportional to load (~650 W typical)

• Ambient Rating: 40 °C

• Mounting: Panel-mount with M6 fixings (400 × 200 mm centers)

• Ventilation: 150 mm clearance top, 100 mm bottom, 0 mm sides

• Terminals Include:
    – 5 analog inputs (4 configurable)
    – 3 analog outputs (2 configurable)
    – Tachogenerator input or AVF feedback
    – 10 digital inputs (5 configurable, 2 encoder capable)
    – 3 digital outputs (all configurable)
    – ±10 V reference for potentiometers

• Protection: IP00

Applications

• High-power DC motor control with braking

• Rolling mills, extruders, and conveyor systems

• Hoists, winders, and lifting equipment

• Replacement of Eurotherm SSD 591C drives

Why Choose Parker 591C/2700/5/3/0/1/0/00

• Heavy-duty two-quadrant control

• High current rating with reliable torque performance

• Fully digital and isolated I/O for flexible integration

• Proven replacement option for Eurotherm SSD drives

Order Now

The Parker 591C/2700/5/3/0/1/0/00 (591C-2700-5-3-0-1-0-00) is in stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
