Parker 514C-16-00-00-00

Parker 514C-16-00-00-00 – Overview

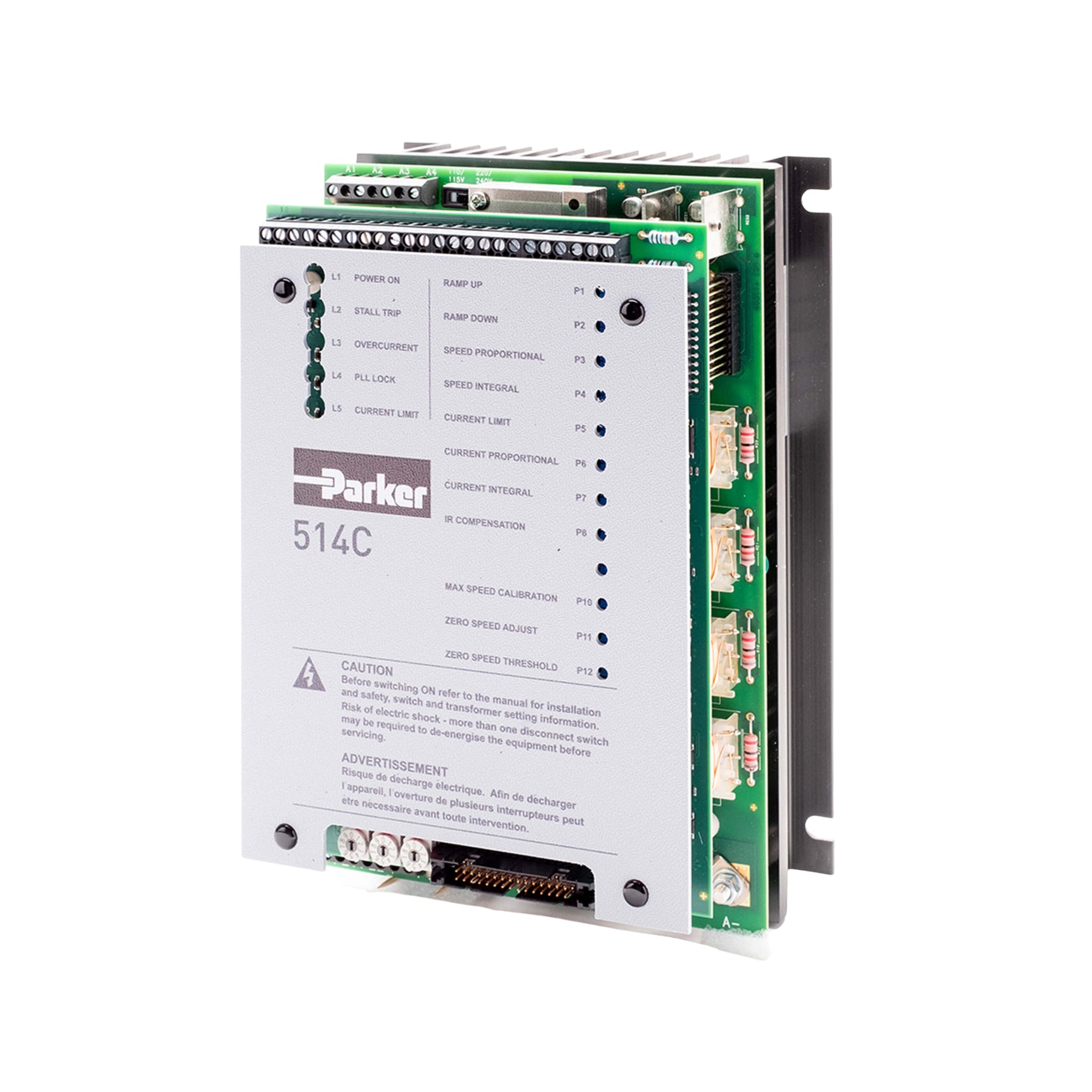

The Parker SSD 514C-16-00-00-00 is a 16 A, four-quadrant analog DC thyristor drive designed for 110 V, 230 V, or 400 V AC single- or two-phase input systems. It supports full motoring and regenerative braking in both directions and includes fully isolated signal interfaces for safe system integration. Its compact, panel-mount design makes it suitable for industrial, OEM, and retrofit applications.

Key Features

• Full four-quadrant operation (motoring and regenerative braking)

• Isolated analog and digital control signals

• Supports 110 V, 230 V, and 380–415 V AC input ranges

• Compact panel-mount form factor

• Integrated field bridge for motor field supply flexibility

• Feedback options: tachometer or armature voltage

• Overload capacity: 150% for 60 seconds

Technical Specifications

• Part Numbers:
    – 514C-16-00-00-00
    – 514C/16/00/00/00

• Output Current: 16 A continuous

• Input Supply Voltage:
    – 110/120 V AC, single or two-phase
    – 220/240 V AC, single or two-phase
    – 380–415 V AC, single or two-phase
    – 460/480 V AC, single or two-phase (±10%)

• Motor Power Output (Typical):
    – 400 V AC input: ~4.1 kW (5.5 HP) at 320 V DC
    – 230 V AC input: ~2.3 kW (3 HP) at 180 V DC
    – 110 V AC input: ~1.2 kW (1.5 HP) at 90 V DC

• Feedback Options: Tachometer or armature voltage feedback

• Control Inputs / Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (ramp, total setpoint, actual speed, current)
    – 2 × digital outputs (drive health, zero speed/setpoint)
    – ±10 V reference signal supplies

• Overload Rating: 150% for 60 seconds

• Field Bridge: Dedicated AC input for motor field supply

• Physical Size: 160 mm (W) × 130 mm (D) × 240 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection, 75 mm clearance above and below

• Ambient Temperature: Rated for 0–40 °C

• Other Specs:
    – Input current ~24 A
    – Heat loss at full load ~75 W

Applications

• Machine tools, spindles, and dynamic drives

• Winders, reelers, and tension control systems

• Systems requiring precise braking and regeneration

• Retrofit of legacy DC drives in industrial settings

Why Choose Parker 514C-16-00-00-00

• Full four-quadrant regenerative control for energy recovery and smooth braking

• Isolated signal interfaces for safe integration

• Multi-voltage compatibility for global use

• Compact design suited for industrial panels

• Solid, proven performance from the Parker SSD series

Order Now

The Parker 514C-16-00-00-00 SSD 514C analog DC drive is in stock and ready for worldwide shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
