Parker 514C-08-00-00-00

Parker 514C-08-00-00-00 – Overview

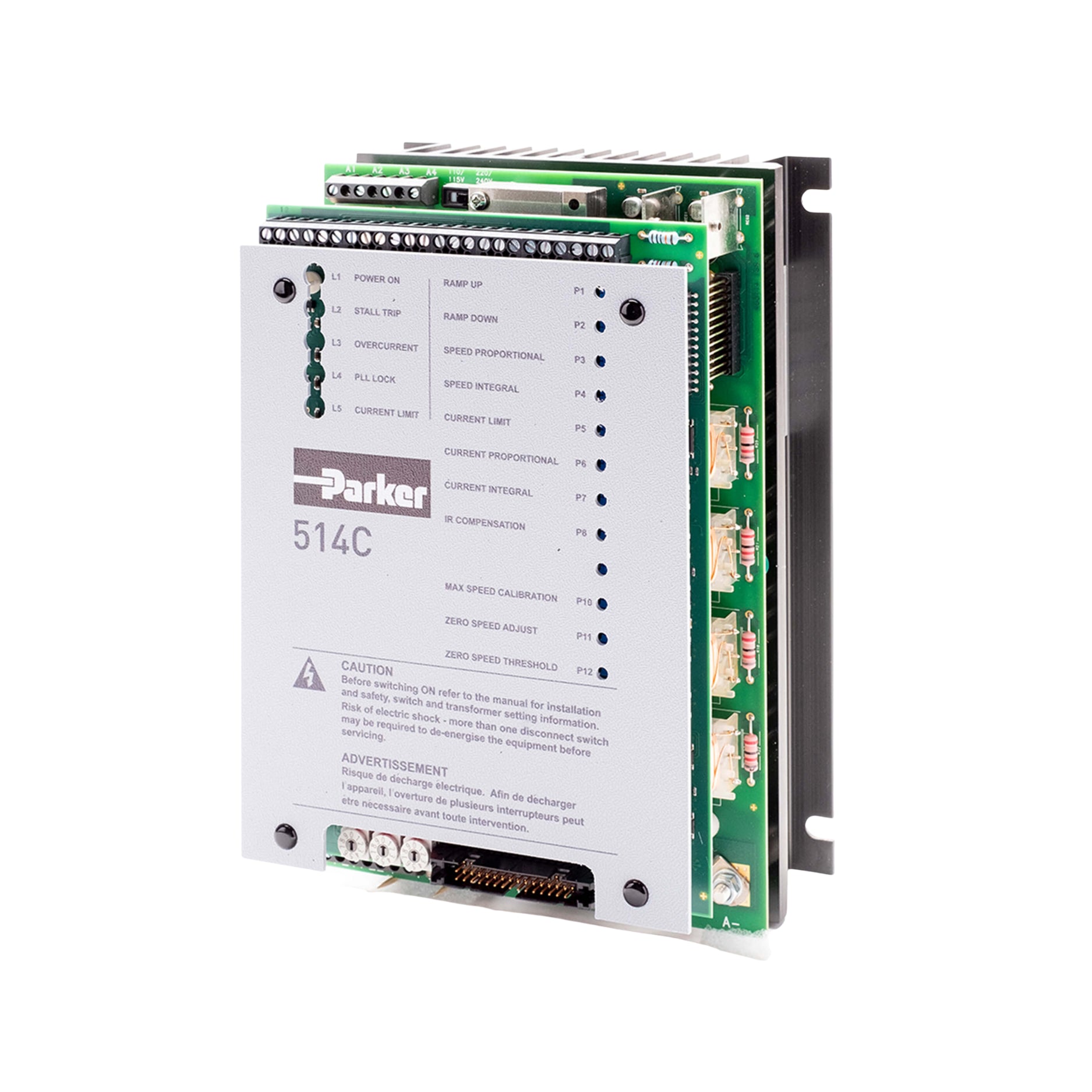

The Parker SSD 514C-08-00-00-00 is an 8 A, four-quadrant analog DC thyristor drive designed for 110 V, 230 V, or 400 V AC single- or two-phase inputs. It provides full motoring and regenerative braking in both directions, making it ideal for applications requiring precise control, energy recovery, and smooth handling of overhauling loads.

Key Features

• Four-quadrant (motoring and regenerative braking) operation

• Isolated analog and digital signals for safe integration

• Supports multiple AC supply voltages (110 V, 230 V, 400 V, 460 V)

• Integrated field bridge for flexible motor field supply

• Compact panel-mount construction with standard fixings

• Feedback options include tachometer or armature voltage

• Overload capacity of 150% for 60 seconds

Technical Specifications

• Part Numbers:
    – 514C-08-00-00-00
    – 514C/08/00/00/00

• Output Current: 8 A continuous

• Input Supply Voltage:
    – 110/120 V AC, single or two-phase
    – 220/240 V AC, single or two-phase
    – 380–415 V AC, single or two-phase
    – 460/480 V AC, single or two-phase (±10%)

• Motor Power Output:
    – 400 V AC supply: approx. 2.2 kW (3 HP) at 320 V DC
    – 230 V AC supply: approx. 1.1 kW (1.5 HP) at 180 V DC
    – 110 V AC supply: approx. 0.55 kW (0.75 HP) at 90 V DC

• Feedback Options: Tachometer or armature voltage

• Control Inputs/Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (ramp, setpoint, speed, current)
    – 2 × digital outputs (health, zero speed/setpoint)
    – ±10 V reference supply

• Overload Rating: 150% for 60 seconds

• Field Bridge: Separate AC input for motor field

• Physical Size: 160 mm (W) × 130 mm (D) × 240 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection, with 75 mm clearance above and below

• Ambient Temperature: Rated at 0–40 °C

Applications

• Winders, unwinders, and reelers

• Machine tools with dynamic spindles

• Wire drawing and extrusion processes

• General DC motor control requiring regenerative capability

Why Choose Parker 514C-08-00-00-00

• Full four-quadrant regenerative control

• Compact and robust for industrial use

• Multi-voltage global compatibility

• Parker SSD reliability and performance

Order Now

The Parker 514C-08-00-00-00 SSD 514C analog DC drive is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
