Parker 514C-04-00-00-00

Parker 514C-04-00-00-00 – Overview

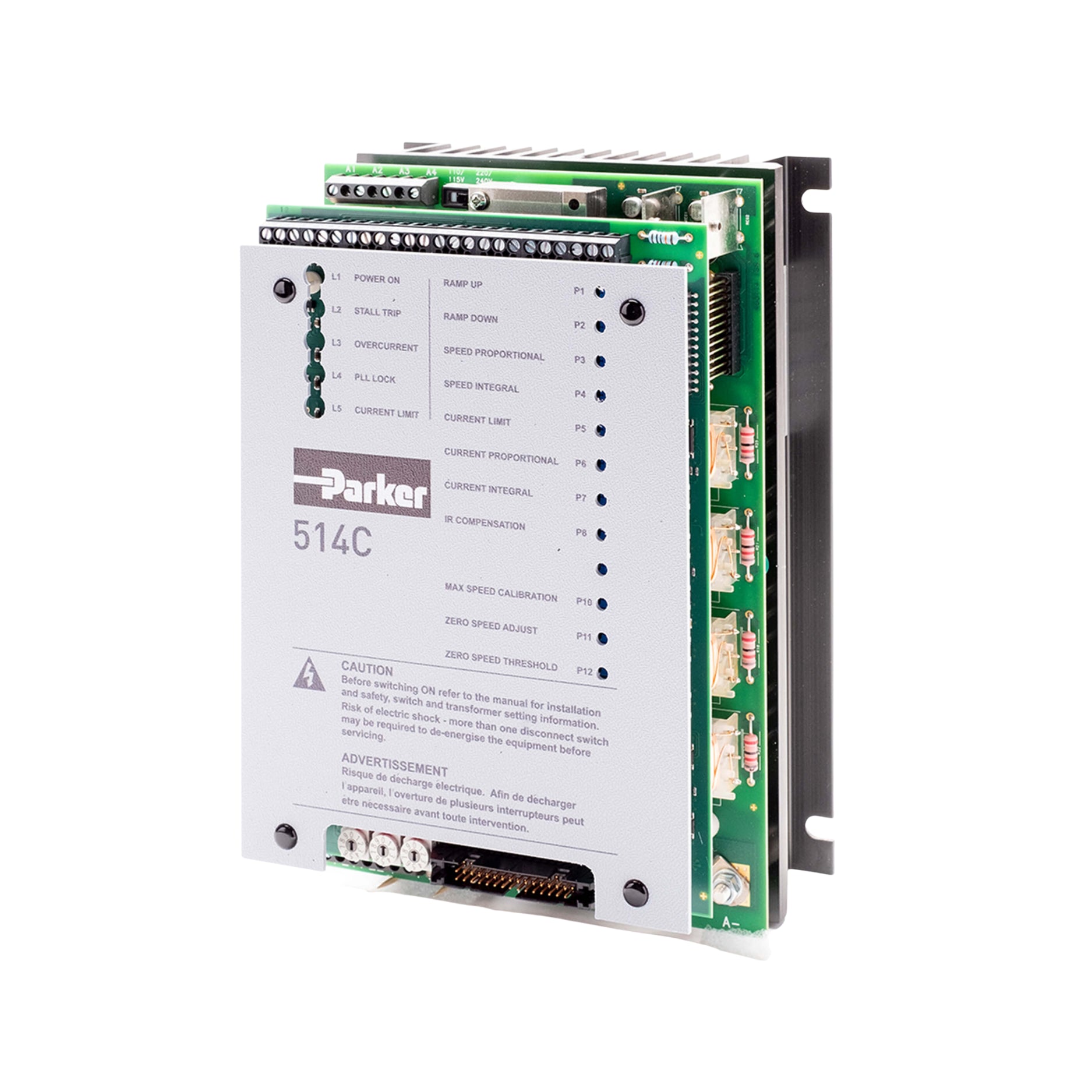

The Parker SSD 514C-04-00-00-00 is a 4 A, four-quadrant analog DC thyristor drive designed for 110 V, 230 V, or 400 V AC single- or two-phase inputs. Offering regenerative capability, it enables both motoring and braking in forward and reverse directions. With isolated signals and flexible feedback, it is a compact, safe, and versatile choice for precision DC motor control.

Key Features

• Four-quadrant (motoring and regenerative braking) control

• Fully isolated control circuits for safe integration

• Multi-voltage AC supply (110 V, 230 V, 400 V, 460 V)

• Compact panel-mount design

• Integrated field bridge for motor field supply

• Flexible feedback: tachometer or armature voltage

• Overload capacity: 150% for 60 seconds

Technical Specifications

• Part Numbers:
    – 514C-04-00-00-00
    – 514C/04/00/00/00

• Output Current: 4 A continuous

• Input Supply Voltage:
    – 110/120 V AC, single or two-phase
    – 220/240 V AC, single or two-phase
    – 380–415 V AC, single or two-phase
    – 460/480 V AC, single or two-phase (±10%)

• Motor Power Output:
    – 400 V AC supply: approx. 1.0 kW (1.4 HP) at 320 V DC
    – 230 V AC supply: approx. 0.55 kW (0.75 HP) at 180 V DC
    – 110 V AC supply: approx. 0.3 kW (0.4 HP) at 90 V DC

• Feedback Options: Tachometer or armature voltage feedback

• Control Inputs/Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (ramp, setpoint, speed, current)
    – 2 × digital outputs (health, zero speed/setpoint)
    – ±10 V reference supply

• Overload Rating: 150% for 60 seconds

• Field Bridge: Separate AC input for motor field

• Physical Size: 160 mm (W) × 130 mm (D) × 240 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection with 75 mm clearance above/below

• Ambient Temperature: Rated at 0–40 °C

Applications

• Small conveyors, fans, and pumps

• Machine tools with light-duty spindles

• Laboratory and test bench DC motor setups

• OEM equipment needing compact regenerative drives

Why Choose Parker 514C-04-00-00-00

• Four-quadrant regenerative capability for efficient braking

• Compact and versatile for small-scale DC applications

• Global voltage compatibility

• Parker SSD proven reliability

Order Now

The Parker 514C-04-00-00-00 SSD 514C analog DC drive is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
