Parker 512C-32-00-00-00

Parker 512C-32-00-00-00 – Overview

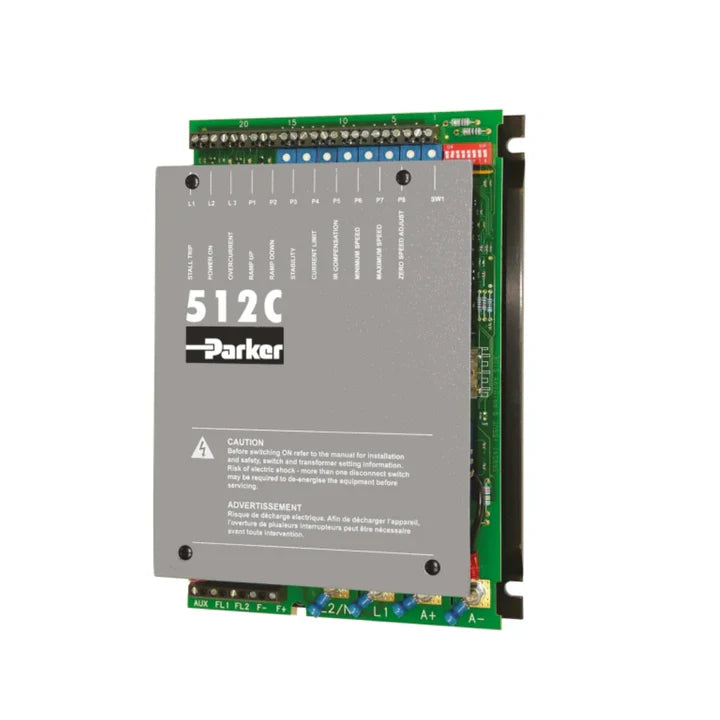

The Parker SSD 512C-32-00-00-00 is a 32 A, single-quadrant analog DC thyristor drive designed to run from 110 V, 230 V, or 400 V AC single- or two-phase inputs. It provides isolated signal interfaces, versatile control options, and reliable DC motor performance for demanding industrial applications. Its compact, panel-mount design makes it a strong choice for both new systems and retrofit projects.

Key Features

• Single-quadrant (forward) DC motor control

• Fully isolated inputs and outputs for safe integration

• Multi-voltage AC input support (110 V, 230 V, 400 V, 460 V)

• Integrated field bridge for motor excitation

• Compact panel-mount format with standard fixings

• Wide analog and digital I/O for flexible control

• Overload capability: 150% for 60 seconds

Technical Specifications

• Part Numbers:
    – 512C-32-00-00-00
    – 512C/32/00/00/00

• Output Current: 32 A continuous

• Input Supply Voltage:
    – 110/120 V AC, single or two-phase
    – 220/240 V AC, single or two-phase
    – 380–415 V AC, single or two-phase
    – 460/480 V AC, single or two-phase (±10%)

• Motor Power Output:
    – 400 V AC supply: approx. 7.5 kW (10 HP) at 320 V DC
    – 230 V AC supply: approx. 3.7 kW (5 HP) at 180 V DC
    – 110 V AC supply: approx. 1.8 kW (2.5 HP) at 90 V DC

• Feedback Options: Tachometer or armature voltage feedback

• Control Inputs/Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (ramp, setpoint, speed, current)
    – 2 × digital outputs (health, zero speed/setpoint)
    – ±10 V reference supply

• Overload Rating: 150% for 60 seconds

• Field Bridge: Separate AC input for motor field flexibility

• Physical Size: 200 mm (W) × 120 mm (D) × 270 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection with required clearances

• Ambient Temperature: Rated at 40 °C

Applications

• Heavy-duty conveyors, pumps, and fans

• High-power industrial DC motor machinery

• OEM applications requiring reliable DC drives

• Retrofit of medium to large legacy DC drive systems

Why Choose Parker 512C-32-00-00-00

• Reliable Parker SSD performance for demanding loads

• Multi-voltage compatibility for international use

• Isolated controls ensure safe integration

• Compact and robust design for industrial settings

Order Now

The Parker 512C-32-00-00-00 SSD 512C analog DC drive is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
