Parker 512C-16-00-00-00

Parker 512C-16-00-00-00 – Overview

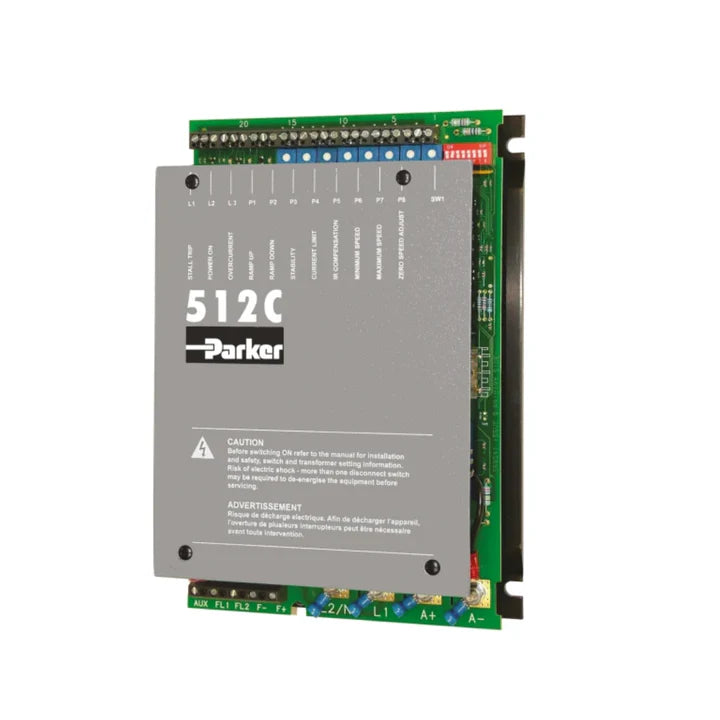

The Parker SSD 512C-16-00-00-00 is a 16 A, single-quadrant analog DC thyristor drive designed for 110 V, 230 V, or 400 V AC single or two-phase inputs. It features isolated control circuits for safe integration, flexible feedback options, and a compact form factor suitable for both OEM installations and retrofit applications.

Key Features

• Single-quadrant (forward) DC motor control

• Fully isolated control inputs and outputs

• Supports 110 V, 230 V, and 380–415 V AC supplies

• Panel-mount compact design

• Integrated field bridge for motor field supply

• Multiple analog and digital I/O options

• Overload capacity: 150% for 60 seconds

Technical Specifications

• Part Numbers:
    – 512C-16-00-00-00
    – 512C/16/00/00/00

• Output Current: 16 A continuous

• Input Supply Voltage:
    – 110/120 V AC, single or two-phase
    – 220/240 V AC, single or two-phase
    – 380–415 V AC, single or two-phase
    – 460/480 V AC, single or two-phase (±10%)

• Motor Power Output:
    – 400 V AC supply: approx. 3.7 kW (5 HP) at 320 V DC
    – 230 V AC supply: approx. 1.8 kW (2.5 HP) at 180 V DC
    – 110 V AC supply: approx. 0.9 kW (1.2 HP) at 90 V DC

• Feedback Options: Tachometer or armature voltage feedback

• Control Inputs/Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (ramp, setpoint, speed, current)
    – 2 × digital outputs (health, zero speed/setpoint)
    – ±10 V reference supply

• Overload Rating: 150% for 60 seconds

• Field Bridge: Separate AC input for motor field flexibility

• Physical Size: 160 mm (W) × 90 mm (D) × 240 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection, 75 mm clearance above/below

• Ambient Temperature: Rated at 40 °C

Applications

• Conveyors, pumps, and fans

• Industrial DC machinery

• OEM equipment with DC motors

• Retrofit of legacy DC drive systems

Why Choose Parker 512C-16-00-00-00

• Trusted Parker SSD design and durability

• Global multi-voltage compatibility

• Isolated I/O for safer integration

• Compact form factor for easy installation

Order Now

The Parker 512C-16-00-00-00 SSD 512C analog DC drive is in stock and ready to ship worldwide.
