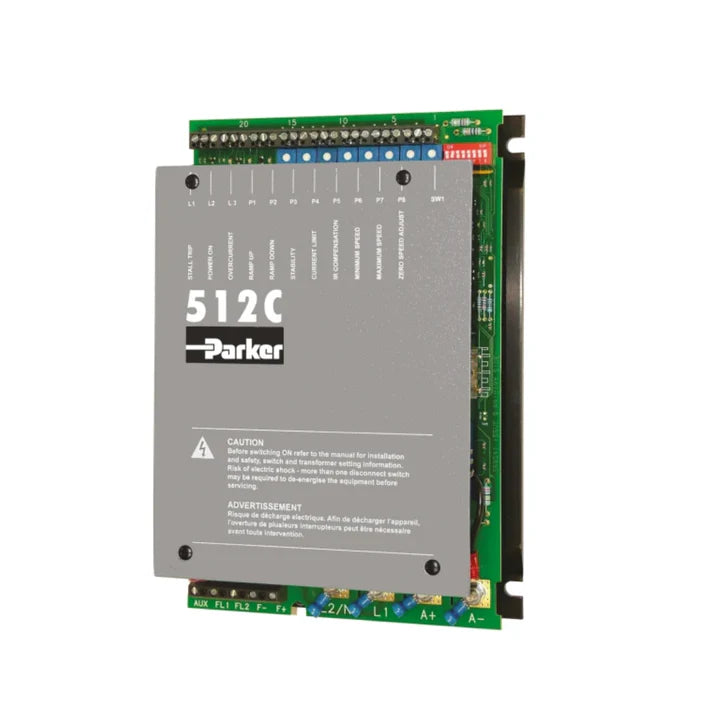

Parker 512C-08-00-00-00

Parker 512C-08-00-00-00 – Overview

The Parker SSD 512C-08-00-00-00 is an 8 A, single-quadrant analog DC thyristor drive designed for 110 V, 230 V, or 400 V AC single or two-phase inputs. With fully isolated signal interfaces and flexible feedback options, this compact drive ensures safe and precise DC motor control in industrial applications.

Its straightforward setup, compact design, and multi-voltage compatibility make it ideal for OEM use and retrofitting older DC systems.

Key Features

• Single-quadrant (forward) DC motor control

• Isolated analog and digital signals for safe system integration

• Multi-voltage AC supply support (110 V, 230 V, 400 V)

• Integrated field bridge for motor field supply options

• Compact panel-mount design with standard fixings

• Multiple I/O for versatile control applications

Technical Specifications

• Part Numbers:
    – 512C-08-00-00-00
    – 512C/08/00/00/00

• Output Current: 8 A continuous

• Input Supply Voltage:
    – 110/120 V AC single/two-phase
    – 220/240 V AC single/two-phase
    – 380/415 V AC single/two-phase
    – 460/480 V AC single/two-phase (±10%)

• Motor Power Output:
    – 400 V AC supply: 2.2 kW (3.0 HP) at 320 V DC
    – 230 V AC supply: 1.1 kW (1.5 HP) at 180 V DC
    – 110 V AC supply: 0.55 kW (0.75 HP) at 90 V DC

• Feedback Options: Tachometer input or internal AVF

• Control Inputs/Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (Ramp, Total Setpoint, Actual Speed, Current)
    – 2 × digital outputs (Health and Zero Speed/Setpoint)
    – ±10 V reference supply for potentiometers

• Input Current: 12 A

• Field Bridge: Separate AC input for motor field flexibility

• Physical Size: 160 mm (W) × 90 mm (D) × 240 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection, 75 mm clearance above/below

• Ambient Temperature: Rated at 40 °C

Applications

• Fans, pumps, and conveyors

• Industrial DC motor machinery

• OEM equipment requiring compact DC drive solutions

• Retrofit and replacement of legacy DC drives

Why Choose Parker 512C-08-00-00-00

• Trusted Parker SSD build quality

• Isolated inputs and outputs for safer integration

• Multi-voltage support for global installations

• Compact, space-saving design

Order Now

The Parker 512C-08-00-00-00 SSD 512C analog DC drive is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
