Parker 512C-04-00-00-00

Parker 512C-04-00-00-00 – Overview

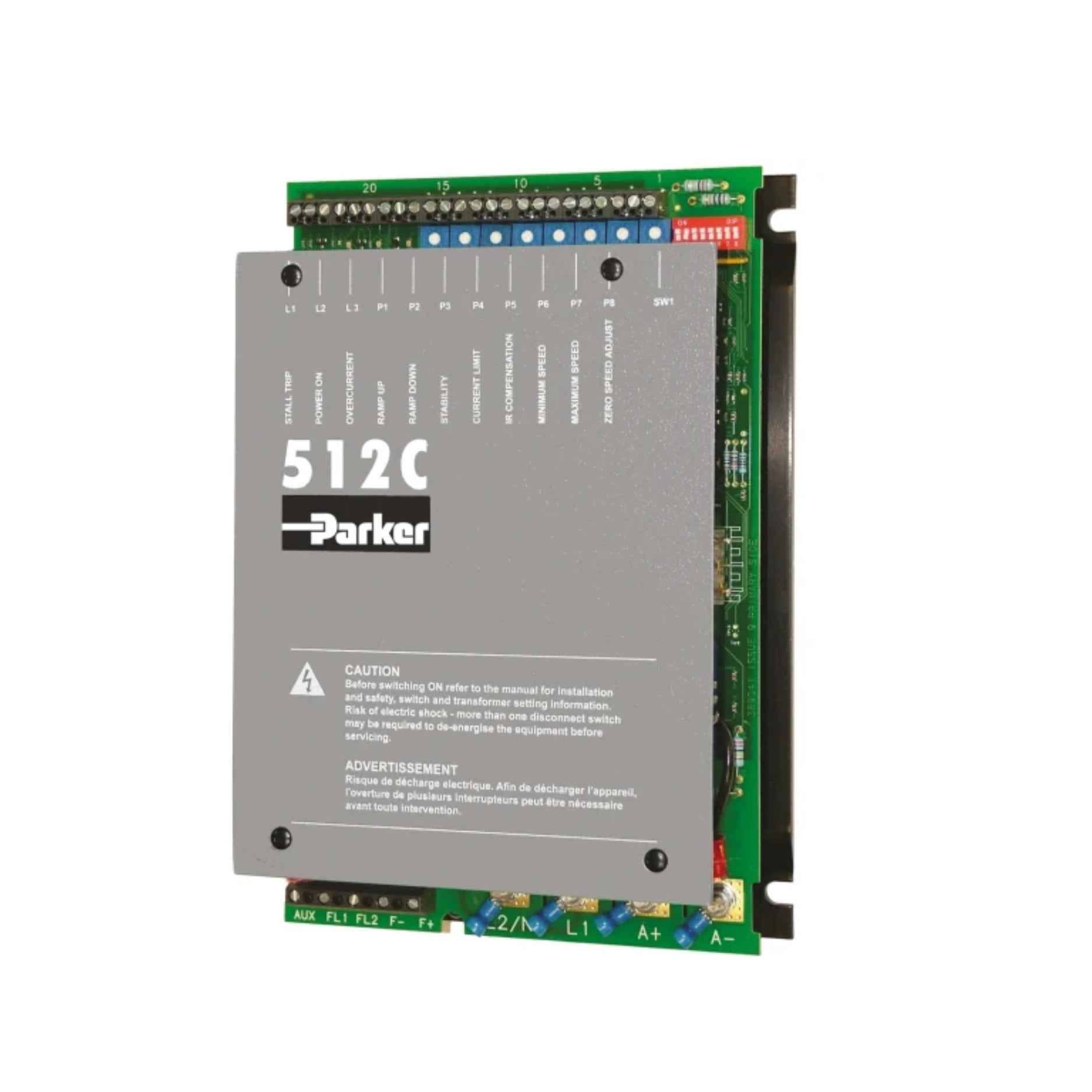

The Parker SSD 512C-04-00-00-00 is a 4 A, single-quadrant analog DC thyristor drive designed for 110 V, 230 V, or 400 V AC single or two-phase inputs. It provides isolated signal interfaces for enhanced safety and versatility, making it suitable for a wide range of DC motor control applications.

Compact, reliable, and easy to configure, the 512C offers robust performance for both OEM installations and retrofit projects.

Key Features

• Single-quadrant (forward) DC motor control

• Fully-isolated signal interface for safe integration

• Multi-voltage supply support (110 V, 230 V, 400 V AC)

• Compact panel-mount design with standard fixings

• Integrated field bridge with flexible supply options

• Multiple analog and digital I/O for versatile control

Technical Specifications

• Part Numbers:
    – 512C-04-00-00-00
    – 512C/04/00/00/00

• Output Current: 4 A continuous

• Input Supply Voltage:
    – 110/120 V AC single/two-phase
    – 220/240 V AC single/two-phase
    – 380/415 V AC single/two-phase
    – 460/480 V AC single/two-phase (±10%)

• Motor Power Output:
    – 400 V AC supply: 1.0 kW (1.4 HP) at 320 V DC
    – 230 V AC supply: 0.55 kW (0.75 HP) at 180 V DC
    – 110 V AC supply: 0.3 kW (0.4 HP) at 90 V DC

• Feedback Options: Tachometer input or internal AVF

• Control Inputs/Outputs:
    – 2 × analog setpoint inputs
    – Current limit input
    – 4 × analog outputs (Ramp, Total Setpoint, Actual Speed, Current)
    – 2 × digital outputs (Health and Zero Speed/Setpoint)
    – ±10 V reference supply for potentiometers

• Input Current: 6 A

• Field Bridge: Separate AC input for motor field flexibility

• Physical Size: 160 mm (W) × 90 mm (D) × 240 mm (H)

• Mounting: Panel mount with fixings on 253 × 120 mm centres

• Cooling: Natural convection, 75 mm clearance above/below

• Ambient Temperature: Rated at 40 °C

Applications

• Industrial machinery with DC motors

• Fans, pumps, and conveyors

• OEM equipment requiring compact DC control

• Retrofit of legacy DC drives with isolated signal needs

Why Choose Parker 512C-04-00-00-00

• Proven Parker SSD reliability

• Multi-voltage compatibility for global applications

• Isolated signals for safe integration with control systems

• Compact design for space-constrained installations

Order Now

The Parker 512C-04-00-00-00 SSD 512C analog DC drive is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
