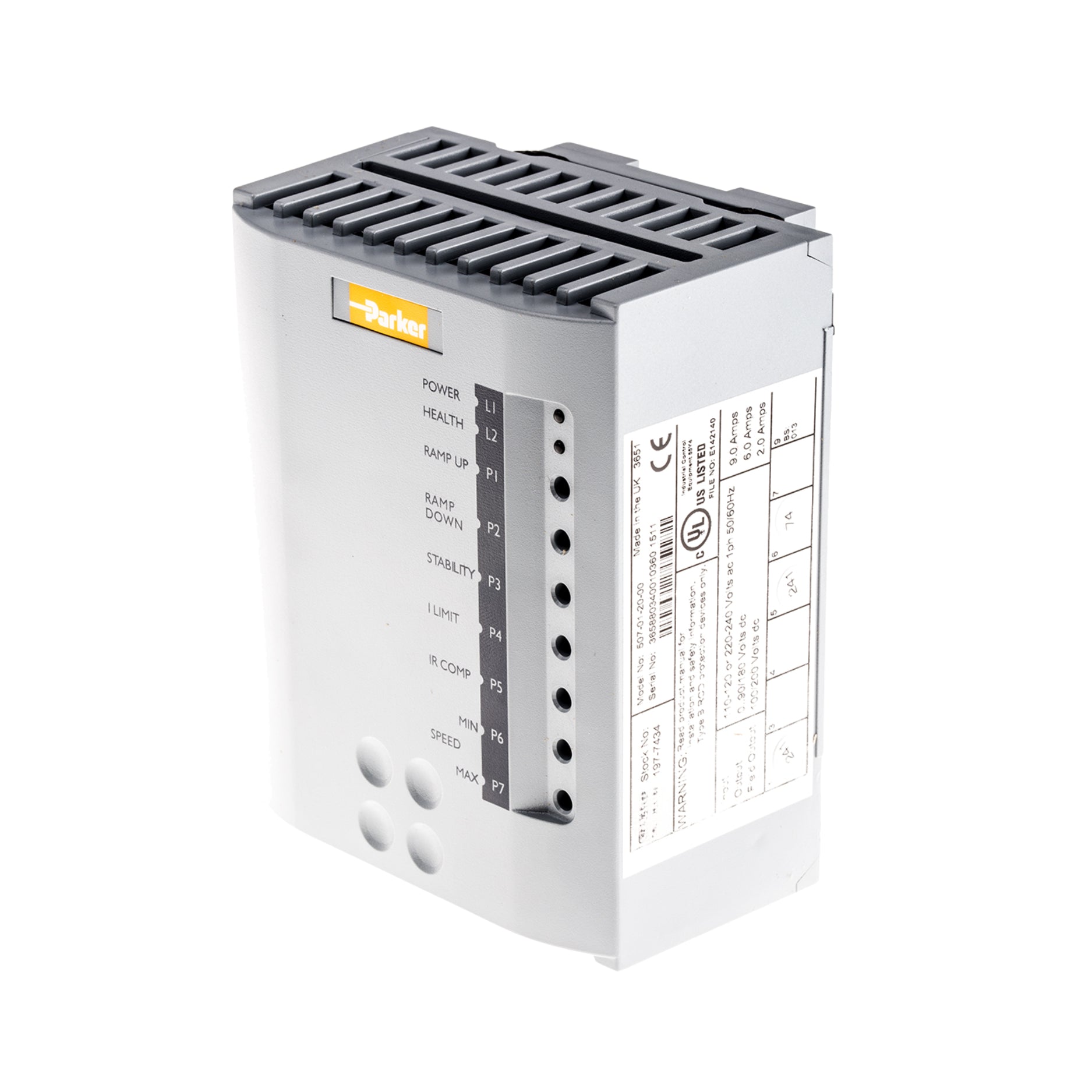

Parker 507-00-20-00

Parker 507-00-20-00 – Overview

The Parker SSD 507-00-20-00 is a 6 A, single-phase, 1-quadrant analog DC thyristor drive, designed for use with 230 V or 110 V AC inputs. This non-isolated unit offers reliable and cost-effective speed and torque control for small DC motors, making it an excellent choice for OEM and retrofit applications.

With compact dimensions and a simple analog setup, the SSD 507 drive is easy to integrate into existing systems and provides stable, efficient operation.

Key Features

• 1-quadrant (forward) DC motor control

• Non-isolated analog design

• Input supply: 110 V or 230 V single-phase AC

• Continuous output: 6 A (up to 9 A depending on motor inductance)

• Selectable feedback: tachometer or armature voltage

• DIN-rail or panel mount installation

• Compact and cost-effective for light-duty applications

Technical Specifications

• Part Numbers:
    – 507-00-20-00
    – 507/00/20/00

• Continuous Output Current: 6 A (up to 9 A depending on motor inductance)

• Input Supply Voltage: 110 V or 230 V AC ±10% at 50/60 Hz

• Motor Power Output:
    – 230 V AC supply: 0.9 kW (1.2 HP) from 180 V DC
    – 110 V AC supply: 0.43 kW (0.6 HP) from 90 V DC

• Feedback Options: Tachometer input or armature voltage feedback

• Control Inputs/Outputs:
    – Speed setpoint input
    – Current limit input (0–10 V = 0–100% after preset limit)
    – Run input / Zero speed trim
    – Auxiliary I/O (Zero speed, Health outputs, extra setpoints)
    – +10 V reference output for potentiometer

• Physical Size: 105 mm (W) × 80 mm (D) × 140 mm (H)

• Mounting: DIN-rail or panel mount with 3 screws

• Cooling: Natural convection, with 50 mm clearance above/below

• Heat Dissipation: 20 W at maximum output

• Ambient Temperature: Rated at 40 °C

Applications

• Small motor drives in light industrial equipment

• Fans, pumps, and small conveyors

• OEM systems requiring low-power DC motor control

• Retrofits for older analog DC drives

Why Choose Parker 507-00-20-00

• Flexible operation on 110 V or 230 V supply

• Reliable analog design, easy to configure

• Cost-effective solution for compact installations

• Proven Parker SSD performance and durability

Order Now

The Parker 507-00-20-00 SSD 507 analog DC drive is in stock and available for worldwide shipping.
