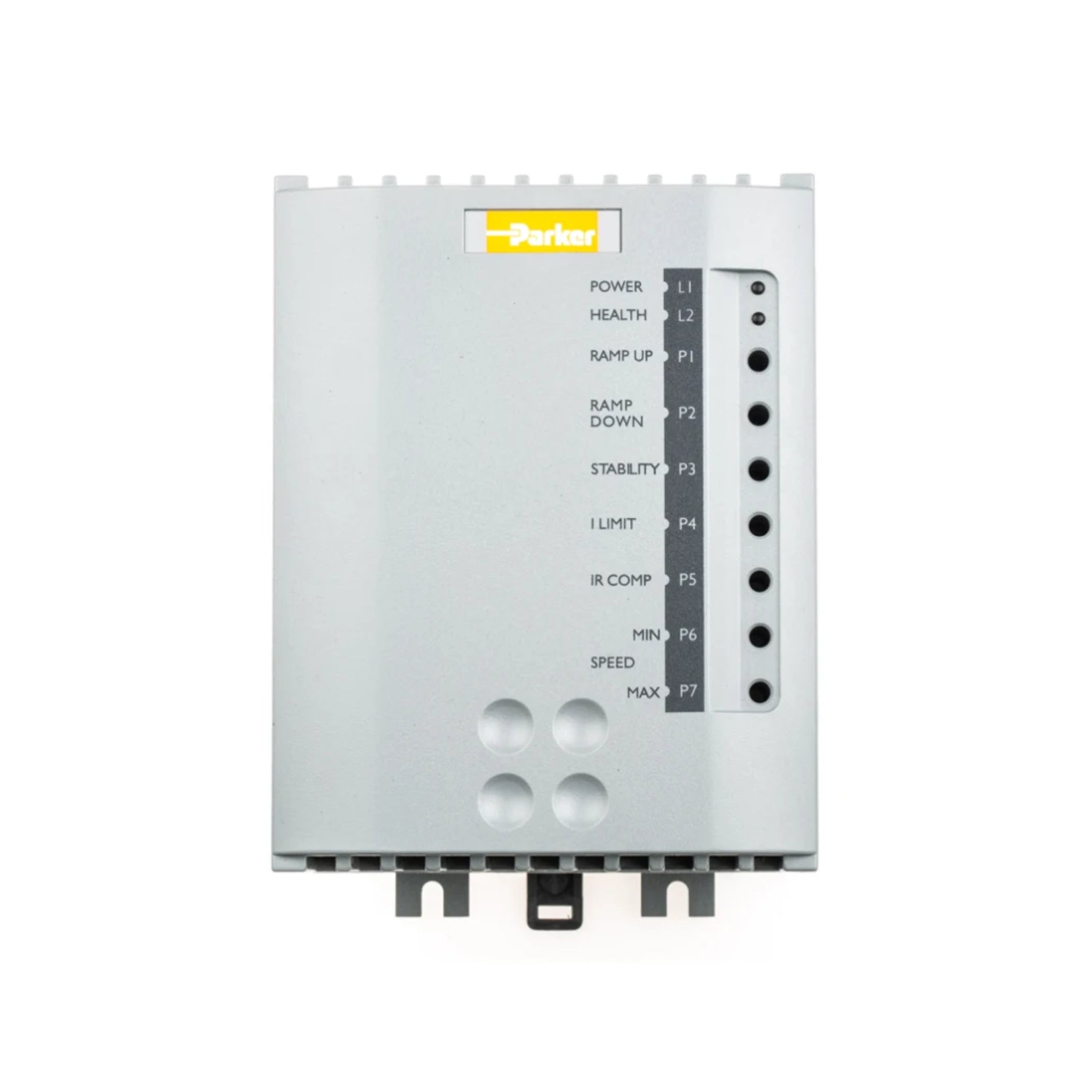

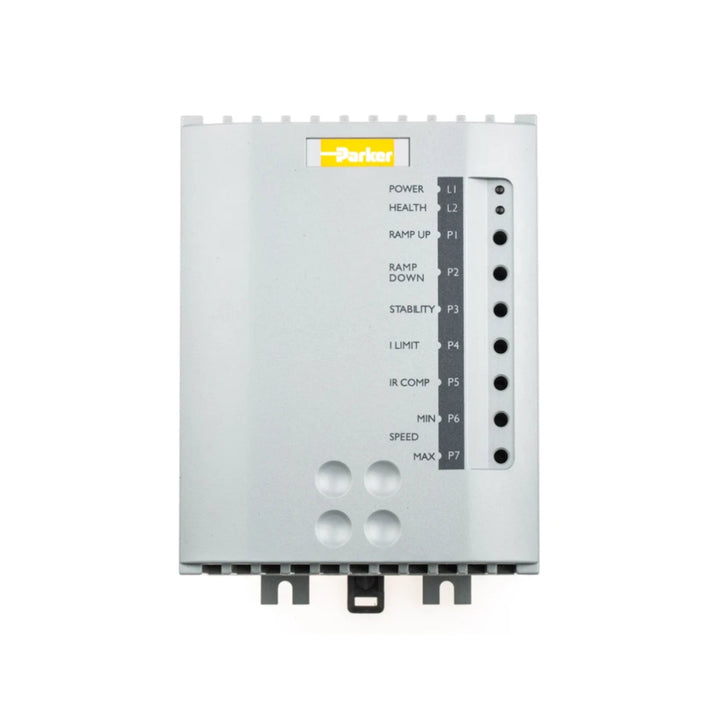

Parker 506-00-20-00

Parker 506-00-20-00 – Overview

The Parker 506-00-20-00 (also known under the SSD 506 series) is a single-phase, analog, 1-quadrant DC drive designed for simple speed or torque control of DC motors. Rated at 3 A and compatible with either 110 V or 230 V supplies, it's ideal for lower-power applications like fans, pumps, and conveyors. This unit provides a compact footprint with selectable feedback options and a minimum cost of ownership for basic DC motor control needs.

Key Features

• 1-quadrant (forward direction) DC drive

• Selectable supply voltage: 110 VAC or 230 VAC

• Analog control (voltage or current input)

• Feedback via tachometer or armature voltage

• Compact, DIN-style housing with IP20 cover

• Ideal for OEM and retrofit applications

• Simple and cost-effective control solution

Technical Specifications

• Model / Part Number: 506-00-20-00

• Continuous Output Current: 3 A

• Supply Voltage: 110 VAC or 230 VAC (selectable)

• Control Mode: 1-quadrant (no reverse)

• Feedback Inputs: Tachometer or internal armature voltage

• Dimensions: approx. 80 × 105 × 140 mm

• Protection: IP20 covers

• Ambient Temperature: 0 °C to 45 °C

• Weight: ~1.3 kg

• Terminals / Interface:
    – Analog control input (voltage/current)
    – Feedback input for tachometer or AVF
    – Supply input terminals
    – Output to motor (armature)

• Standards Compliance: CE (Low Voltage, EMC), UL / C22.2

Applications

• Small DC motor drives in OEM equipment

• Fans, blowers, pumps with simple speed control

• Light-duty conveyor or packaging machinery

• Replacement or retrofit for analog DC systems

Why Choose Parker 506-00-20-00

• Very compact and cost-effective for low-current DC control

• Flexible supply voltage selection gives application versatility

• Simple analog scheme without need for complex programming

• Compatible with legacy DC installations

Order Now

The Parker 506-00-20-00 SSD 506 analog DC drive is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
