Parker 591P-53327032-P41-U4A0

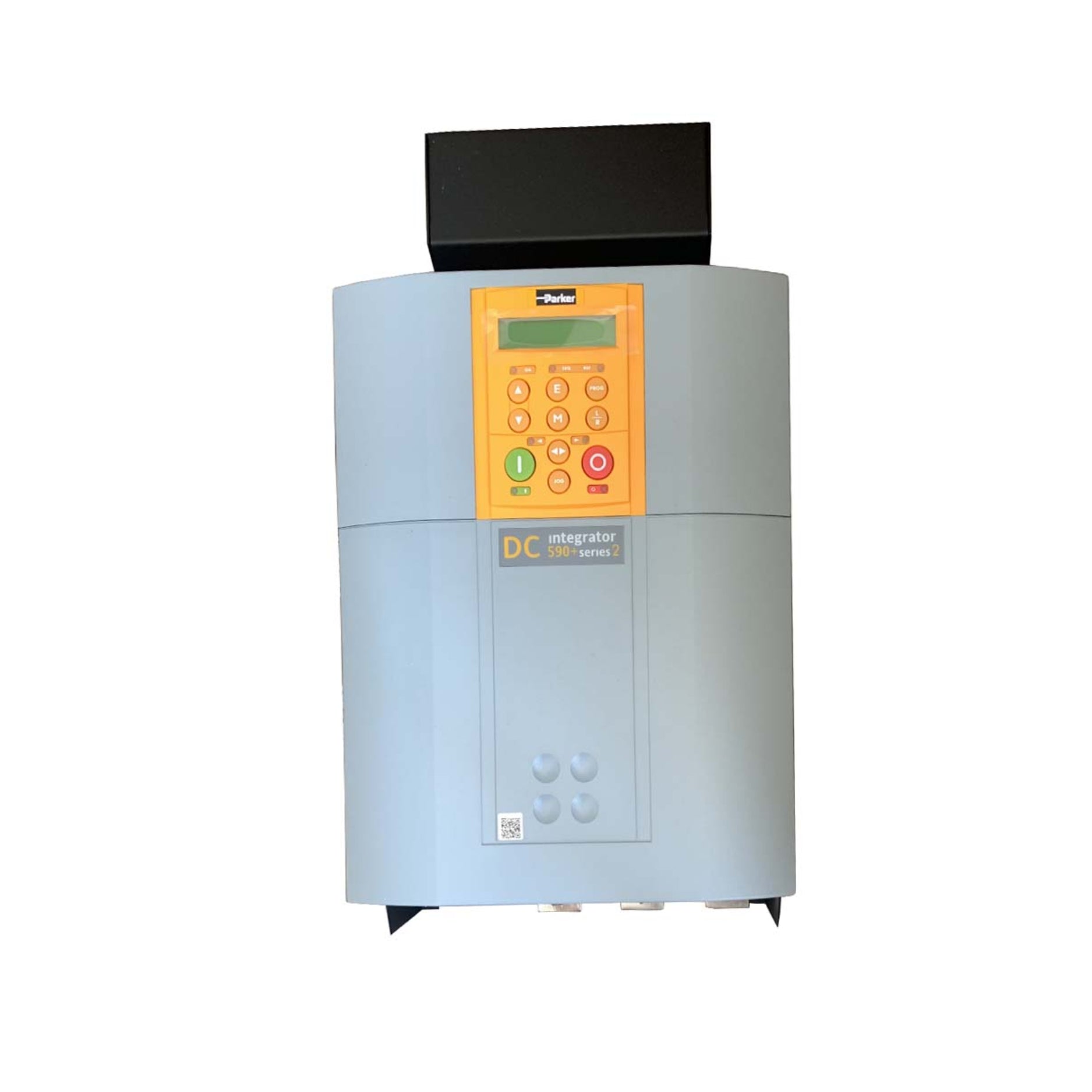

Parker 591P-53327032-P41-U4A0 – Overview

The Parker 591P-53327032-P41-U4A0 is a two-quadrant DC drive (forward and reverse operation, no regenerative braking) from the DC591+ series. Designed for systems that require directional control without regeneration, this model features enhanced I/O thanks to the “P41” module. It includes support for feedback signals, configurable logic, diagnostics, and a modular housing ideal for industrial environments.

Key Features

• Two-quadrant operation: forward / reverse motoring (non-regenerative)

• Enhanced I/O expansion via P41 option for complex control requirements

• Programmable analog and digital input/output channels

• Supports feedback: encoder, tachogenerator, armature voltage

• Function block programming for custom logic

• Diagnostic features and status feedback

• Removable keypad for local access

• Modular chassis for panel mounting

Technical Specifications

• Part Number: 591P-53327032-P41-U4A0

• Input: 3-phase 220–500 VAC

• Rated Current: 270 A

• Control Mode: 2-quadrant (no regeneration)

• Analog Inputs: 5 (programmable)

• Analog Outputs: 3 (two user-configurable)

• Digital Inputs: 9 (programmable 24 V DC)

• Digital Outputs: 3 (protected)

• Internal References: +10 V, –10 V, +24 V

• Overload: typically ~150 % for brief periods

• Operating Temp: up to ~45 °C (frame-dependent)

• Mounting: modular chassis

• Safety: external fusing and suitable enclosure required

Applications

• Industrial motor systems requiring directional control but no regeneration

• Conveyors, lifts, machines with forward/reverse demands

• Retrofitting legacy DC systems where energy recovery is not needed

• Automation systems requiring advanced I/O and logic

• Environments that demand robust, high-current control

Why Choose Parker 591P-53327032-P41-U4A0

• High current capability with forward/reverse performance

• P41 module adds extra I/O flexibility

• Matches DC591+ architecture for seamless system design

• Built for reliability in demanding industrial settings

Order Now

The Parker 591P-53327032-P41-U4A0 DC591+ Speed Controller is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
