Panasonic PM-K65 | Compact U-Shaped Photoelectric Sensor, 6 mm

Panasonic PM-K65 | Micro Through-Beam Sensor with 6 mm Slot – NPN Output

Overview

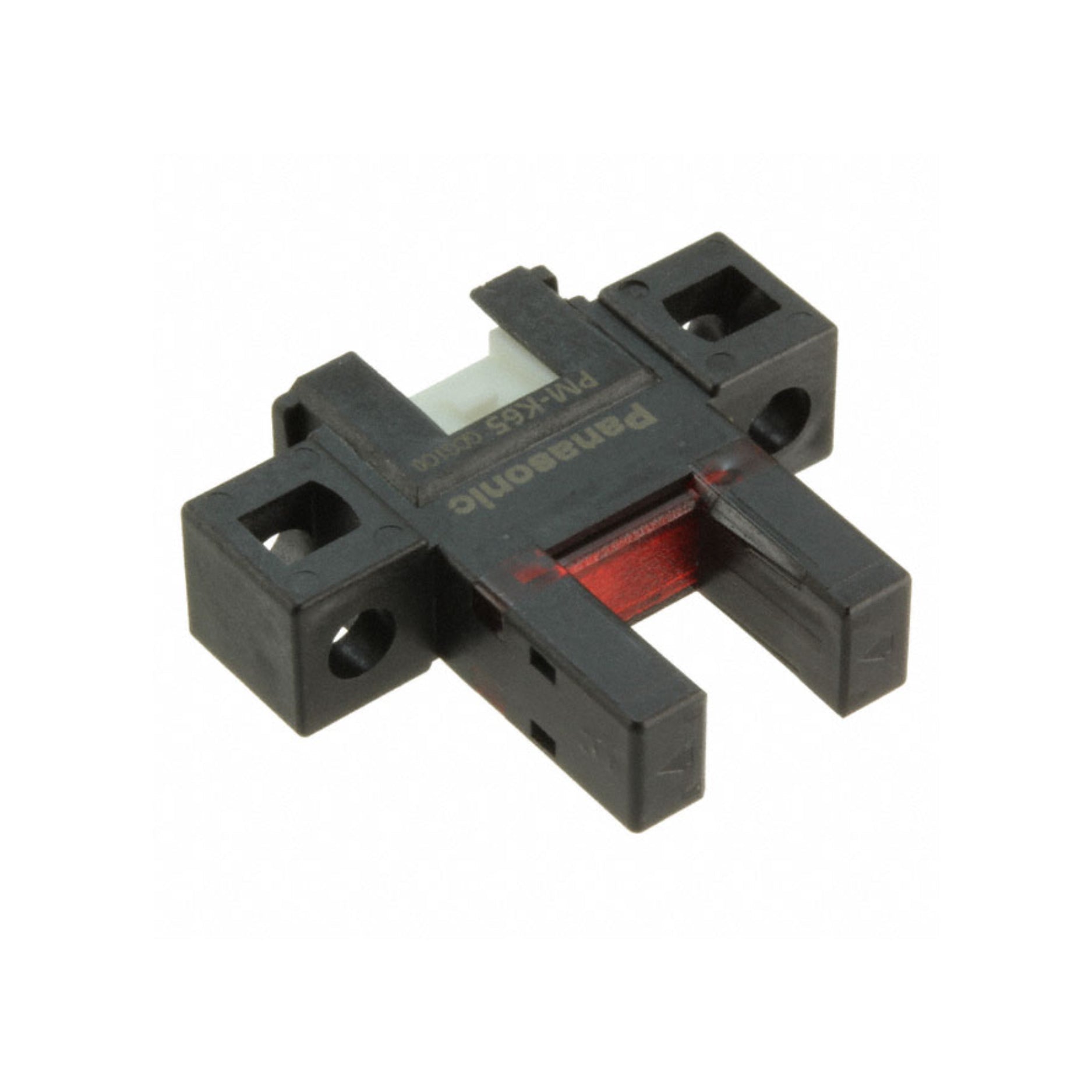

The Panasonic PM-K65 is a compact U-shaped micro photoelectric sensor with a 6 mm slot width and built-in amplifier. It uses a through-beam sensing method for reliable detection of small parts and objects, making it ideal for applications in automated manufacturing, packaging, and electronic assembly lines.

With fast response time, high repeatability, and an NPN open-collector output, the PM-K65 delivers high-precision detection in space-constrained environments.

Key Features

• Sensing Method: Through-beam (U-shaped)

• Slot Width: 6 mm

• Output Type: NPN open-collector, Light-ON

• Response Time: 20 µs

• Supply Voltage: 5–24 V DC

• Compact Size: Ultra-miniature design with built-in amplifier

• Protection Rating: IP64 (dust and splash resistant)

• Connection Type: 3-pin connector (compatible with CN-14A cable, sold separately)

• Indicator LEDs: Red light for easy alignment and operation check

Technical Specifications

• Model: PM-K65

• Sensing Distance: Fixed slot (6 mm)

• Repeatability: Within 0.01 mm

• Max Control Output Current: 50 mA

• Voltage Drop: Max. 1 V at 50 mA

• Current Consumption: Max. 15 mA

• Operating Temperature: -25 to +55 °C

• Housing Material: Polycarbonate resin

• Weight: Approx. 5 g (sensor only)

Applications

• Electronic Assembly Lines – Detect presence of tiny components

• Packaging Machines – Part counting and positioning

• Robotics – End-of-arm tool sensing

• Precision Conveyors – High-speed object detection

Why Choose the Panasonic PM-K65?

• High-speed detection with 20 µs response time

• Ultra-compact for installation in tight spaces

• Ideal for detecting very small objects or passing parts

• Reliable and durable with IP64 protection
