Panasonic NA1-5-PN | Slim Area Sensor with 100 mm Detection, PNP

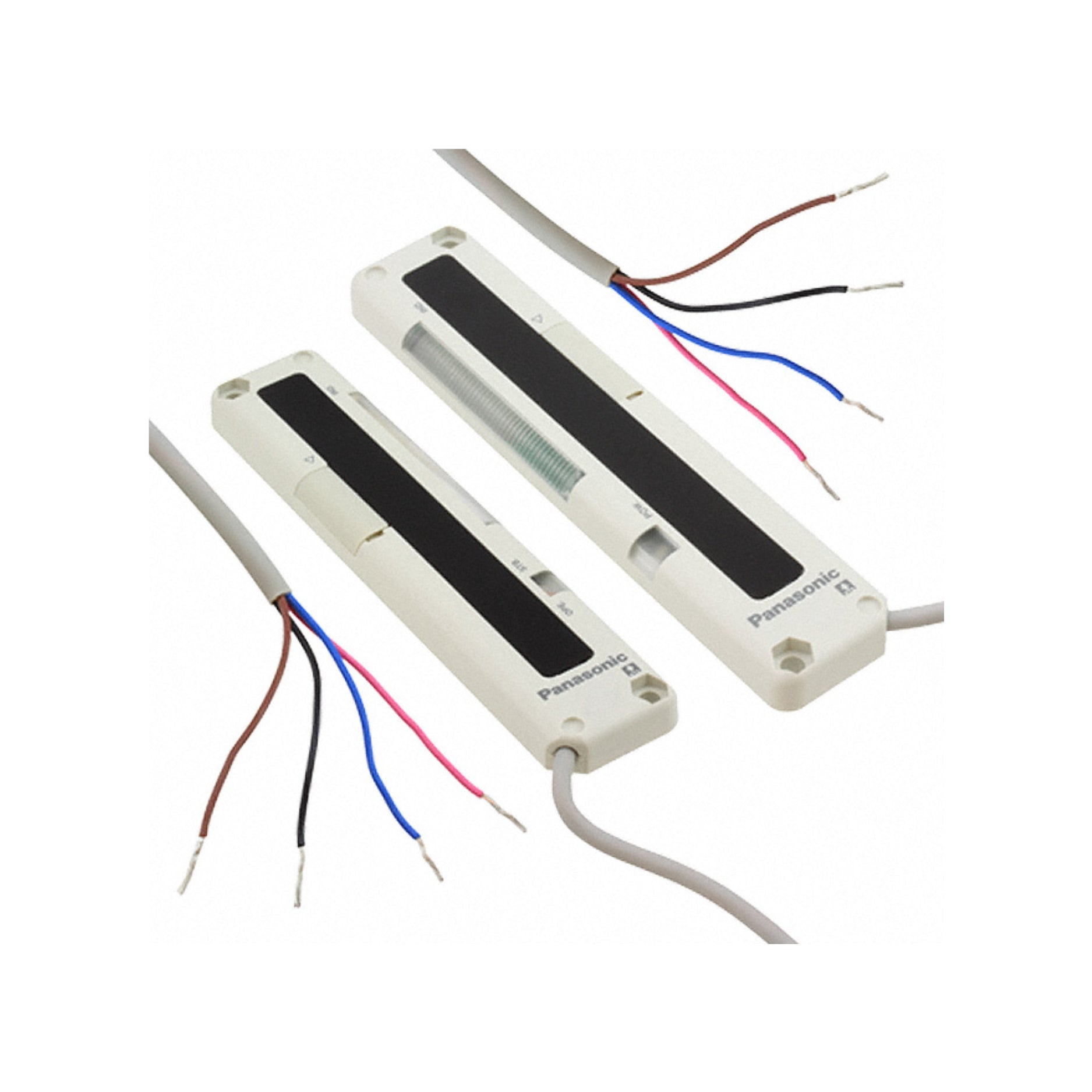

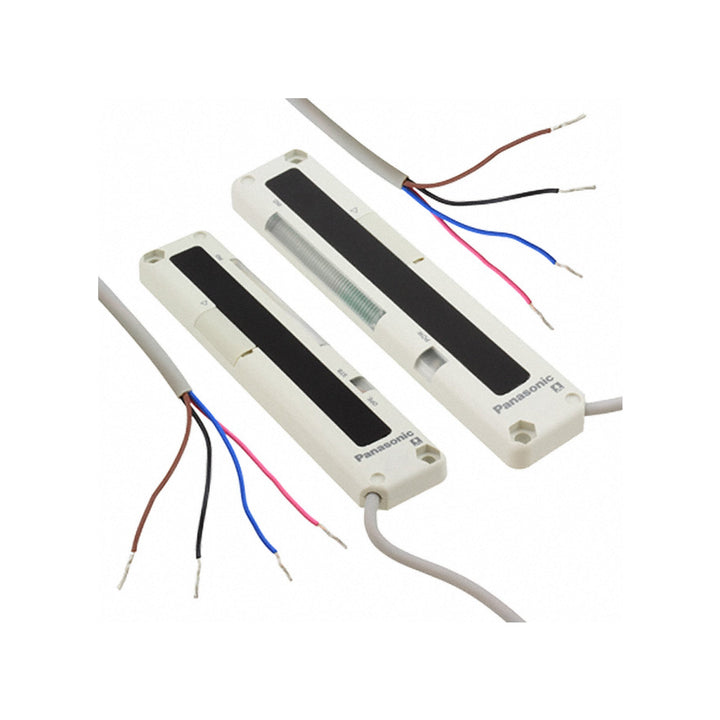

Panasonic NA1-5-PN | Ultra-Slim Area Sensor with PNP Output – 5 Beam Channels

Overview

The Panasonic NA1-5-PN is a super-slim area sensor with a sensing height of 100 mm across 5 beam channels, ideal for part picking detection in compact spaces. With a body thickness of just 10 mm, it ensures easy integration into constrained equipment while providing reliable object detection over a 3-meter range.

The sensor features PNP open-collector output, a fast response time, and LED indicators for easy status monitoring. It's an optimal solution for error prevention in manual picking operations and wide-area part detection.

Key Features

• Sensing Height: 100 mm (5 beam channels at 25 mm pitch)

• Detection Range: 0.2 to 3 m (SHORT mode: 0.05 to 1 m)

• Output Type: PNP open-collector transistor (Normally Open)

• Response Time: ≤10 ms

• Object Detection: Opaque objects ≥ 35 mm diameter

• Slim Housing: Only 10 mm thick for narrow-space mounting

• Status Indicators: Power, operation, stable incident beam, job indicator

• Connection Type: 2 m pre-wired cable

• Protection Rating: IP62

• Mounting: Side mounting with included brackets

• Power Supply: 12–24 V DC

Technical Specifications

• Model: NA1-5-PN

• Series: NA1-PK5

• Light Source: Infrared LED

• Beam Pitch: 25 mm

• Current Consumption: Max. 30 mA

• Output Load Capacity: Max. 50 mA

• Ambient Operating Temp: –10 to +55 °C

• Cable Length: 2 m (standard)

• Material: Polycarbonate housing

Applications

• Parts Picking Verification – Prevent missing or double picks

• Wide-Area Sensing in Tight Spaces – Compact form fits easily into workstations

• Assembly Lines – Manual operation safety and feedback

• Conveyor Systems – Object presence confirmation

Why Choose the Panasonic NA1-5-PN?

• Slim and space-saving for mounting in tight locations

• Reliable wide-area detection using 5 beams

• Fast response time ensures smooth operation

• Built-in status indicators for easy diagnostics

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
