Panasonic NA1-11-PN | Ultra-Thin Area Sensor, PNP Output, 11

Panasonic NA1-11-PN | Slim Type Area Sensor with 11 Beams and PNP Output

Overview

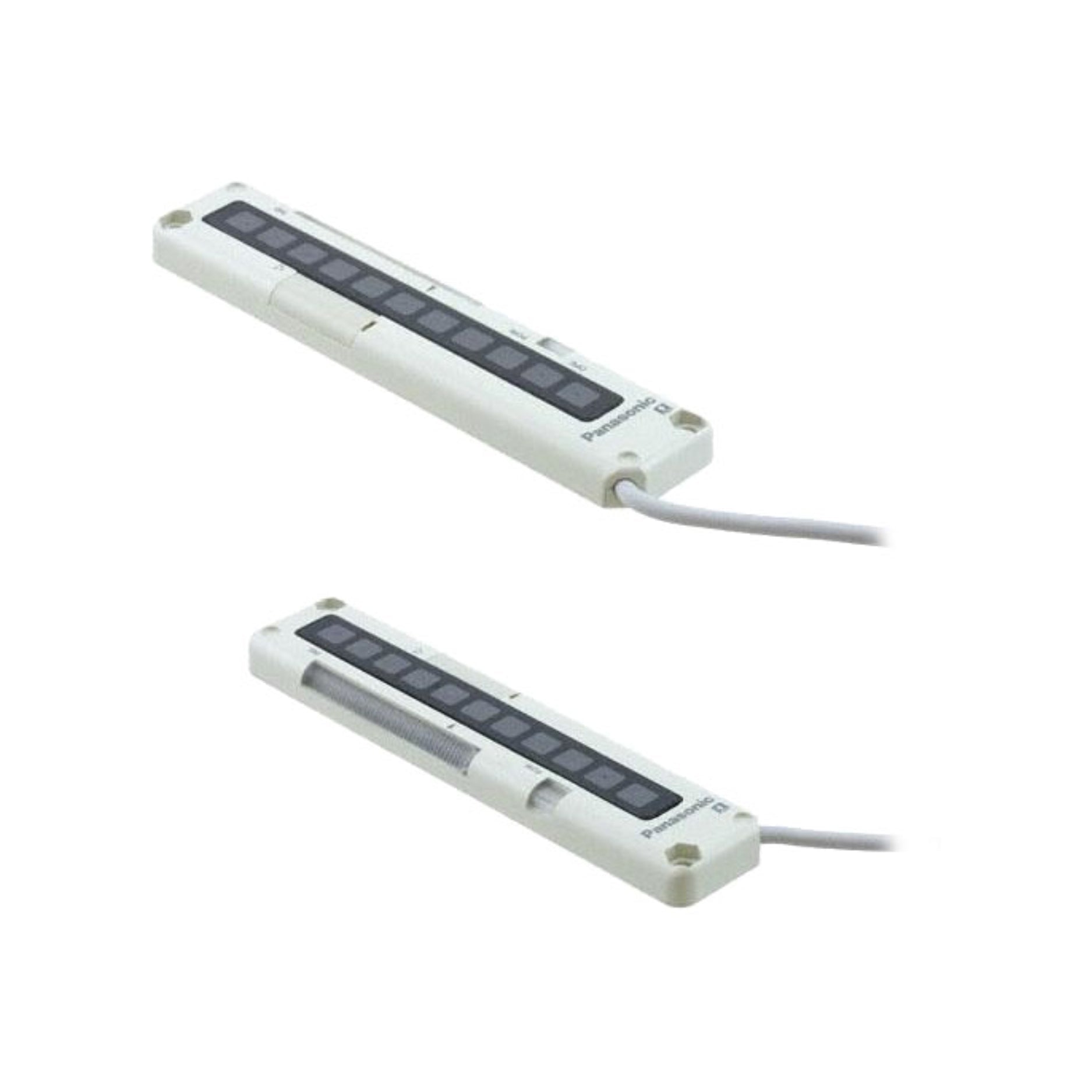

The Panasonic NA1-11-PN is an ultra-thin area sensor with 11 optical beams and a PNP output, designed for non-contact object detection over a wide area. With a 4.5 mm thick body, this sensor is ideal for installations where space is limited, such as assembly lines, robotic systems, and part feeders.

Its simple through-beam configuration enables stable detection across a broad area, making it a reliable and compact solution for light-duty safety and presence detection.

Key Features

• 11-Beam Detection Area – Covers a wide zone for presence detection

• PNP Output (Normally Open) – Easily integrates with PNP control systems

• Ultra-Thin Housing – Only 4.5 mm thick, ideal for tight spaces

• Non-Contact Detection – Suitable for passing small or irregular objects

• Stable Through-Beam Sensing – High immunity to ambient light

• Easy Alignment – Built-in indicators assist with beam positioning

• Includes Both Emitter and Receiver – Pre-aligned for quick setup

• IP40 Rating – Designed for dry, clean environments

Technical Specifications

• Model: NA1-11-PN

• Number of Beams: 11

• Output Type: PNP, Normally Open

• Sensing Height: Approx. 110 mm

• Sensing Distance: 0.1 to 3 m (typical)

• Response Time: Approx. 10 ms

• Power Supply: 12–24 VDC

• Current Consumption: Approx. 60 mA (total)

• Housing Thickness: 4.5 mm

• Operating Temp: –10 to +55 °C

• Connection: Pre-wired cable

• Protection Rating: IP40

• Material: Polycarbonate

Applications

• Small Part Detection – Ideal for feeding systems and compact conveyors

• Robotics – Presence detection around end-effectors or trays

• Slim Equipment Panels – Install in narrow gaps for wide-area monitoring

• Electronic Assembly – Non-contact detection of circuit boards or components

Why Choose the Panasonic NA1-11-PN?

• Extremely thin body fits almost anywhere

• Wide beam coverage for flexible object detection

• Reliable PNP output for simple integration
