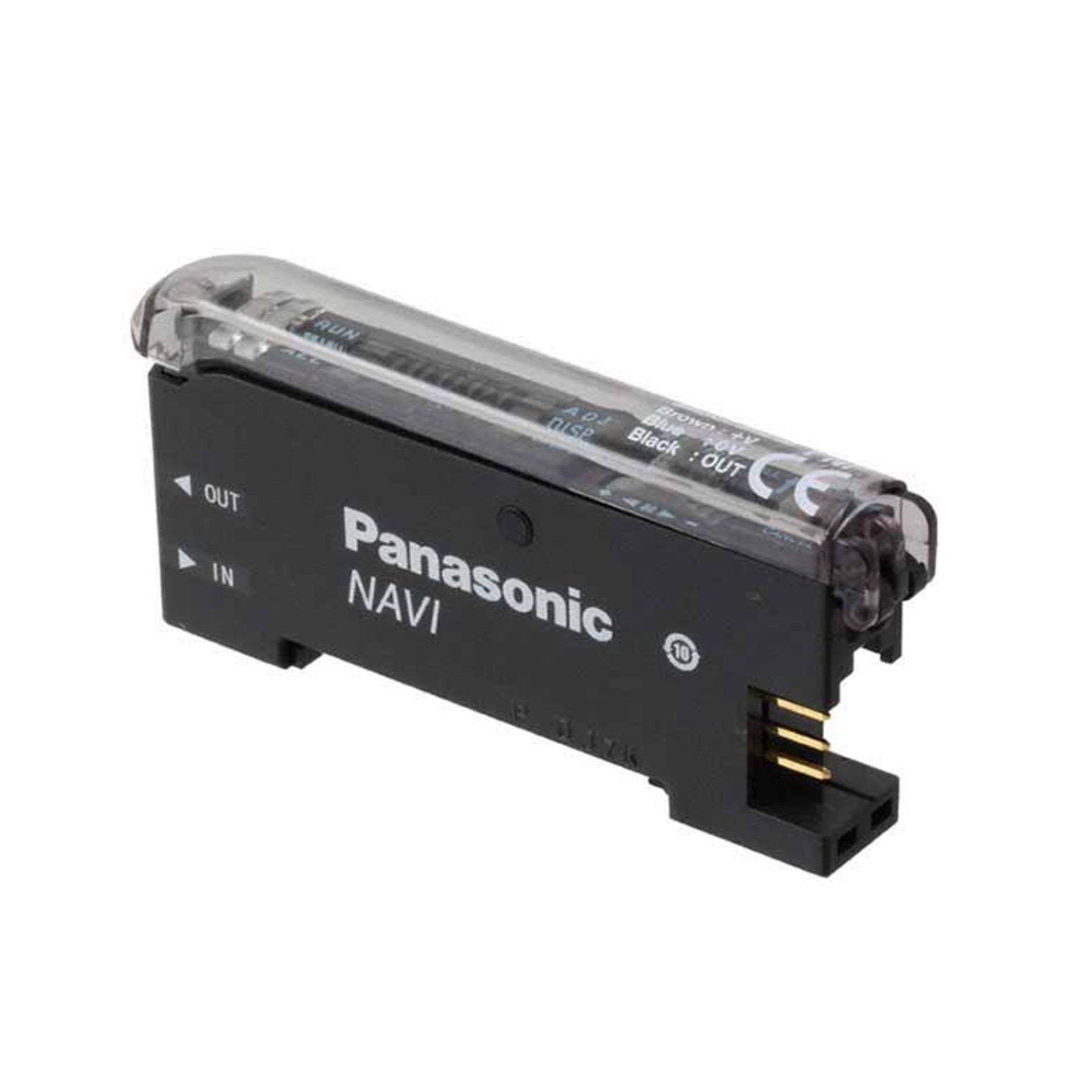

Panasonic FX-301P | Fiber Optic Sensor Amplifier, PNP Output

Panasonic FX-301P | Digital Fiber Sensor Amplifier Unit with PNP Output

Overview

The Panasonic FX-301P is a digital fiber optic sensor amplifier designed for high-speed, high-precision detection in industrial automation systems. Compatible with Panasonic’s standard fiber optic heads, the FX-301P offers PNP output and includes advanced features such as auto-teach, threshold adjustment, and a dual digital display.

Its compact body and user-friendly interface make it ideal for assembly lines, electronic component detection, labeling machines, and packaging equipment where fast and accurate object detection is required.

Key Features

• PNP Output Type – For use with PNP-input control systems

• Compatible with Panasonic Fiber Heads – Works with a wide range of reflective and thrubeam types

• Auto-Teach Function – Simplifies setup and sensitivity adjustment

• High-Speed Response – Suitable for fast-moving production lines

• Dual Digital Display – Shows real-time incident light level and threshold

• Light-On/Dark-On Selectable – Flexible operation modes

• Compact Housing – Saves space in control panels

• DIN Rail Mountable – Easy installation with standard clips

Technical Specifications

• Model: FX-301P

• Output Type: PNP, 1 output (normally open)

• Response Time: 250 µs (standard), selectable high-speed modes

• Supply Voltage: 12–24 VDC ±10%

• Current Consumption: Max. 960 mW

• Display: Dual 4-digit LED (red and green)

• Control Functions: Auto-teach, manual adjustment, timer functions

• Connection: 3-wire or with connector (depending on model)

• Ambient Temperature: –10 to +55°C

• Protection Rating: IP40 (main unit)

• Housing Material: Polycarbonate

• Mounting: DIN rail (35 mm)

Applications

• Electronic Assembly – Detect tiny components or wires

• Packaging Machinery – Object or label presence detection

• Conveyor Systems – Small object detection at high speed

• Automation Equipment – Reliable performance in tight spaces

Why Choose the Panasonic FX-301P?

• Reliable and compact amplifier for fiber sensors

• Easy-to-read display with intuitive configuration

• Fast response and adjustable threshold for critical applications

Order Now

In stock and ready to ship.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
