Panasonic EX-32A-PN | Compact Diffuse Photoelectric Sensor, 50 mm

Panasonic EX-32A-PN | Miniature Photoelectric Sensor with PNP Output – 50 mm Range

Overview

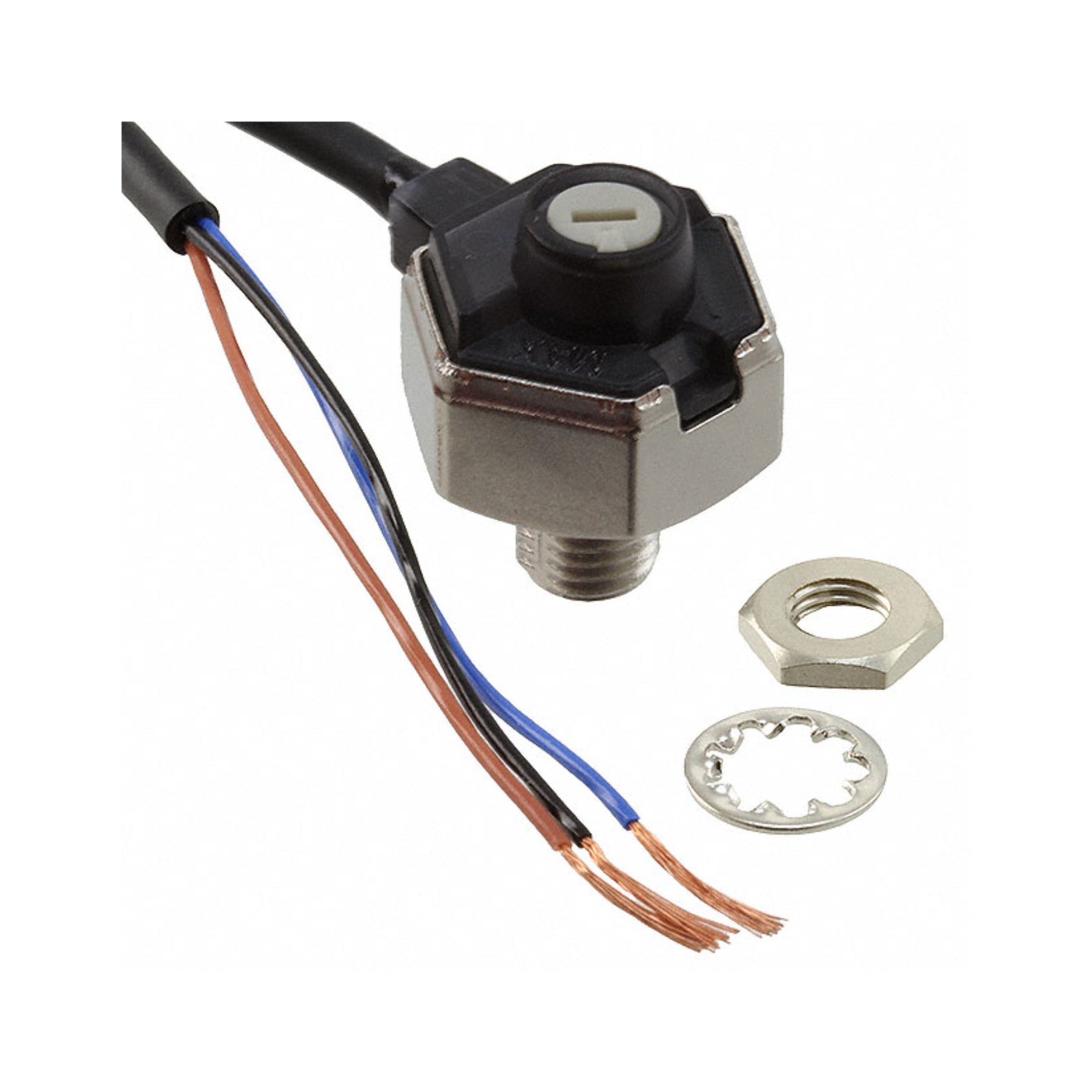

The Panasonic EX-32A-PN is a diffuse reflective photoelectric sensor from the EX-30 Ver.2 series, designed for compact installations and precision object detection in tight spaces. It features a 50 mm sensing distance, PNP light-on output, and a threaded M4 metal body for durable and stable mounting.

With its IP67 protection rating, fast 500 μs response time, and high vibration resistance, the EX-32A-PN is well-suited for use in robotics, conveyors, and machine automation.

Key Features

• Sensing Method: Diffuse reflective

• Sensing Distance: 50 mm (white paper target)

• Output Type: PNP open-collector, Light-ON

• Response Time: 500 μs max

• Threaded Body: M4 metal housing for secure mounting

• Light Source: Red LED (660 nm)

• Connection Type: 2-meter cable

• Compact Design: Just 4 mm diameter – ideal for miniature equipment

• Protection Rating: IP67 – Dustproof and waterproof

• Supply Voltage: 12–24 V DC ±10%

Technical Specifications

• Model: EX-32A-PN

• Type: Diffuse reflective, PNP

• Sensing Distance: 50 mm

• Output Current: Max. 100 mA

• Voltage Drop: Max. 1.8 V

• Current Consumption: Max. 10 mA

• Ambient Temp: -25 to +55 °C

• Cable Length: 2 m, PVC sheath

• Vibration Resistance: 10 to 500 Hz, 1.5 mm amplitude, 10 g

• Housing Material: Stainless steel (SUS304), acrylic lens

Applications

• Robotics – End-of-arm tooling and position detection

• Assembly Lines – Compact object sensing in tight fixtures

• Material Handling – Short-range part presence detection

• Packaging Equipment – Detection of product flow and presence

Why Choose the Panasonic EX-32A-PN?

• Ultra-compact and rugged for limited-space applications

• Precise diffuse detection with fast response

• Easy to install with threaded body and standard wiring
