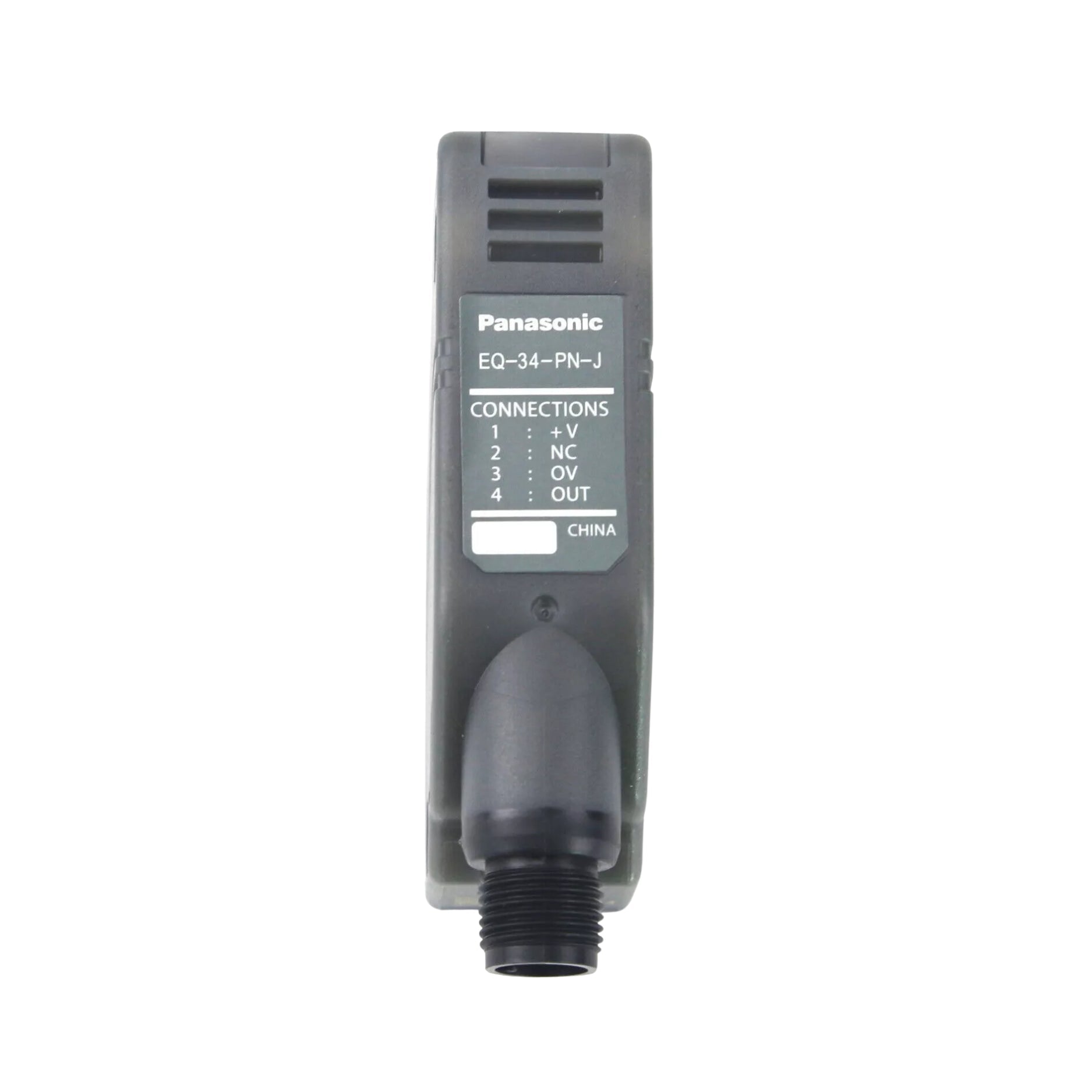

Panasonic EQ-34-PN-J | PNP Retro-Reflective Photoelectric Sensor

Panasonic EQ-34-PN-J | Compact Retro-Reflective Photoelectric Sensor with PNP Output

Overview

The Panasonic EQ-34-PN-J is a compact retro-reflective photoelectric sensor featuring a PNP output, ideal for general-purpose object detection in industrial environments. This sensor uses a built-in emitter and receiver to detect objects through the reflection of light from a reflector (sold separately), allowing for accurate long-distance detection with simple installation.

Its slim, space-saving housing, IP67 protection, and quick response time make it suitable for a wide range of applications including conveyors, packaging machines, and automated systems.

Key Features

• Retro-Reflective Detection – Uses reflector for object detection

• PNP Output (Normally Open) – For use with PNP-compatible control systems

• Compact Housing – Slim profile for tight-space installations

• Long Detection Distance – Approx. 2 meters with standard reflector

• Built-In Operation Indicator LED – For easy alignment and status monitoring

• Durable Design – IP67-rated for water and dust resistance

• Fast Response Time – Ensures accuracy in high-speed operations

Technical Specifications

• Model: EQ-34-PN-J

• Detection Method: Retro-reflective

• Sensing Distance: Up to 2 meters (with reflector)

• Output Type: PNP, Normally Open

• Power Supply: 12–24 VDC

• Response Time: Approx. 1 ms

• Connection Type: Pre-wired cable

• Protection Rating: IP67

• Operating Temperature: –25 to +55°C

• Housing Material: Resin

• Mounting: Side-mountable, through-holes provided

Applications

• Automated Conveyors – Detect passing objects or packages

• Packaging Machines – Trigger operations based on product presence

• Material Handling – Detect boxes, trays, or containers

• Factory Automation – General-purpose presence detection

Why Choose the Panasonic EQ-34-PN-J?

• Compact and efficient retro-reflective sensor

• Easy to install with reliable PNP output

• High-performance sensing with IP67 protection

Order Now

In stock and available for fast global shipping. Reflectors and mounting brackets sold separately.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
