Panasonic CX-442-P | Diffuse Reflective Sensor, PNP, 500 mm Range

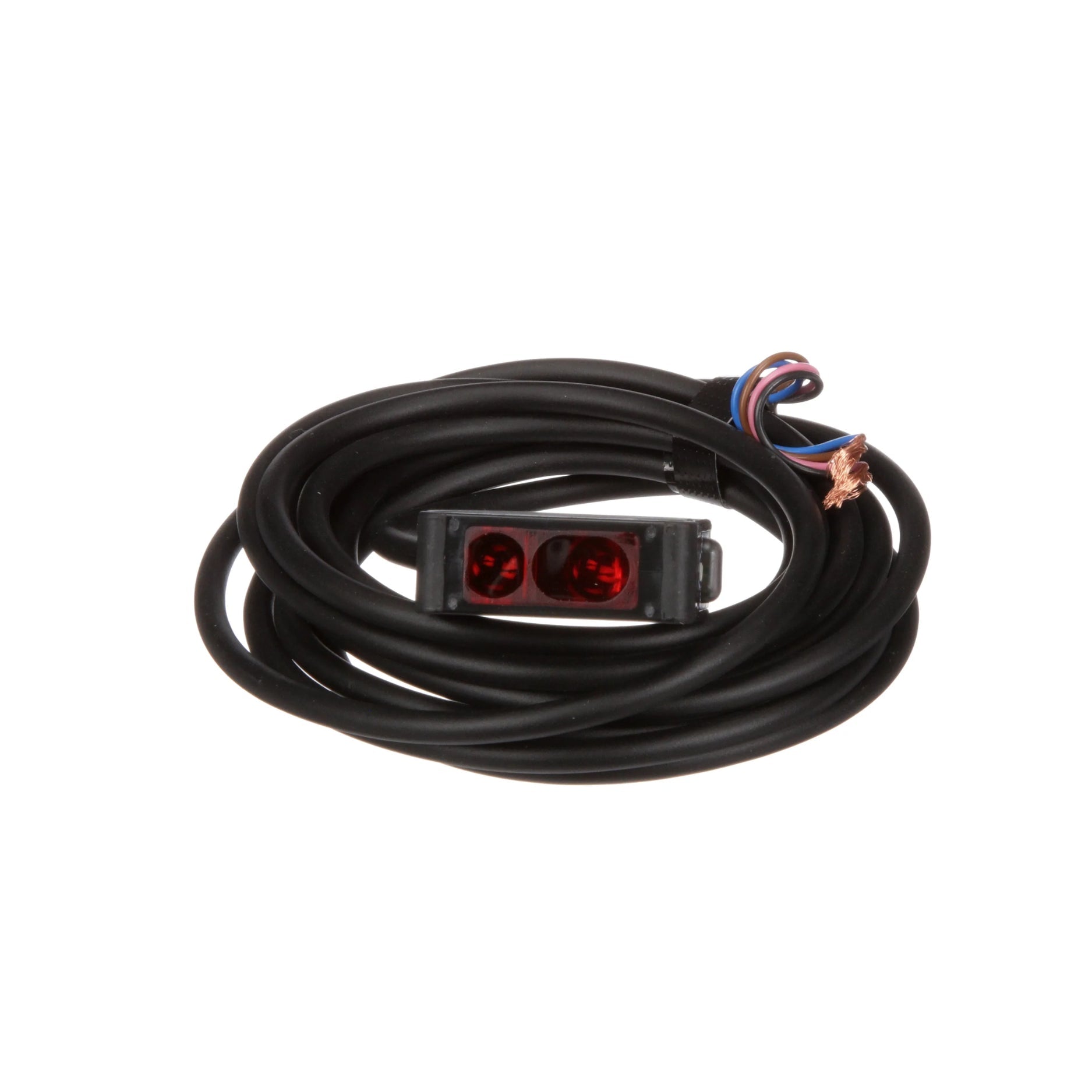

Panasonic CX-442-P | Compact Diffuse Reflective Photoelectric Sensor (PNP Output)

Overview

The Panasonic CX-442-P is a compact diffuse reflective photoelectric sensor with a PNP output, designed for non-contact object detection up to 500 mm. It features a built-in amplifier, slim body, and easy wiring, making it ideal for a variety of automation, packaging, and assembly applications.

With its IP67 protection rating, the CX-442-P performs reliably in dusty and humid environments. Its visible red LED light source and high-speed response time allow for precise and stable object detection.

Key Features

• Diffuse Reflective Type – Ideal for detecting opaque objects without a reflector

• Sensing Range: Up to 500 mm

• Output Type: PNP, Normally Open

• Compact Housing – Easy to mount in narrow spaces

• Built-in Amplifier – No external unit required

• Bright Red LED – Visible beam for easy alignment

• Response Time: 1 ms max

• IP67 Protection – Water and dust resistant for industrial use

• LED Indicators – Power and output status

Technical Specifications

• Model: CX-442-P

• Detection Method: Diffuse reflective

• Sensing Distance: 500 mm (white paper target)

• Light Source: Red LED (680 nm)

• Output Type: PNP, Normally Open

• Power Supply: 12–24 VDC ±10%

• Current Consumption: Max. 20 mA

• Response Time: Max. 1 ms

• Connection: 2 m cable

• Housing Material: Polycarbonate

• Protection Rating: IP67

• Operating Temperature: –25 to +55 °C

Applications

• Conveyor Lines – Detect presence of objects without physical contact

• Packaging Machines – Item detection and counting

• Automated Assembly – Positioning confirmation

• General Industrial Automation – Compact and reliable detection

Why Choose the Panasonic CX-442-P?

• Stable diffuse reflective detection up to 500 mm

• Slim, compact body for space-constrained applications

• Reliable PNP output for standard control systems
