Overview

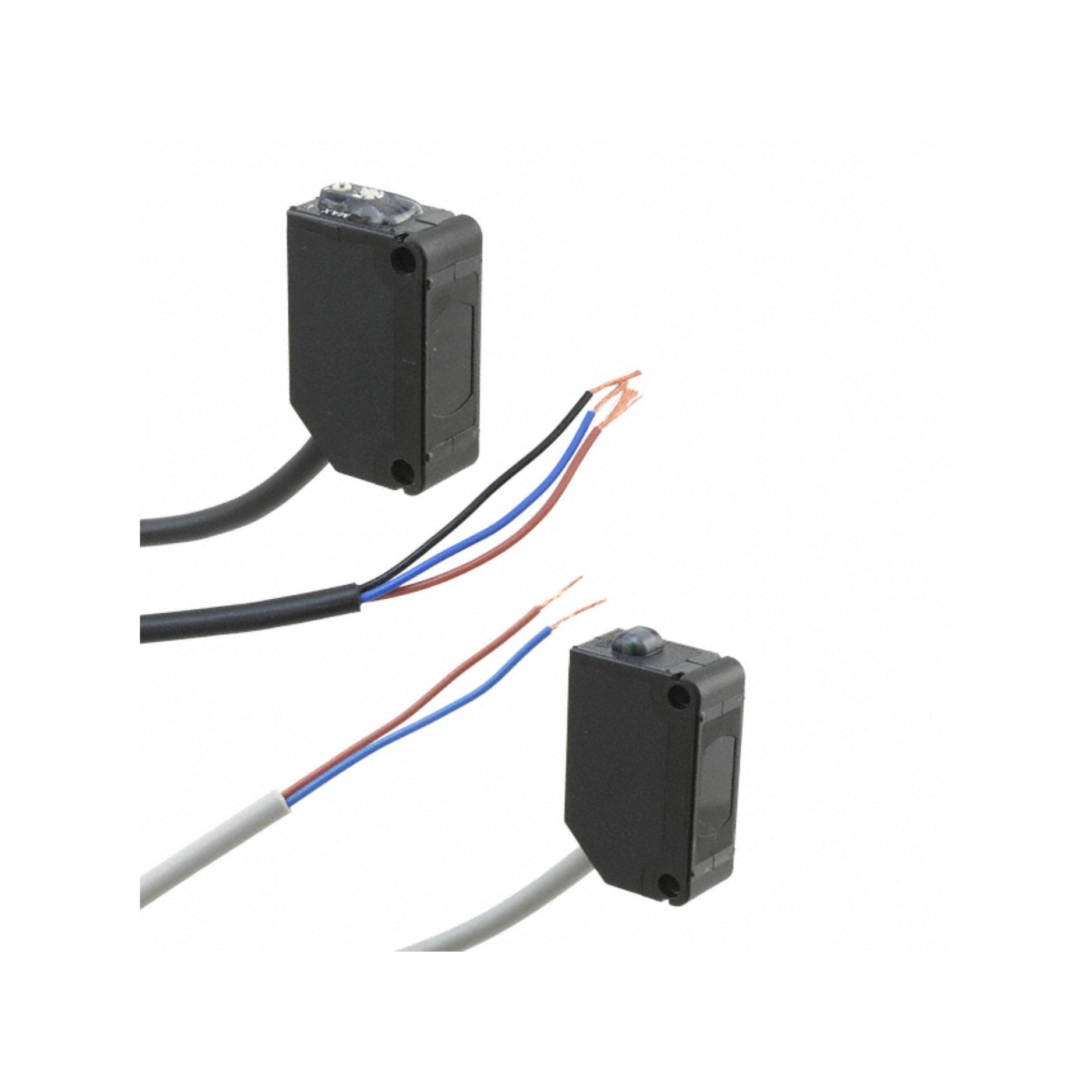

The Panasonic CX-412-P is a through-beam photoelectric sensor with a 15-meter sensing range and a PNP open-collector output. Designed for reliable long-distance detection, this sensor is ideal for use in conveyor systems, packaging machines, and automated industrial processes.

With a compact body (11 × 31 × 20 mm) and IP67 protection, the CX-412-P offers durable and flexible installation in space-constrained or harsh environments.

Key Features

• Sensing Method: Through-beam (requires emitter and receiver)

• Sensing Distance: 15 meters

• Output Type: PNP open-collector transistor, Normally Open

• Light Source: Infrared LED (880 nm)

• Fast Response Time: 1 ms or less

• Power Supply: 12–24 V DC ±10%

• Compact Housing: 11 × 31 × 20 mm

• Indicator LEDs: Power and output status

• Protection Rating: IP67 (dustproof and waterproof)

• Connection Type: 2 m pre-wired cable

Technical Specifications

• Model: CX-412-P

• Sensing Type: Through-beam

• Sensing Range: 15 m (with suitable reflector)

• Output Configuration: PNP, Normally Open

• Control Output Load: Max. 100 mA

• Voltage Drop: Max. 1.5 V

• Current Consumption: Max. 20 mA

• Ambient Temperature: –25 °C to +55 °C

• Operating Humidity: 35% to 85% RH (non-condensing)

• Housing Material: PBT with acrylic lens

Applications

• Conveyor Systems – Detect object presence or passage

• Packaging Machines – Ensure proper product flow

• Material Handling – Long-range detection in logistics and warehousing

• Automated Production Lines – Position verification and presence sensing

Why Choose the Panasonic CX-412-P?

• Long sensing range up to 15 meters

• Slim and compact for limited mounting space

• Rugged IP67 design for industrial use

• Reliable and fast response for high-speed operations
