Panasonic CX-411 | Reflective Photoelectric Sensor, NPN Output

Panasonic CX-411 | Compact Reflective Photoelectric Sensor with NPN Output

Overview

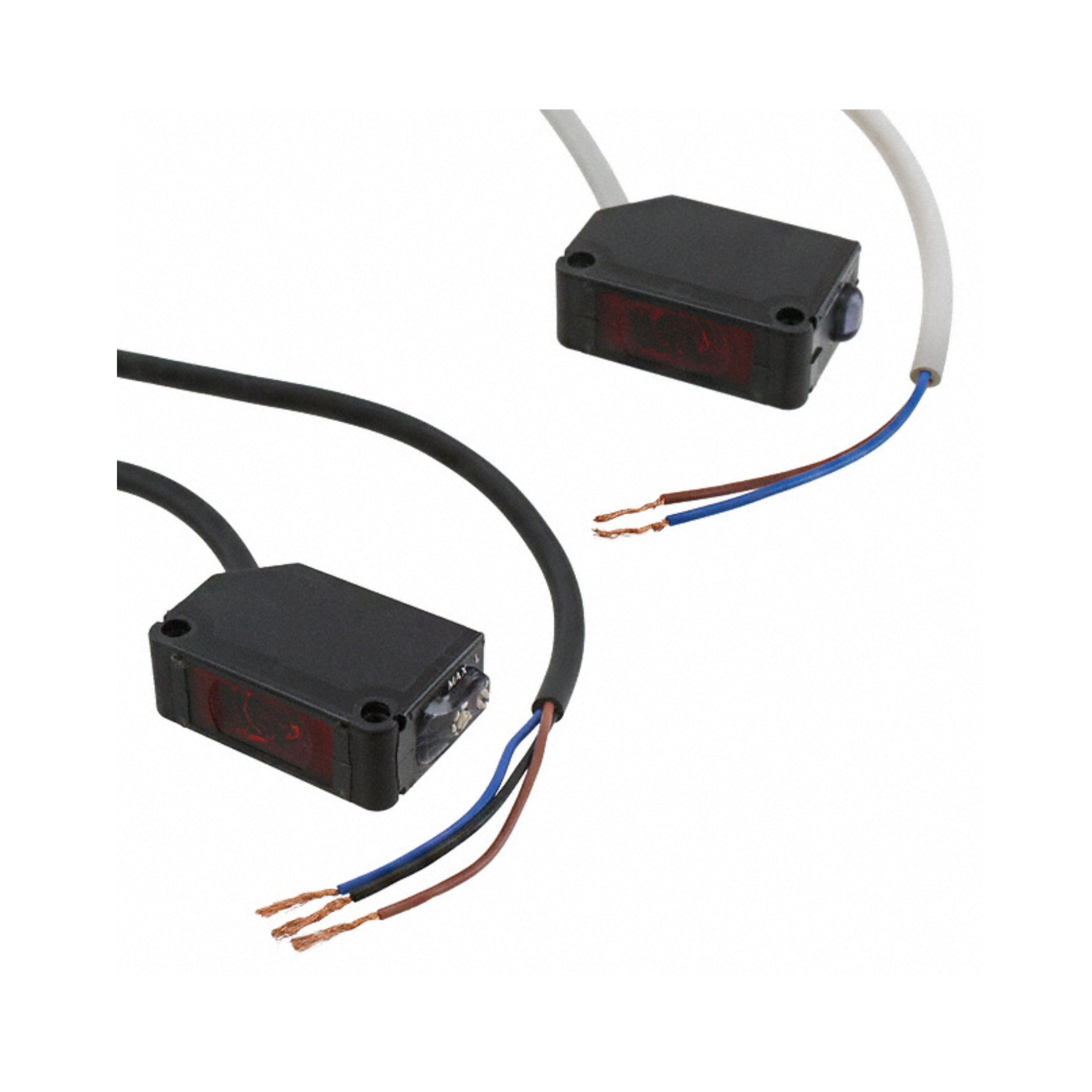

The Panasonic CX-411 is a compact reflective photoelectric sensor with an NPN open collector output, designed for non-contact object detection at distances up to 500 mm. With a built-in emitter and receiver in a single housing, it offers a simple and space-saving solution for various industrial automation applications.

The CX-411 is ideal for detecting objects on conveyors, packaging equipment, and automated machinery, and features IP67 protection, ensuring durability in dusty or wet environments.

Key Features

• Reflective Detection Type – Built-in emitter and receiver

• NPN Output (Normally Open) – For direct connection to NPN-compatible PLCs

• Sensing Distance: Up to 500 mm (with standard white paper target)

• Compact Housing – Ideal for limited-space installations

• Fast Response Time – Suitable for high-speed applications

• Operation and Stability Indicators – LED status display

• IP67 Rating – Dust-tight and waterproof design

• Easy Mounting – Standard through-hole or bracket mount

Technical Specifications

• Model: CX-411

• Sensing Method: Diffuse reflective

• Sensing Range: Up to 500 mm

• Output Type: NPN open collector (NO)

• Power Supply: 12–24 VDC ±10%

• Response Time: ≤1 ms

• Current Consumption: ≤20 mA

• Connection Type: 2 m pre-wired cable

• Housing Material: PBT (polybutylene terephthalate)

• Protection Rating: IP67

• Operating Temperature: –25 to +55°C

Applications

• Conveyor Systems – Detect passing products or containers

• Packaging Machines – Trigger labeling, sealing, or counting processes

• Assembly Automation – Presence and position verification

• Electronics Manufacturing – Non-contact part sensing in compact setups

Why Choose the Panasonic CX-411?

• Reliable reflective sensing in a small, rugged housing

• Easy to install and operate

• Suitable for demanding industrial conditions

Order Now

Available and ready to ship globally.
