Panasonic AIG707WCL1B2-F | 7" Color HMI, GT707 Series, RS232, 24V

Panasonic AIG707WCL1B2-F | GT707 Series 7" HMI Touchscreen – RS232 Communication

Overview

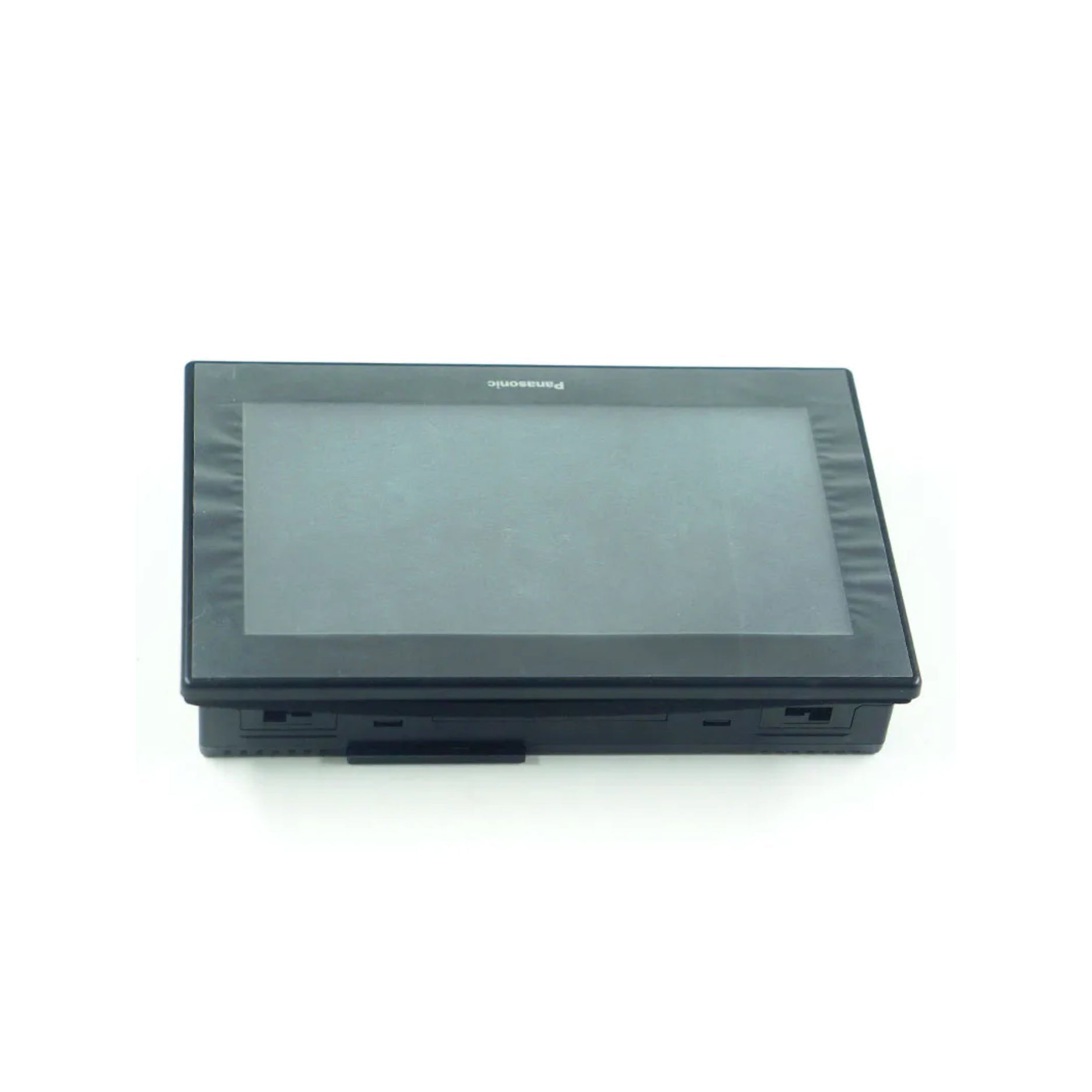

The Panasonic AIG707WCL1B2-F is a 7-inch color touchscreen Human-Machine Interface (HMI) from the GT707 series, engineered for machine control, process monitoring, and automation system interaction. This HMI offers a high-resolution color display, RS232 communication, and a compact design, making it suitable for diverse industrial environments.

Designed with a rugged IP65-rated front panel, this model withstands dust and water exposure, ensuring durability in harsh conditions. The touch interface and intuitive menu structure enable operators to navigate and monitor system parameters with ease.

Key Features

• Display Size: 7-inch TFT color LCD

• Resolution: 800 × 480 pixels (WQVGA)

• Touch Panel: Analog resistive type

• Power Supply: 24 V DC (21.6 to 26.4 V DC operating range)

• Power Consumption: 6 W max.

• Communication Interface: RS232C (up to 115.2 kbps)

• USB Port: USB 2.0 Mini-B for programming/data transfer

• User Memory: 76 MB flash memory

• Backup Memory: Non-volatile SRAM

• Operating Temperature: 0 to +50 °C

• Protection Rating: IP65 front panel (when mounted properly)

• Shock Resistance: 147 m/s² (IEC61131-2 compliance)

• Electrostatic Resistance: 4 kV (contact discharge)

Applications

• Machine tool control panels

• Packaging and filling systems

• Industrial process displays

• Conveyor monitoring stations

• Building automation control units

Why Choose the AIG707WCL1B2-F?

• High-quality 7” HMI with clear graphics and responsive touch

• IP65 protection for tough industrial conditions

• Reliable RS232 communication for direct PLC interfacing

• Compact and user-friendly for operator use

Order Now

Fast shipping and worldwide delivery available

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
