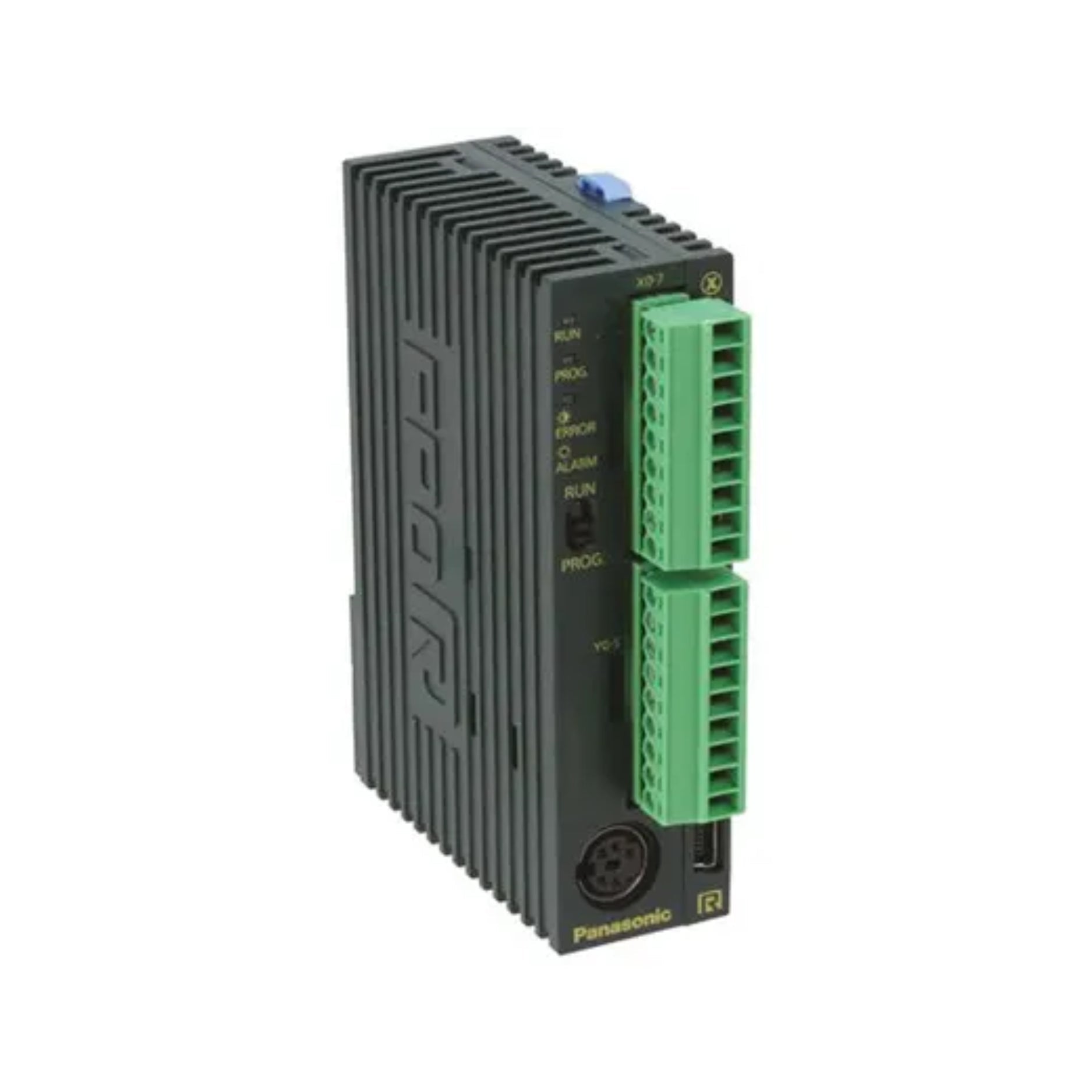

Panasonic AFP0RE8RS | PLC Expansion Unit, 4 Inputs / 4 Relay

Panasonic AFP0RE8RS | Compact Expansion Unit for FP0R Series PLCs

Overview

The Panasonic AFP0RE8RS is a digital expansion module for FP0R series PLCs, providing 4 digital inputs and 4 relay outputs in a compact form factor. It extends the control capabilities of existing PLC systems and is ideal for applications requiring additional discrete I/O without occupying much panel space.

This module is suitable for use in machine control, process automation, and OEM equipment, and is designed for plug-and-play compatibility with the Panasonic FP0R, FP-Sigma, and FP-X platforms.

Key Features

• 4 Digital Inputs (24 VDC) – Sink/source type, for sensors or switches

• 4 Relay Outputs – Ideal for actuating external devices (2 A per contact max)

• DIN Rail Mountable – Easy installation in control panels

• Compact Size – Saves space in tight enclosures

• Plug-and-Play – Seamless integration with FP0R CPU units

• Status LEDs – Visual feedback for input and output states

• Terminal Block Connections – Secure and convenient wiring

Technical Specifications

• Model: AFP0RE8RS

• Input Channels: 4 digital (24 VDC, sink/source compatible)

• Output Channels: 4 relay (2 A max @ 250 V AC / 30 V DC)

• Output Type: Relay, Normally Open (NO) contacts

• Power Supply: Supplied from PLC base unit

• Connection Method: Terminal block

• Operating Temperature: 0 to +55 °C

• Mounting: DIN rail or direct panel mounting

• Dimensions: Approx. 90 mm × 60 mm × 25 mm

• Weight: Approx. 130 g

• Series Compatibility: FP0R, FP-Sigma, FP0H, FP-X

Applications

• Machine Control – Expand control of actuators and sensors

• Packaging Equipment – Additional I/O for valves, motors, and sensors

• Process Automation – Relay control for pumps, solenoids, or alarms

• OEM Equipment – Scalable I/O for modular design systems

Why Choose the AFP0RE8RS?

• Adds flexible I/O expansion without increasing footprint

• Simple setup with plug-in connectivity to FP0R CPU

• Supports a mix of input monitoring and output switching

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
