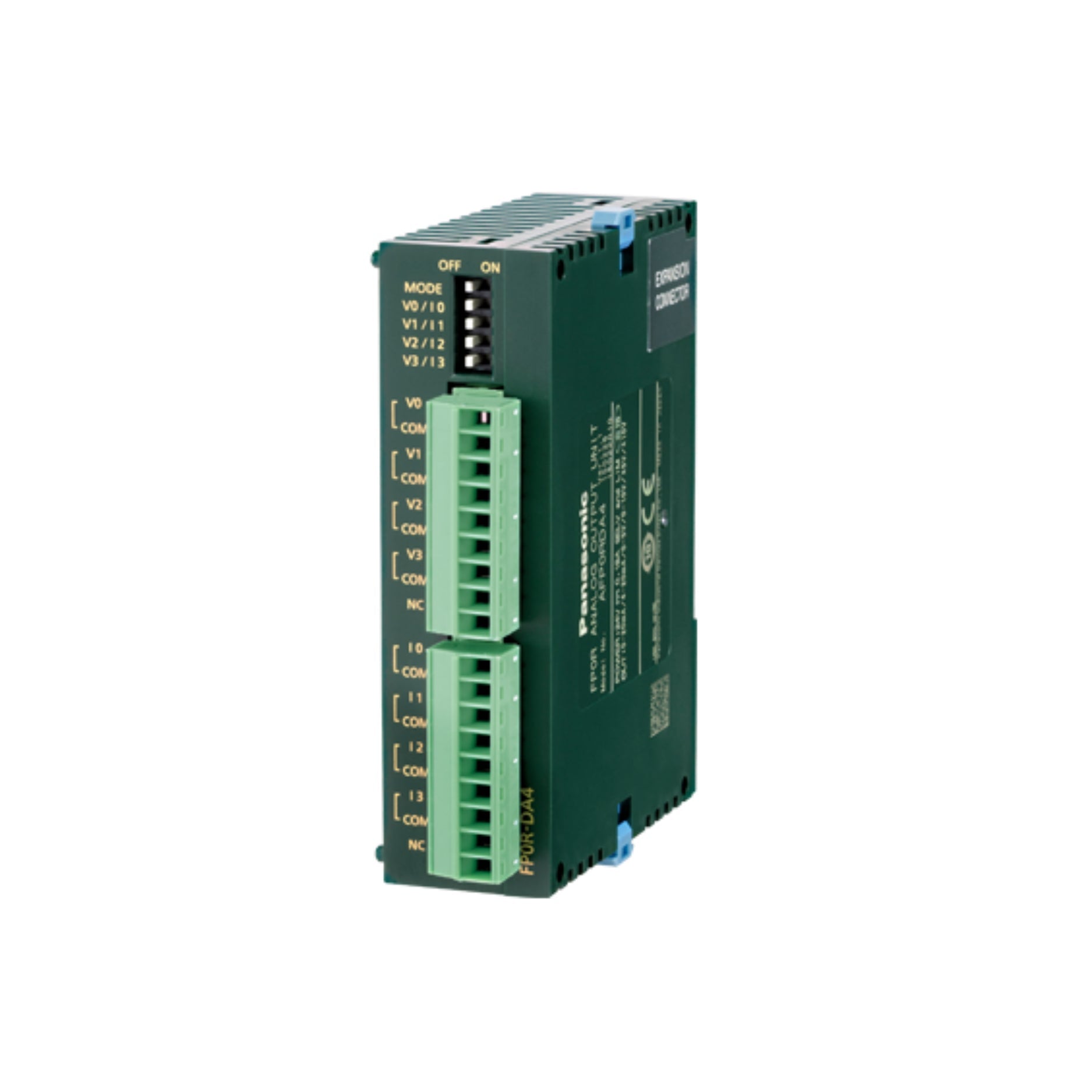

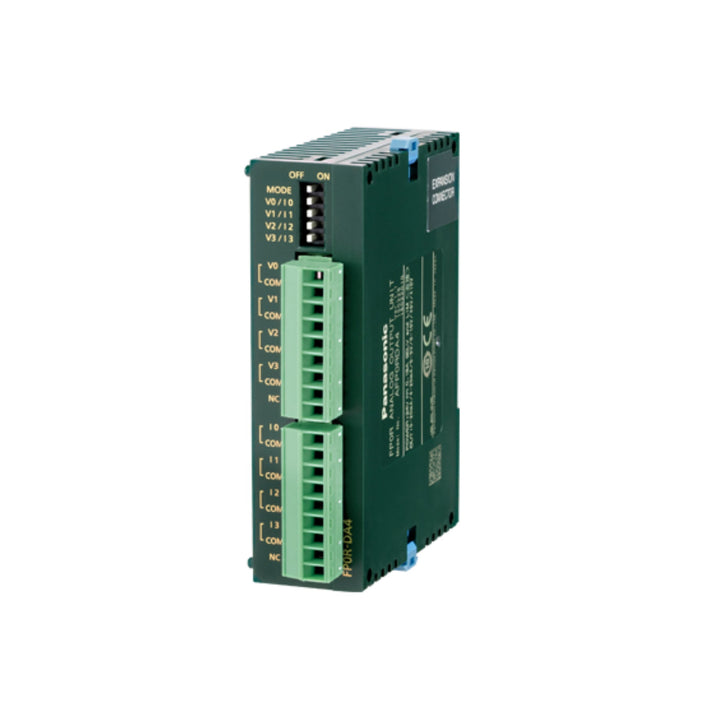

Panasonic AFP0RDA4 | 4-Channel Analog Output Module for FP0R Series PLCs

Overview

The Panasonic AFP0RDA4 is a 4-channel analog output module for the FP0R series PLCs, designed to control analog devices with precise signal output. This compact expansion unit supports both voltage output (±10 V) and current output (4–20 mA), allowing versatile integration in industrial automation, process control, and HVAC systems.

With high-resolution output and FP0R system compatibility, it provides reliable analog control for motors, drives, actuators, and other devices requiring variable signals.

Key Features

• Number of Analog Outputs: 4 channels

• Voltage Output Range: -10 V to +10 V (14-bit resolution)

• Current Output Range: 4 to 20 mA (12-bit resolution)

• Output Type: Selectable per channel

• Compact Size: Ideal for space-constrained control panels

• Direct FP0R Mounting: No separate power supply required

• High Accuracy and Stability for sensitive control applications

Technical Specifications

• Model: AFP0RDA4

• Series: FP0R

• Output Channels: 4 (Voltage or Current selectable)

• Resolution:

  • Voltage: 14-bit (approx. 1.2 mV/step)

  • Current: 12-bit (approx. 0.004 mA/step)

• Load Resistance:

  • Voltage: ≥ 2 kΩ

  • Current: ≤ 500 Ω

• Response Time: < 1 ms per channel

• Operating Temperature: 0 to +55 °C

• Mounting: DIN rail or direct mount with FP0R CPU

• Dimensions: Compact, matches FP0R format

• Weight: Approx. 130 g

Applications

• Variable frequency drive control

• Proportional valve actuation

• Motor speed regulation

• Signal conversion for analog devices

• HVAC and environmental systems

Why Choose the Panasonic AFP0RDA4?

• Precise analog output in a compact module

• Easy integration with Panasonic FP0R PLCs

• Reliable performance in industrial environments

• Flexible configuration per channel
