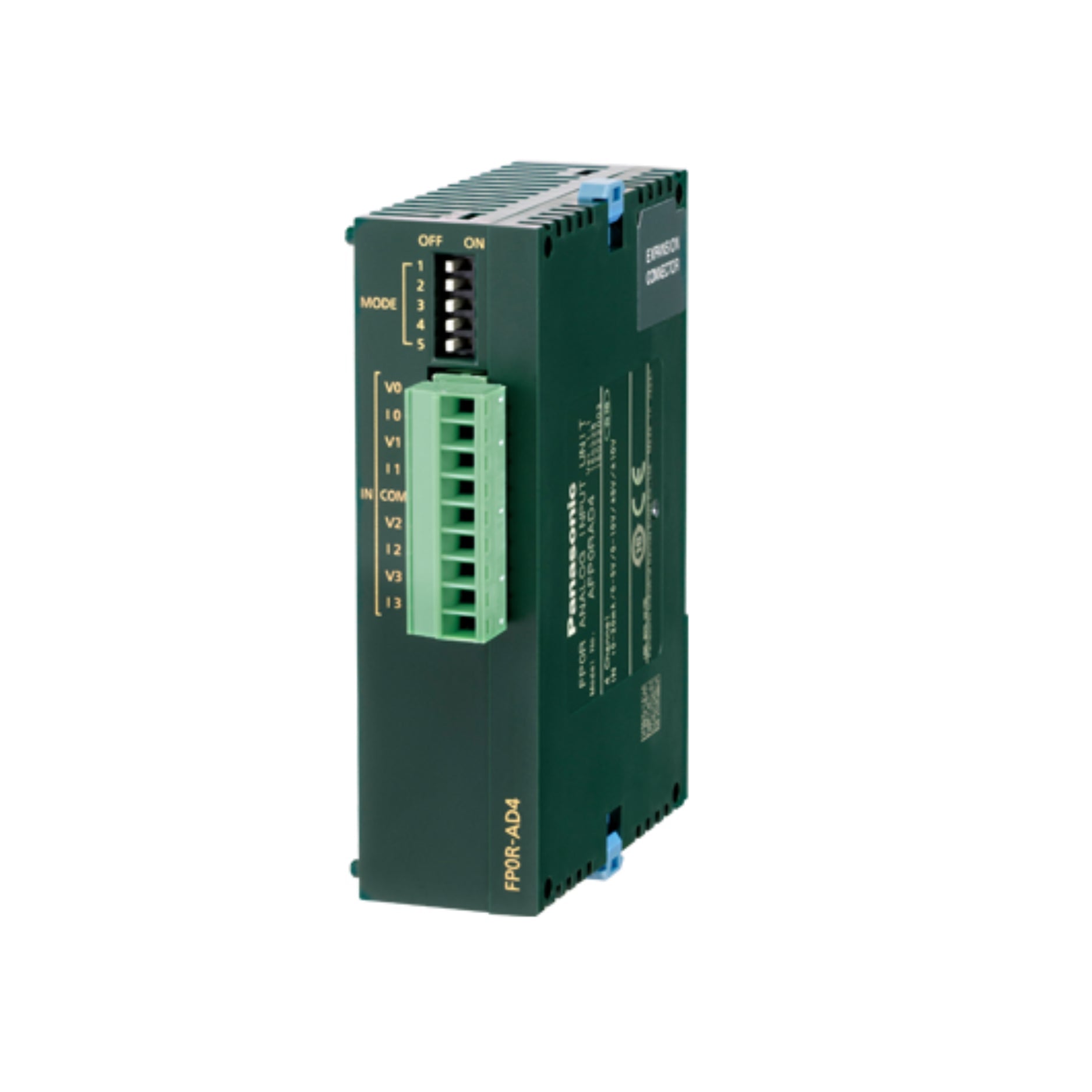

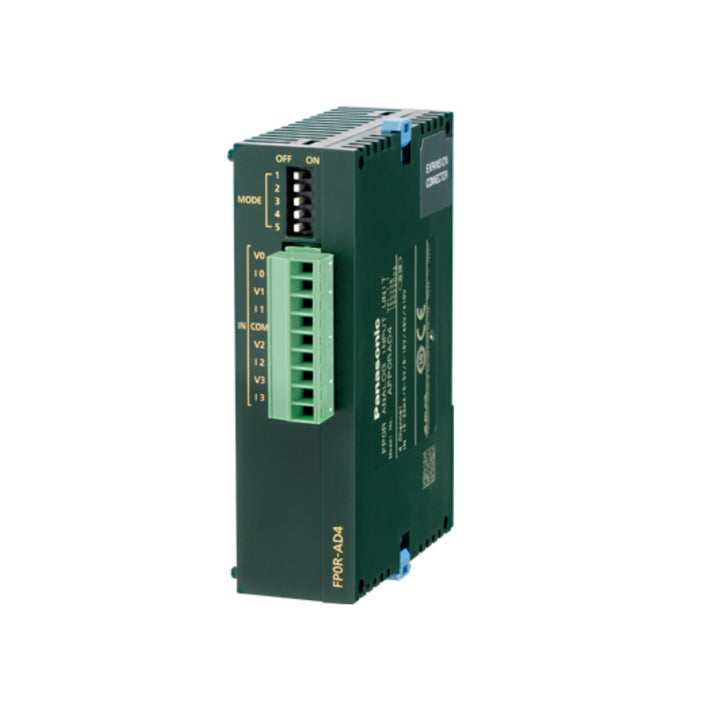

Panasonic AFP0RAD4 | 4-Channel Analog Input Module, 14-Bit

Panasonic AFP0RAD4 | 4-Channel Analog Input Module for FP0R Series PLCs

Overview

The Panasonic AFP0RAD4 is a 4-channel analog input module designed for the FP0R series programmable logic controllers (PLCs). It offers high-resolution (14-bit) analog-to-digital conversion and supports multiple input ranges, accommodating both voltage and current signals. This module is ideal for applications requiring precise analog data acquisition, such as process control, monitoring, and automation systems.

Key Features

• Four Analog Input Channels – Enables simultaneous measurement of multiple signals.

• High Resolution – 14-bit resolution provides accurate signal representation.

• Multiple Input Ranges:

  • Voltage: -10 to +10 V, -5 to +5 V, 0 to +10 V, 0 to +5 V

  • Current: 0 to 20 mA

• Fast Conversion Speed – 2 ms conversion time for all channels.

• Compact Design – Saves space in control panels.

• Easy Integration – Seamlessly connects with Panasonic FP0R series PLCs.

• DIN Rail Mountable – Simplifies installation in standard enclosures.

Technical Specifications

• Model: AFP0RAD4

• Number of Input Channels: 4

• Input Ranges:

  • Voltage: -10 to +10 V, -5 to +5 V, 0 to +10 V, 0 to +5 V

  • Current: 0 to 20 mA

• Resolution: 14-bit (1/16,000)

• Conversion Speed: 2 ms for all channels

• Input Impedance:

  • Voltage: Approximately 1 MΩ

  • Current: Approximately 250 Ω

• Absolute Maximum Input:

  • Voltage: -15 to +15 V

  • Current: -30 to +30 mA

• Accuracy:

  • Voltage: ±0.2% F.S. or less (at 25°C)

  • Current: ±0.3% F.S. or less (at 25°C)

• Operating Temperature: 0 to +55°C

• Mounting: DIN Rail

• Dimensions: [Refer to datasheet for detailed dimensions]

• Weight: Approximately 75 g

Applications

• Process Control Systems – Accurate monitoring and control of process variables.

• Industrial Automation – Integration with sensors and transducers for real-time data acquisition.

• Environmental Monitoring – Precise measurement of environmental parameters.

• Test and Measurement Equipment – High-resolution data collection for analysis.

Why Choose the Panasonic AFP0RAD4?

• Versatile Input Options – Accommodates various sensor types with multiple voltage and current input ranges.

• High Accuracy and Resolution – Ensures precise data acquisition for critical applications.

• Rapid Data Processing – Fast conversion speed supports real-time monitoring and control.

• Seamless PLC Integration – Designed specifically for compatibility with Panasonic FP0R series PLCs.

Order Now

Fast shipping and worldwide delivery available.
