Omron NS5-SQ11-V2

Omron NS5-SQ11-V2 | Compact 5.7" Touchscreen HMI for Efficient Machine Operation

Overview

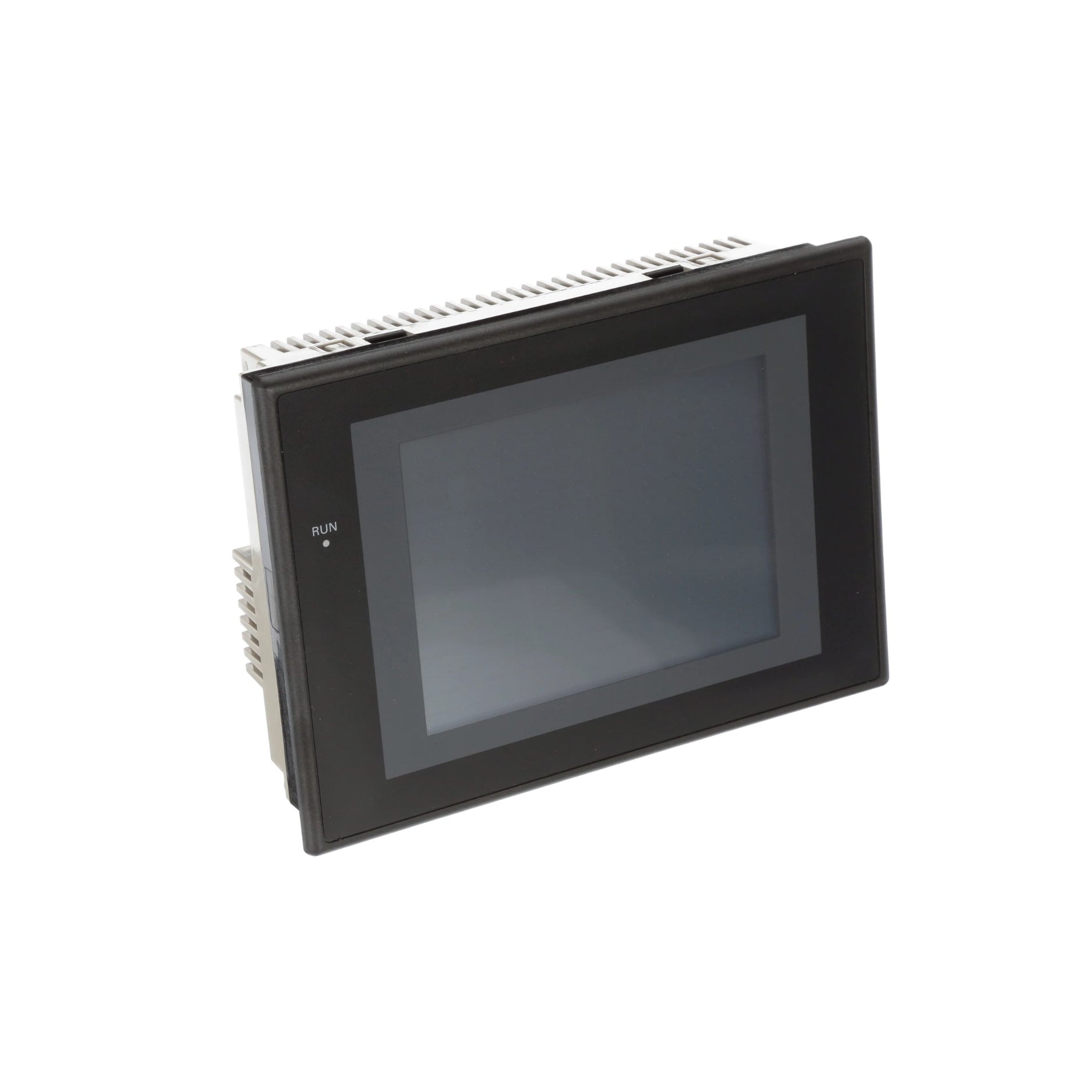

The Omron NS5-SQ11-V2 is a 5.7-inch STN color touchscreen HMI from the NS-series, designed for efficient operator interaction with industrial machines. It supports multiple communication interfaces including Ethernet, RS-232C, and RS-422A/485, enabling versatile connectivity with PLCs and other control devices.

Key Features

• Display Size: 5.7" STN color LCD with 320 × 240 resolution

• Color Depth: 256 colors for vivid display of alarms, data, and graphics

• Touchscreen: Analog resistive touch panel for easy operation

• Connectivity: Ethernet, RS-232C, RS-422A/485 ports for wide compatibility

• Storage: CompactFlash card slot for project data and logging

• Programming Software: Supports Omron CX-Designer

• Mounting: Panel mount with front IP65 protection

Technical Specifications

• Model: NS5-SQ11-V2

• Display Type: 5.7" STN color LCD

• Resolution: 320 × 240 pixels (QVGA)

• Backlight: LED

• Touch Panel: Analog resistive

• Interfaces: 1x Ethernet, 2x Serial (RS-232C + RS-422A/485)

• CF Card Slot: Yes

• Power Supply: 24 VDC

• Operating Temp: 0°C to 50°C

• Mounting: Panel mount

• Front Protection: IP65

• Certifications: CE, UL

Applications

• Packaging machines

• Material handling equipment

• OEM control panels

• Operator terminals in industrial environments

Why Choose NS5-SQ11-V2?

• Compact yet capable: Fits where space is limited

• Versatile networking: Ethernet and serial ports included

• Rugged build: Suitable for harsh industrial use

• Easy to program: Works with Omron CX-Designer software
