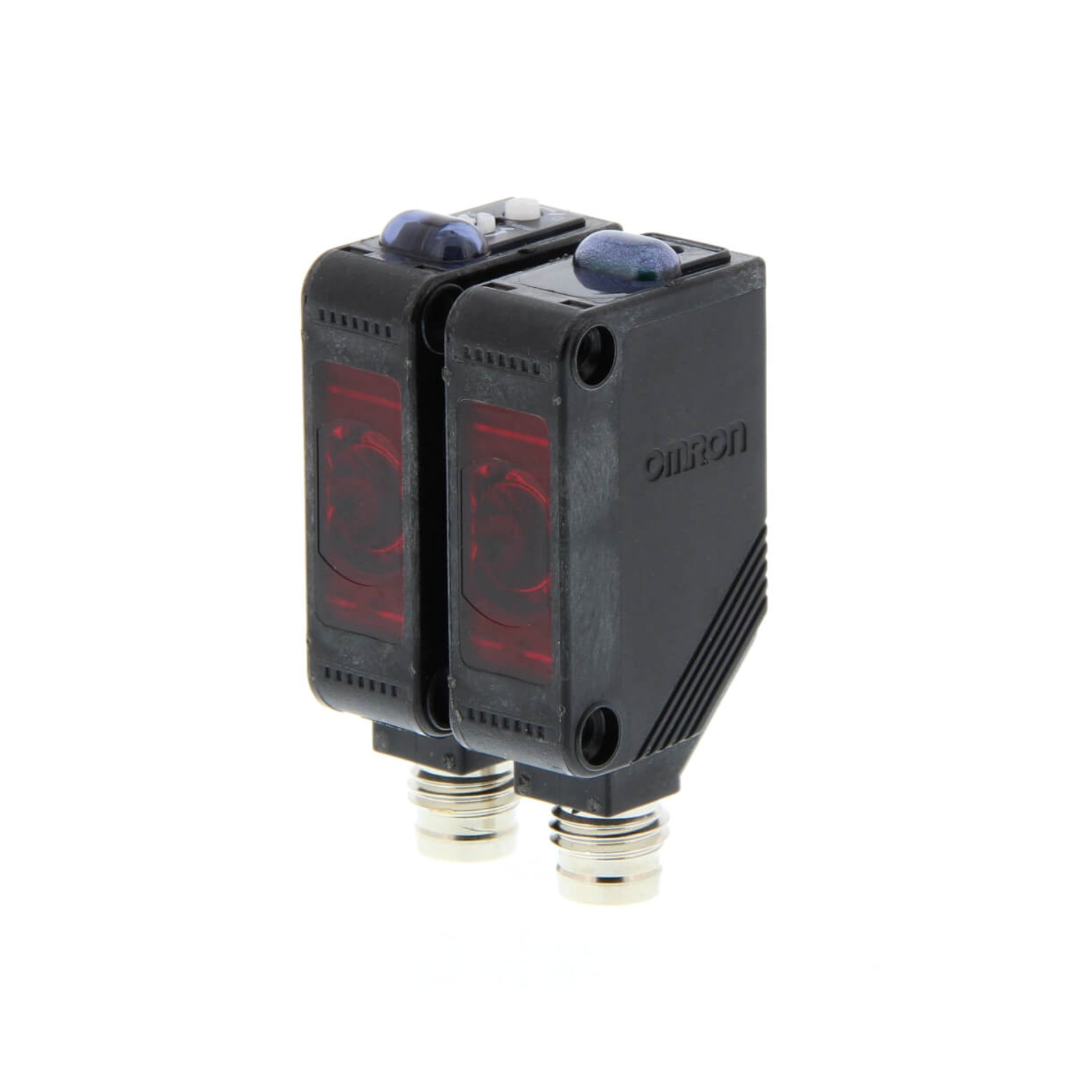

Omron E3Z-T86A | Compact Through-Beam Sensor for Precise Object Detection

Overview

The Omron E3Z-T86A is a through-beam photoelectric sensor offering long-distance detection up to 15 meters and a relay output (SPDT), ideal for fast and accurate object detection in industrial settings. With a wide power supply range of 12–240 VAC/DC, it ensures seamless integration into both AC and DC systems.

Key Features

• Sensing Method: Through-beam (requires emitter and receiver pair)

• Sensing Distance: Up to 15 meters

• Output Type: Relay (SPDT)

• Power Supply: 12–240 VAC/DC

• Compact Housing: Slim design suitable for tight installations

• Response Time: Fast response for real-time detection

• Enclosure Rating: IP67 for superior protection against dust and water

• Built-in Indicators: LED indicators for power and operation status

• High Stability: Reliable operation in varied lighting and environmental conditions

Technical Specifications

• Model: E3Z-T86A

• Sensing Distance: 15 m (with emitter/receiver)

• Light Source: Infrared LED

• Output Type: Relay SPDT (Form C)

• Power Supply: 12–240 VAC/DC

• Response Time: ≤ 20 ms

• Connection Method: Pre-wired or terminal block (variant dependent)

• Enclosure Rating: IP67

• Ambient Operating Temperature: –25°C to +55°C

• Material: PBT housing with PMMA lens

• Mounting: Side or front mounting with included bracket

• Dimensions: Approx. 10.8 × 20 × 31 mm

• Weight: Approx. 60 g

Applications

• Automated Conveyors

• Packaging Machines

• Elevator Doors

• Assembly Line Monitoring

• Object Counting Systems

Why Choose Omron E3Z-T86A?

• Extended sensing range in compact housing

• Universal power supply for easy system integration

• Relay output allows versatile signal handling

• Durable IP67 design for harsh industrial environments

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
