Omron E2B-M12KS04-M1-B1 | M12 Inductive Sensor

Omron E2B-M12KS04-M1-B1 | Compact, High-Reliability Inductive Sensor for Industrial Applications

Overview

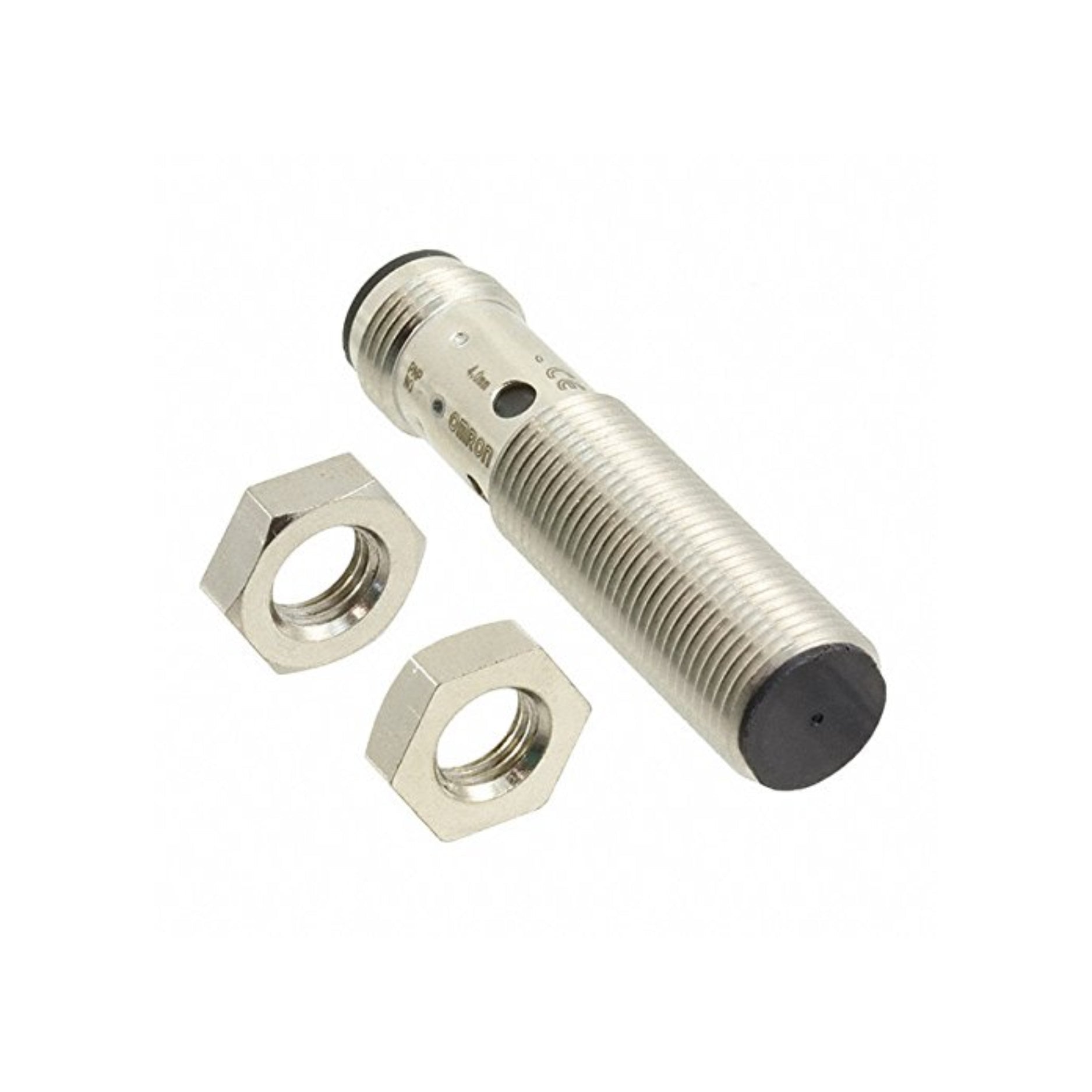

The Omron E2B-M12KS04-M1-B1 is a shielded M12 inductive proximity sensor offering a 4 mm sensing distance and PNP normally open (NO) output. Designed for durability and ease of integration, it features a nickel-plated brass housing, IP67 protection, and a standard M12 connector, making it suitable for a wide range of industrial environments.

Key Features

• Sensing Distance: 4 mm

• Output Type: PNP, Normally Open (NO)

• Mounting Type: Shielded (flush mount)

• Housing Material: Nickel-plated brass

• Connection Method: M12 connector (4-pin)

• Protection Rating: IP67 for dust-tight and water-resistant operation

• Operating Temperature Range: –25°C to +70°C

• Compact Design: Short body for space-constrained installations

• LED Indicator: 360° visibility for operation status

Technical Specifications

• Model: E2B-M12KS04-M1-B1

• Sensing Distance: 4 mm

• Output Configuration: PNP NO

• Power Supply Voltage: 10–30 VDC

• Current Consumption: ≤10 mA

• Max Load Current: 200 mA

• Response Frequency: 1 kHz

• Housing Diameter: M12

• Overall Length: 51 mm

• Thread Length: 31 mm

• Ambient Operating Temperature: –25°C to +70°C

• Vibration Resistance: 10–55 Hz, 1.5 mm double amplitude

• Shock Resistance: 1,000 m/s², 10 times each in X, Y, and Z directions

• Standards Compliance: CE, RoHS

Applications

• Conveyor Systems

• Packaging Machinery

• Automated Assembly Lines

• Material Handling Equipment

• General Industrial Automation

Why Choose Omron E2B-M12KS04-M1-B1?

• Reliable Detection: Accurate sensing of metal objects up to 4 mm

• Robust Construction: Durable housing for harsh environments

• Easy Integration: Standard M12 connector simplifies installation

• High Protection: IP67 rating ensures resistance to dust and water

• Compact Size: Ideal for installations with limited space

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
