Omron NX-OC4633 | 8-Channel Digital Output Module

Omron NX-OC4633 | Reliable 8-Channel Relay Output Module for Industrial Automation

Overview

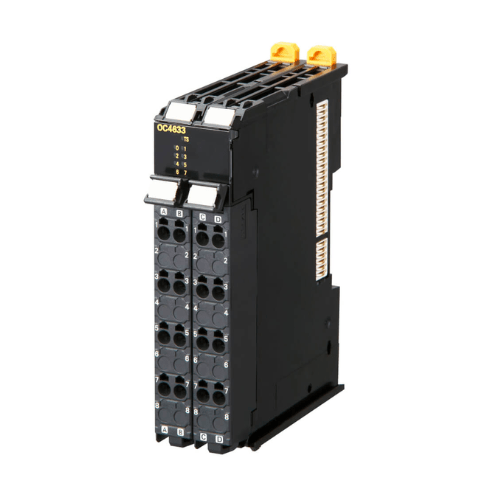

The Omron NX-OC4633 is an 8-channel relay output unit designed for seamless integration with Omron's NX-Series I/O systems. It provides reliable switching capabilities for both AC and DC loads, making it suitable for various industrial automation applications.

Key Features

• Output Channels: 8 relay outputs with Normally Open (NO) contacts

• Load Capacity: Supports up to 2 A per channel at 24 VDC or 250 VAC

• ON/OFF Response Time: 15 ms max for both ON and OFF operations

• Connection Type: Push-in terminals for secure and efficient wiring

• Compact Design: Measures 100 mm (H) × 24 mm (W) × 80 mm (D), optimizing control panel space

• Mounting: DIN rail compatible for straightforward installation

• Protection Rating: IP20, suitable for industrial environments

Technical Specifications

• Model Number: NX-OC4633

• Output Type: Relay, Normally Open (NO)

• Number of Outputs: 8

• Permitted Voltage at Output: 24 VDC or 250 VAC

• Output Current: 2 A per channel

• ON/OFF Response Time: 15 ms max

• I/O Connection Type: Push-in

• Number of I/O Connectors: 2

• Detachable I/O Connector: Yes

• Suitable for Safety Functions: No

• SIL According to IEC 61508: None

• Degree of Protection: IP20

• Dimensions: 100 mm (H) × 24 mm (W) × 80 mm (D)

• Weight: Approximately 167 g

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus

Applications

• Process Control Systems: Reliable switching of various process control elements

• Machine Automation: Control of actuators, solenoids, and other devices requiring relay outputs

• Building Automation: Integration into HVAC and lighting control systems

• Energy Management: Switching of loads in energy distribution systems

Why Choose Omron NX-OC4633?

• High Load Capacity: Handles up to 2 A per channel, accommodating various load requirements

• Versatile Compatibility: Supports both 24 VDC and 250 VAC loads

• Efficient Wiring: Push-in terminals facilitate quick and secure connections

• Compact Footprint: Saves space in control panels without compromising functionality

• Reliable Performance: Designed to meet industrial standards, ensuring dependable operation

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron NX-Series I/O modules, controllers, and other automation components to complete your system setup.
