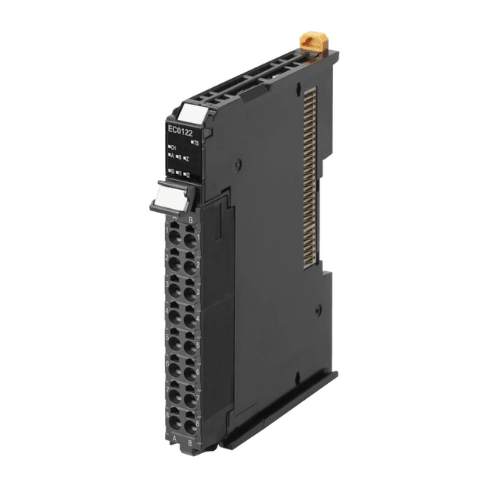

Omron NX-EC0122 | 2-Channel Encoder Input Module, High-Speed,

Omron NX-EC0122 | 2-Channel Encoder Input Module, High-Speed, Incremental

Overview

The Omron NX-EC0122 is a high-speed encoder input module designed for precise motion control applications in industrial automation. With two incremental encoder input channels, it provides accurate position and speed feedback for servo systems, conveyors, and automated machinery.

This module is compatible with Omron NX-series PLCs, offering seamless integration into motion control systems. The NX-EC0122 is ideal for applications requiring real-time position tracking, synchronization, and motion precision.

Key Features

• 2 Incremental Encoder Input Channels – Supports position and speed feedback
• High-Speed Pulse Processing – Ensures real-time motion control
• Supports Multiple Encoder Types – TTL, HTL, and differential line driver inputs
• Seamless Integration with NX-Series PLCs – Enables synchronized motion control
• Compact & DIN Rail Mountable – Allows for efficient panel installation
• Reliable and Durable for Industrial Environments

Technical Specifications

• Model: NX-EC0122
• Number of Encoder Inputs: 2
• Compatible Encoder Types: Incremental (TTL, HTL, Differential Line Driver)
• Pulse Frequency: High-speed processing for real-time motion tracking
• Compatible PLC Series: Omron NX Series
• Mounting: DIN Rail
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Certifications: CE, UL, RoHS

Applications

• Servo Motor Feedback – Provides precise position and speed control
• Conveyor & Material Handling Systems – Ensures accurate movement tracking
• Robotics & Automated Machinery – Supports high-precision motion synchronization
• CNC & Machine Tool Applications – Enables real-time position monitoring
• Industrial Motion Control Systems – Optimizes efficiency and accuracy

Why Choose the Omron NX-EC0122?

• Fast & Accurate Encoder Processing – Ideal for motion-critical applications
• Compatible with a Wide Range of Encoders – Provides flexibility in system design
• Seamless PLC Integration – Designed for NX-series motion control solutions
• Compact & Space-Saving Design – Perfect for control panel installations
• High Reliability & Durability – Built for demanding industrial environments

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
