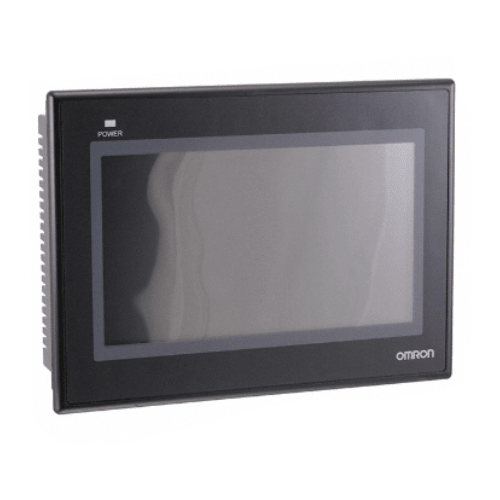

Omron NB7W-TW00B | 7-Inch HMI Touchscreen

Omron NB7W-TW00B | 7-Inch HMI Touchscreen

Overview:

The Omron NB7W-TW00B is a 7-inch Human-Machine Interface (HMI) from Omron’s NB series, designed to provide intuitive control and monitoring for industrial automation systems. Featuring a high-resolution TFT LCD display, multiple communication interfaces, and a durable design, it is an excellent choice for diverse automation applications.

Key Features:

• 7-Inch TFT LCD Display – 800 x 480 resolution, 65,536 colors for clear visuals.
• Multiple Communication Ports:
  • 2x RS-232 ports
  • 1x RS-422 port
  • 1x RS-485 port
  • 2x USB ports
• Durable Design: IP65-rated front panel for dust and water resistance.
• Easy Integration: Compatible with various Omron PLCs and automation devices.
• User-Friendly Interface: Intuitive navigation for industrial automation applications.

Technical Specifications:

• Model: NB7W-TW00B
• Screen Size: 7 inches
• Resolution: 800 x 480 pixels
• Color Support: 65,536 colors
• Connectivity: RS-232, RS-422, RS-485, USB
• Front Panel Rating: IP65
• Operating Temperature: 0 to 50°C
• Power Supply: 24 VDC ±15%
• Power Consumption: 7 W

Dimensions:

• Front Width: 202.0 mm
• Front Height: 148 mm
• Panel Cutout Width: 191 mm
• Panel Cutout Height: 137 mm
• Built-in Depth: 46 mm

Applications:

• Industrial Automation – Controls and monitors automation systems efficiently.
• Machine Interface – Provides a user-friendly graphical interface for operators.
• Manufacturing & Packaging – Ideal for automated assembly lines and packaging systems.
• Process Control – Enables real-time monitoring and control of industrial processes.

Why Choose the Omron NB7W-TW00B?

The NB7W-TW00B is a cost-effective and versatile HMI solution, providing high-resolution graphics, multiple connectivity options, and an IP65-rated front panel for industrial environments. It is an ideal choice for monitoring and control applications in manufacturing, packaging, and process automation.

Discontinuation Notice:

This model is scheduled for end-of-production by March 31, 2025. Consider checking for alternative models if planning long-term integration.
