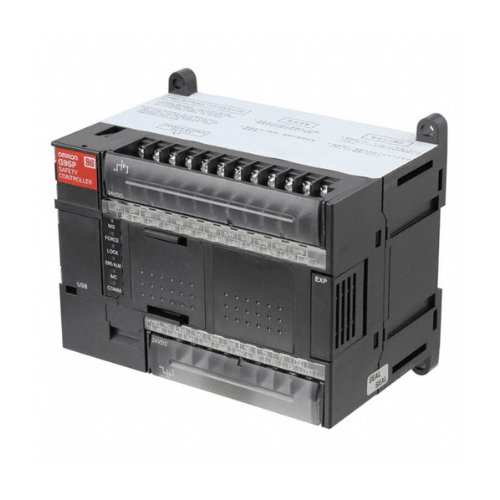

Omron G9SP-N20S | Standalone Safety Controller with 20 Safety

Omron G9SP-N20S | Standalone Safety Controller

Overview:

The Omron G9SP-N20S is a programmable safety controller designed for machine safety applications, providing flexible and scalable safety control. With 20 safety inputs, 8 safety outputs, and 4 test outputs, it offers enhanced safety monitoring and control for industrial automation systems.

Key Features:

• 20 Safety Inputs – Supports multiple safety devices such as emergency stops, light curtains, and safety door switches.
• 8 Safety Outputs (PNP) – Provides reliable control of safety relays and actuators.
• 4 Test Outputs – Ensures diagnostic monitoring and sensor validation.
• Configurable via Software – Uses G9SP Configurator for easy setup and programming.
• Standalone Safety Controller – Ideal for machines without a dedicated safety PLC.
• Compact & Modular Design – Saves space while offering scalable safety control.
• Built-in Diagnostics & Monitoring – Enables real-time safety system status updates.

Technical Specifications:

• Model: G9SP-N20S
• Number of Safety Inputs: 20
• Number of Safety Outputs: 8 (PNP type)
• Number of Test Outputs: 4
• Configuration Software: G9SP Configurator
• Communication Interface: No direct network communication (requires optional modules for Ethernet/IP or CompoNet)
• Power Supply: 24V DC
• Mounting Type: DIN rail

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 95% (non-condensing)
• Vibration Resistance: 10-55 Hz, 0.35 mm amplitude

Applications:

• Machine Safety Control – Monitors emergency stops, safety doors, and light curtains.
• Industrial Automation – Ensures safe operation of manufacturing systems.
• Robotic Safety Integration – Provides motion control safety for robotic cells.
• Press & Packaging Machines – Protects operators from hazardous machine movements.

Why Choose the Omron G9SP-N20S?

The Omron G9SP-N20S offers a flexible and efficient safety control solution, ideal for machines that require independent safety systems. With programmable configuration, scalable design, and reliable safety monitoring, it is a cost-effective and easy-to-implement solution for industrial safety applications.
