Overview:

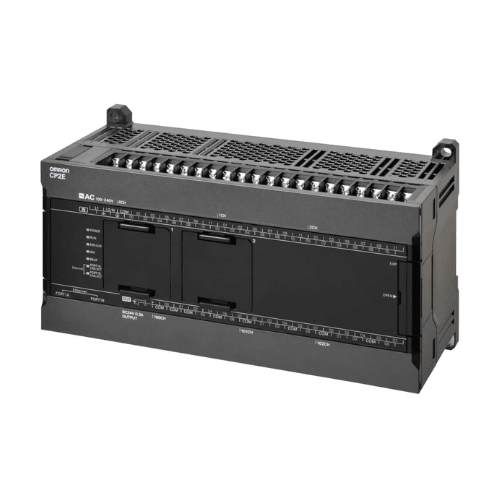

The Omron CP2E-N60DT1-D is a high-performance compact PLC, designed for machine automation and industrial control applications. With built-in Ethernet, 60 I/O points, and advanced motion control functions, this PLC provides reliable and flexible automation in a compact and cost-effective package.

Key Features:

• Total I/O Points: 60
  • 36 Digital Inputs (24V DC)
  • 24 Digital Outputs (Transistor, Sink Type)
• Built-in Ethernet Port – Enables network connectivity and remote monitoring.
• Advanced Motion Control – Supports high-speed pulse output for precise positioning applications.
• Data Logging & Monitoring – Facilitates real-time machine performance tracking.
• Expandable I/O Support – Compatible with CP1W and CP1H expansion units.
• Compact & Durable Design – Space-saving DIN rail mountable PLC.
• Program Capacity: 30k steps, ensuring complex automation logic processing.

Technical Specifications:

• Model: CP2E-N60DT1-D
• I/O Configuration:
  • Digital Inputs: 36 (24V DC)
  • Digital Outputs: 24 (Transistor Sink)
• Communication Interfaces:
  • 1x Ethernet Port
  • 1x RS-232C
  • 1x RS-485 (Modbus-RTU Support)
• Pulse Output: 2-axis (100 kHz max) for motion control
• Power Supply: 24V DC
• Mounting Type: DIN rail / panel mount

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 90% (non-condensing)
• Vibration Resistance: 10-57 Hz, 0.075 mm amplitude

Applications:

• Machine Automation – Provides precise and efficient control of small-to-medium machines.
• Industrial Process Control – Ensures smooth operation of automated production lines.
• Material Handling & Packaging – Optimizes conveyor and robotic systems.
• IoT & Remote Monitoring – Ethernet connectivity allows for seamless integration with SCADA & cloud platforms.

Why Choose the Omron CP2E-N60DT1-D?

The Omron CP2E-N60DT1-D is a powerful and versatile PLC, offering built-in Ethernet, advanced motion control, and flexible expansion options. Its compact size, fast processing, and seamless communication support make it an excellent choice for industrial automation and machine control applications.
