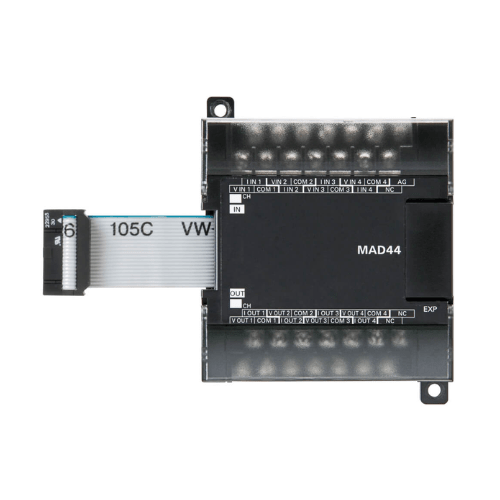

Omron CP1W-MAD44 | Analog I/O Expansion Module, 4 Analog Inputs,

Omron CP1W-MAD44 | Analog I/O Expansion Module, 4 Inputs, 4 Outputs

Overview

The Omron CP1W-MAD44 is an analog I/O expansion module designed for CP1H and CP1L PLCs, providing 4 analog inputs and 4 analog outputs for precise process control applications. This module enables high-accuracy data acquisition and signal output, making it ideal for industrial automation systems requiring analog signal processing.

The CP1W-MAD44 allows for seamless integration with Omron PLCs, supporting voltage and current signal types, ensuring flexibility for a wide range of sensors and actuators.

Key Features

• 4 Analog Inputs – Supports voltage and current input signals
• 4 Analog Outputs – Provides precise control of analog devices
• Compatible with CP1H & CP1L PLCs – Ensures seamless expansion
• Voltage & Current Signal Support – Increases flexibility in industrial automation
• High-Resolution Signal Processing – Improves accuracy in data acquisition and control

Technical Specifications

• Model: CP1W-MAD44
• Series: CP1W Expansion Modules
• Analog Inputs: 4
• Analog Outputs: 4
• Input Signal Types: Voltage (0-10V), Current (4-20mA)
• Output Signal Types: Voltage (0-10V), Current (4-20mA)
• Resolution: High resolution for accurate analog signal processing
• Compatibility: CP1H and CP1L PLCs
• Mounting: Directly attaches to CP1 series PLCs
• Operating Temperature: 0°C to 55°C (32°F to 131°F)

Applications

• Temperature & Process Control – Supports precise analog data acquisition
• Industrial Automation & Machine Control – Enables analog sensor integration
• Motion & Position Control – Allows smooth control of variable-speed drives
• Packaging & Manufacturing – Enhances real-time process monitoring
• Water Treatment & Utilities – Supports flow and level measurement applications

Why Choose the Omron CP1W-MAD44?

• Expands CP1H/CP1L PLC Capabilities – Provides additional analog I/O flexibility
• Supports Voltage & Current Signals – Increases sensor and actuator compatibility
• High-Resolution Analog Processing – Ensures precise control and monitoring
• Seamless PLC Integration – Simple plug-and-play expansion

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
