Overview:

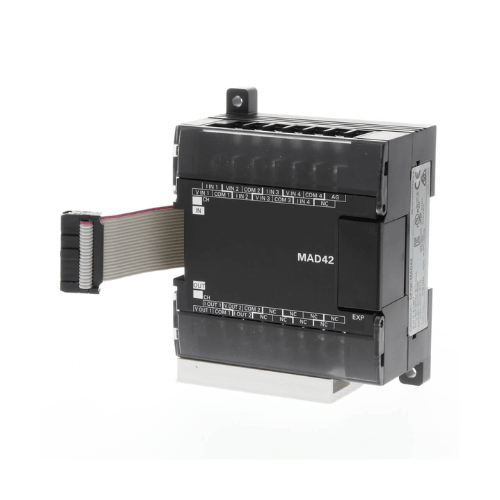

The Omron CP1W-MAD42 is an analog input/output expansion module designed for CP-series PLCs, offering 4 analog inputs and 2 analog outputs. This module enables high-precision analog signal processing, making it ideal for sensor integration, motor speed control, and process automation.

Key Features:

• 4 Analog Input Channels – Supports various voltage and current signal types.
• 2 Analog Output Channels – Enables precise process and actuator control.
• Multiple Input Ranges:
  • Voltage: 0-10V, 1-5V
  • Current: 4-20mA
• Multiple Output Ranges:
  • Voltage: 0-10V
  • Current: 4-20mA
• High-Resolution Conversion – Ensures accurate and stable analog signal processing.
• Compact & Space-Saving Design – Easily integrates with CP1L and CP1H PLCs.
• Fast Update Rate – Optimized for real-time industrial control applications.

Technical Specifications:

• Model: CP1W-MAD42
• Number of Analog Inputs: 4
• Number of Analog Outputs: 2
• Input Signal Types:
  • Voltage: 0-10V, 1-5V
  • Current: 4-20mA
• Output Signal Types:
  • Voltage: 0-10V
  • Current: 4-20mA
• Resolution: 12-bit
• Conversion Time: Fast response for real-time automation
• Power Supply: Provided via CP-series PLC backplane
• Mounting Type: DIN rail / direct PLC attachment

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 90% (non-condensing)
• Vibration Resistance: 10-57 Hz, 0.075 mm amplitude

Applications:

• Industrial Automation – Provides real-time data acquisition for precise control.
• Motor Speed Control – Enables smooth motor operation and torque adjustments.
• Process Control Systems – Facilitates accurate monitoring of analog signals.
• SCADA & IoT Integration – Ensures accurate signal transmission for monitoring systems.

Why Choose the Omron CP1W-MAD42?

The Omron CP1W-MAD42 offers high-precision analog input and output control, making it a reliable and cost-effective solution for industrial automation and process control. With multiple input and output signal options, high resolution, and seamless integration with CP-series PLCs, this module ensures efficient and stable performance in demanding environments.
