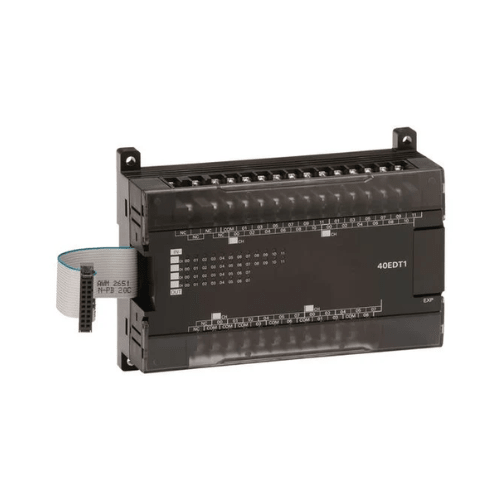

Omron CP1W-40EDT1 | Digital I/O Expansion Module | 24 Inputs, 16

Omron CP1W-40EDT1 | Digital I/O Expansion Module | 24 Inputs, 16 PNP Outputs

Overview:

The Omron CP1W-40EDT1 is a digital I/O expansion module designed to increase the input and output capacity of Omron CP1 series PLCs. With 24 digital inputs and 16 PNP transistor outputs, this module enables precise control of industrial equipment, making it ideal for automation, machine control, and process applications.

Key Features:

• 24 Digital Inputs – Supports 24V DC signals, configurable as PNP or NPN.
• 16 PNP Transistor Outputs – Provides 0.3 A per output, suitable for solenoids, relays, and indicators.
• Fast Response Time – Configurable OFF/ON delay from 0 to 32 ms for optimized signal timing.
• Compact Design – Space-saving 90 mm (H) x 150 mm (W) x 50 mm (D), 320 g for efficient control panel integration.
• Seamless Integration – Fully compatible with Omron CP1 series PLCs, simplifying system expansion.

Technical Specifications:

• Model: CP1W-40EDT1
• Digital Inputs: 24 points (24 VDC, PNP/NPN)
• Digital Outputs: 16 PNP transistor outputs (4.5-30 V, 0.3 A per point)
• Response Time: Configurable 0-32 ms
• Power Supply: 24 VDC
• Mounting: DIN rail
• Dimensions: 90 mm (H) x 150 mm (W) x 50 mm (D)
• Weight: Approximately 320 g

Applications:

• Industrial Automation – Expands I/O capacity for PLC-based control systems.
• Process Control – Suitable for assembly lines, packaging, and material handling.
• Building Automation – Ideal for HVAC, lighting, and security system management.

Why Choose the Omron CP1W-40EDT1?

The Omron CP1W-40EDT1 is a reliable and flexible I/O expansion module, offering fast response times, compact design, and seamless PLC integration. Its robust transistor outputs and versatile input configuration make it an essential component for modern industrial automation.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
