Overview:

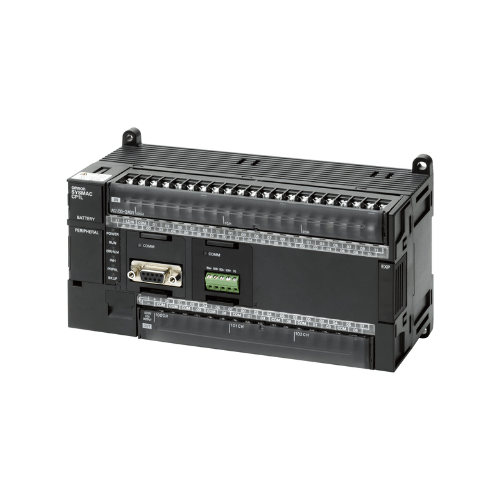

The Omron CP1L-M60DR-A is a compact and versatile Programmable Logic Controller (PLC) designed to meet the demands of various industrial automation applications. It offers a robust set of features, including a substantial number of I/O points, ample program and data memory, and flexible communication options, making it suitable for controlling and monitoring complex systems.

Key Features:

• Power Supply: Operates on a 100-240 VAC power source.
• Digital Inputs: Equipped with 36 inputs compatible with 24 VDC signals, supporting both PNP and NPN configurations.
• Relay Outputs: Provides 24 relay outputs rated at 2 A each, allowing direct control of various actuators.
• Program Capacity: Supports up to 10K steps, enabling the implementation of intricate control logic.
• Data Memory: Includes 32K words of data memory for storing variables, parameters, and other essential data.
• Communication Ports: Features a built-in USB port for programming and monitoring purposes.
• Expansion Capability: Supports up to 3 expansion units, allowing for a maximum of 180 local I/O points.
• High-Speed Counters: Incorporates 4 channels of high-speed counters with a maximum input frequency of 100 kHz.
• Pulse Outputs: Capable of generating pulse outputs for precise motion control applications.
• Real-Time Clock: Equipped with a real-time clock for time-dependent control tasks.
• Function Block Programming: Supports function block programming, facilitating modular and reusable code development.
• Battery-Free Memory Backup: Ensures program and data retention without the need for a battery.

Technical Specifications:

• Input Type: PNP/NPN
• Output Type: Relay
• Logic Execution Time: Approximately 0.55 µs per basic instruction
• Number of USB Ports: 1
• Communication Options: Expandable with options such as RS-232C, RS-422, RS-485, and Ethernet via optional boards
• Encoder Input Channels: 4
• Maximum Number of Analog I/O Channels: Up to 25 with appropriate expansion units
• Operating Temperature Range: 0-55°C
• Dimensions: Height: 90 mm, Width: 195 mm, Depth: 85 mm
• Weight: Approximately 820 g

Applications:

• Industrial Automation: Ideal for automating manufacturing processes, machinery control, and production lines.
• Material Handling: Suitable for conveyor systems, sorting machines, and automated storage and retrieval systems.
• Packaging: Effective in controlling packaging machines, labeling systems, and bottling lines.
• Building Automation: Applicable in HVAC control, lighting systems, and security systems within commercial buildings.

Why Choose the Omron CP1L-M60DR-A?

The Omron CP1L-M60DR-A PLC offers a comprehensive solution for various automation needs, combining a compact form factor with powerful features. Its flexibility in I/O configurations, ample memory capacities, and support for high-speed operations make it a reliable choice for both simple and complex control tasks. Additionally, its expandability ensures adaptability to future system enhancements, providing a scalable solution for growing automation requirements.
