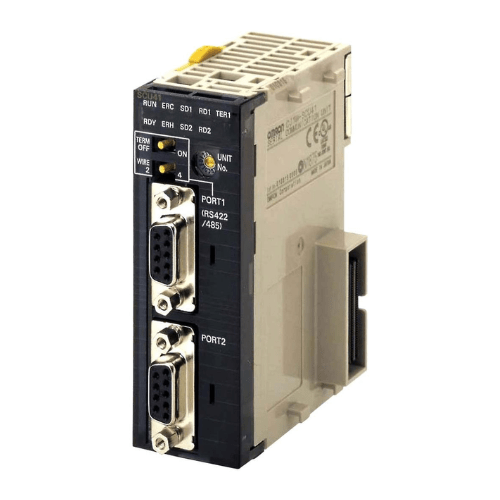

Omron CJ1W-SCU41-V1 | Serial Communication Unit for CJ-Series

Omron CJ1W-SCU41-V1 | Serial Communication Unit for CJ-Series PLCs

Overview:

The Omron CJ1W-SCU41-V1 is a serial communication unit designed for CJ-series PLCs, providing flexible RS-232C and RS-422/485 connectivity for industrial automation. It enables seamless data exchange between Omron PLCs and various field devices, such as barcode readers, temperature controllers, inverters, and HMIs.

Key Features:

• Supports Multiple Protocols – Enables RS-232C and RS-422/485 communication.
• Two Serial Ports – Allows for simultaneous communication with multiple devices.
• Flexible Baud Rate Support – Configurable up to 115.2 kbps for high-speed data exchange.
• Modbus-RTU Support – Compatible with Modbus slave/master functionality.
• Seamless PLC Integration – Works with CJ-series PLCs for enhanced automation.
• LED Status Indicators – Provides real-time communication status feedback.
• Compact Design – Saves panel space while ensuring high reliability and efficiency.

Technical Specifications:

• Model: CJ1W-SCU41-V1
• Number of Serial Ports: 2 (1x RS-232C, 1x RS-422/485)
• Baud Rate: Up to 115.2 kbps
• Communication Protocols:
  • RS-232C
  • RS-422/485
  • Modbus-RTU (Master/Slave)
  • Custom Protocols via PLC Programming
• Power Supply: Via CJ-series PLC backplane
• Mounting Type: DIN rail (CJ-series PLC rack)

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 90% (non-condensing)
• Vibration Resistance: 10-57 Hz, 0.075 mm amplitude

Applications:

• Industrial Automation – Facilitates real-time communication between PLCs and field devices.
• Data Acquisition Systems – Enables seamless integration of sensors and controllers.
• HMI & SCADA Connectivity – Supports human-machine interface communication.
• Machine-to-Machine Communication – Ensures smooth data transfer between automation components.

Why Choose the Omron CJ1W-SCU41-V1?

The Omron CJ1W-SCU41-V1 serial communication unit is a versatile and high-performance module, offering reliable data exchange, flexible connectivity options, and seamless PLC integration. Whether used for Modbus communication, sensor integration, or industrial device control, this unit ensures efficient and stable communication in automation environments.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
