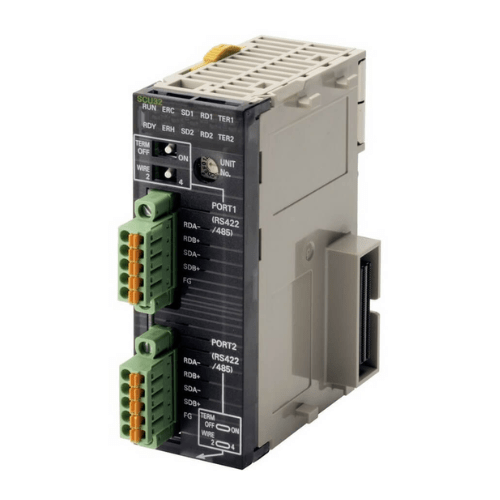

Omron CJ1W-SCU32 | Serial Communications Unit

Omron CJ1W-SCU32 | High-Speed Serial Communications Unit for CJ-Series PLCs

Overview

The Omron CJ1W-SCU32 is a high-speed serial communications unit designed for CJ-Series PLCs, providing two RS-422/485 ports for versatile serial communication. It supports multiple communication modes, including Protocol Macro, Host Link, 1:N NT Link, No Protocol, and Serial Gateway (compatible with CompoWay/F, Modbus-RTU, Modbus-ASCII, and Host Link protocols). This unit enables seamless integration and communication with various external devices such as HMIs, barcode readers, and other serial devices.

Key Features

• Dual RS-422/485 Ports: Facilitates simultaneous communication with multiple serial devices.

• High-Speed Communication: Supports baud rates up to 230 kbps for efficient data transfer.

• Protocol Macro Support: Allows custom protocol creation for tailored communication needs.

• Versatile Communication Modes: Includes Host Link, 1:N NT Link, No Protocol, and Serial Gateway.

• Modbus Compatibility: Functions as a Modbus RTU Slave, enhancing interoperability with Modbus devices.

• Compact Design: Maintains the CJ-Series' compact form factor, saving panel space.

Technical Specifications

• Model Number: CJ1W-SCU32

• Communication Ports: 2x RS-422/485

• Supported Protocols: Protocol Macro, Host Link, 1:N NT Link, No Protocol, Serial Gateway (CompoWay/F, Modbus-RTU, Modbus-ASCII, Host Link)

• Maximum Baud Rate: 230 kbps

• Dimensions: Height: 90 mm, Width: 31 mm, Depth: 81.9 mm

• Weight: Approximately 170 g

• Mounting: Compatible with CJ-Series PLC racks

Applications

• Industrial Automation: Facilitates communication between CJ-Series PLCs and various serial devices such as HMIs, barcode scanners, and printers.

• Data Acquisition Systems: Enables data collection from sensors and instruments with serial interfaces.

• Process Control: Integrates with devices like temperature controllers and variable frequency drives for comprehensive process management.

Why Choose the CJ1W-SCU32?

• Enhanced Communication Capabilities: Expands the communication options of CJ-Series PLCs, allowing integration with a wide range of serial devices.

• Flexible Protocol Support: Accommodates various communication protocols, providing adaptability in diverse industrial environments.

• Reliable Performance: Delivers high-speed, stable communication essential for real-time industrial applications.

Order Now

In stock and ready for immediate shipment. Enhance your CJ-Series PLC system's communication capabilities with the Omron CJ1W-SCU32 Serial Communications Unit.
