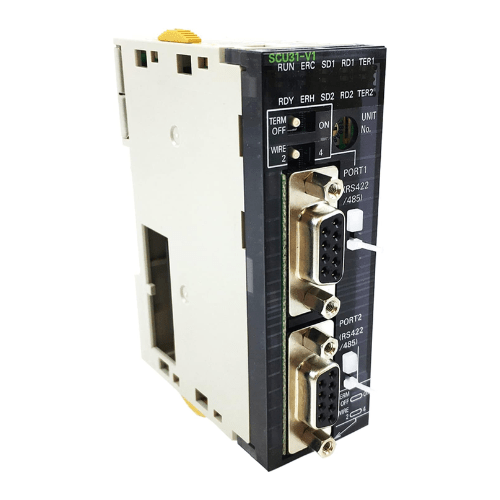

Omron CJ1W-SCU31-V1 | Serial Communication Unit with RS-232C

Omron CJ1W-SCU31-V1 | Serial Communication Unit for CJ-Series PLCs

Overview:

The Omron CJ1W-SCU31-V1 is a serial communication unit designed for CJ-series PLCs, providing RS-232C and RS-422/485 communication for connecting external devices such as barcode readers, temperature controllers, inverters, and HMIs. This module ensures high-speed and reliable serial data exchange, making it ideal for industrial automation applications.

Key Features:

• Dual Serial Ports:
  • 1x RS-232C Port for standard device communication
  • 1x RS-422/485 Port for long-distance and multi-device communication
• High-Speed Data Exchange – Supports baud rates up to 115.2 kbps.
• Modbus-RTU Support – Compatible with Modbus Master/Slave configurations.
• Custom Protocol Support – Allows flexible communication with various industrial devices.
• LED Status Indicators – Provides real-time diagnostics for communication status.
• Seamless PLC Integration – Fully compatible with Omron CJ-series PLCs.
• Compact & Space-Saving Design – Optimized for efficient panel installation.

Technical Specifications:

• Model: CJ1W-SCU31-V1
• Number of Ports:
  • 1x RS-232C
  • 1x RS-422/485
• Baud Rate: Up to 115.2 kbps
• Supported Protocols:
  • RS-232C
  • RS-422/485
  • Modbus-RTU (Master/Slave)
  • Custom Protocols via PLC Programming
• Power Supply: Provided via CJ-series PLC backplane
• Mounting Type: DIN rail (CJ-series PLC rack)

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 90% (non-condensing)
• Vibration Resistance: 10-57 Hz, 0.075 mm amplitude

Applications:

• Industrial Automation – Enables seamless communication between PLCs and field devices.
• Data Acquisition Systems – Supports sensor and measurement device integration.
• HMI & SCADA Connectivity – Facilitates real-time monitoring and control.
• Machine-to-Machine Communication – Ensures smooth data transfer in automated environments.

Why Choose the Omron CJ1W-SCU31-V1?

The Omron CJ1W-SCU31-V1 is a versatile and high-performance serial communication unit, offering dual-port flexibility, Modbus compatibility, and reliable integration with CJ-series PLCs. Its fast data exchange, real-time diagnostics, and customizable protocol support make it an essential component for modern industrial automation systems.
