Omron CJ1W-OD232 | Digital Output Module | 32 Points | 24V DC

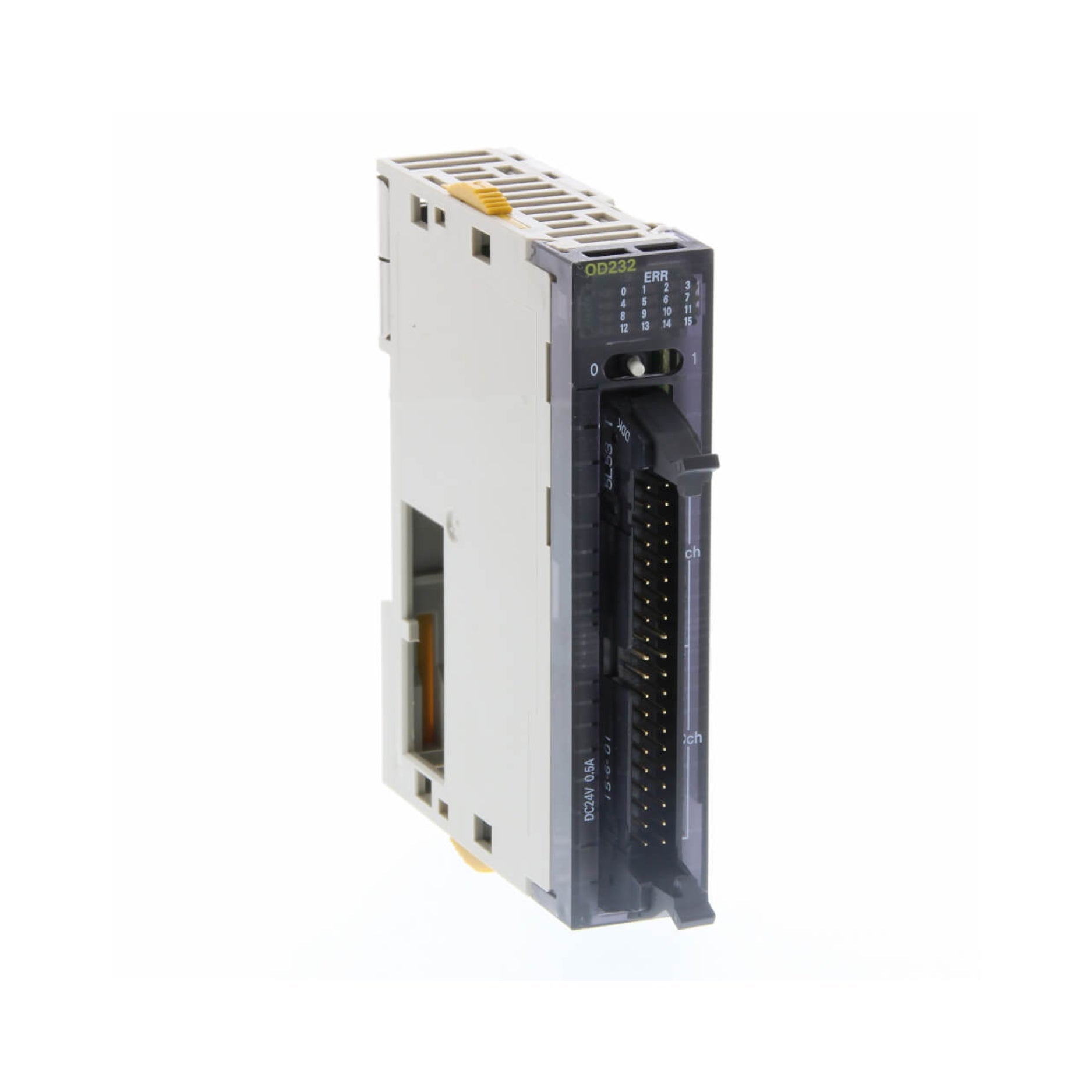

Omron CJ1W-OD232 | 32-Point Digital Output Module for CJ-Series PLCs

Overview:

The Omron CJ1W-OD232 is a high-density digital output module designed for use with Omron CJ-series PLCs. Featuring 32 transistor outputs (sinking type) operating at 24V DC, this module provides fast and reliable output switching for industrial automation applications. Its compact design and high channel count make it ideal for machine control, process automation, and industrial I/O expansion.

Key Features:

• 32 Digital Outputs – High-density 24V DC transistor outputs.
• Fast Switching Speed – Supports high-speed control applications.
• Compact & Space-Saving Design – Ideal for large I/O systems.
• Sinking (NPN) Transistor Outputs – Ensures reliable signal transmission.
• Seamless Integration – Designed for Omron CJ-series PLCs.
• LED Indicators – Provides visual status of each output.

Technical Specifications:

• Model: CJ1W-OD232
• Output Type: Transistor (NPN, sinking)
• Number of Outputs: 32
• Rated Output Voltage: 24V DC
• Max. Load Current per Output: 0.5A
• Response Time: 0.1 ms max
• Output Common Terminal: 4 (8 points/common)
• Connection Type: MIL Connector
• Module Power Consumption: 50mA max
• Certifications:
  • CE: Yes
  • UL (cULus): Yes
  • RoHS Compliant: Yes

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Relative Humidity: 10% to 95% (non-condensing)
• Vibration Resistance: 10 to 57 Hz, 0.075 mm amplitude
• Shock Resistance: 150 m/s² (15G)

Applications:

• Industrial Automation – Provides reliable output switching for PLC-controlled processes.
• Machine Control Systems – Enables precise control of actuators, solenoids, and relays.
• Packaging & Assembly Lines – Supports fast and accurate production line automation.
• Process Control – Ensures efficient operation of industrial machinery.

Why Choose the Omron CJ1W-OD232?

The Omron CJ1W-OD232 is a compact, high-performance digital output module, designed for CJ-series PLCs. With 32 fast-switching transistor outputs, seamless integration, and reliable operation, it is an excellent choice for industrial control applications requiring precise and efficient digital output management.
