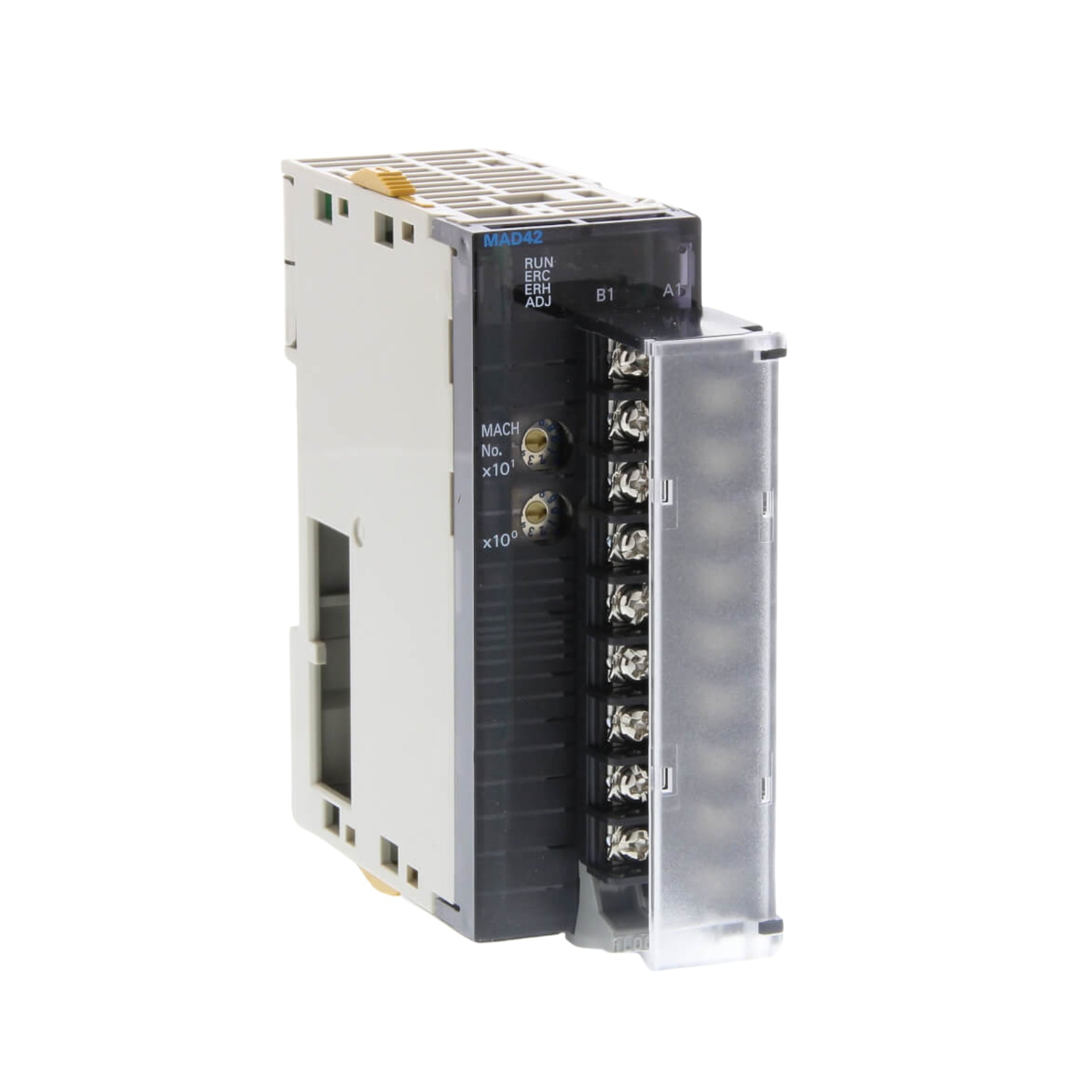

Omron CJ1W-MAD42 | Analog I/O Module

Omron CJ1W-MAD42 | 4-Input, 2-Output Analog I/O Module for CJ Series PLCs

Overview

The Omron CJ1W-MAD42 is an analog I/O module designed for the CJ Series PLCs, providing 4 analog inputs and 2 analog outputs. It supports various voltage and current signal ranges, offering flexibility for diverse industrial applications. Equipped with features like scaling, peak value holding, and disconnection detection, it ensures accurate and reliable analog signal processing.

Key Features

• Analog Inputs: 4 channels supporting voltage and current signals

• Analog Outputs: 2 channels supporting voltage and current signals

• Input Signal Ranges: 1–5 V, 0–5 V, 0–10 V, -10–10 V, 4–20 mA

• Output Signal Ranges: 1–5 V, 0–5 V, 0–10 V, -10–10 V, 4–20 mA

• Resolution: Selectable 1:4000 or 1:8000

• Conversion Period: 1 ms/point or 500 µs/point

• Functions: Scaling, mean value processing, peak value holding, input disconnection detection, offset/gain adjustment

• Compact Design: 31 mm (W) × 90 mm (H) × 65 mm (D)

• Mounting: DIN rail or panel mount

• Compatibility: Seamlessly integrates with CJ Series PLCs

Technical Specifications

• Model Number: CJ1W-MAD42

• Series: CJ Series

• Number of Analog Inputs: 4

• Number of Analog Outputs: 2

• Input Signal Ranges: 1–5 V, 0–5 V, 0–10 V, -10–10 V, 4–20 mA

• Output Signal Ranges: 1–5 V, 0–5 V, 0–10 V, -10–10 V, 4–20 mA

• Resolution: 1:4000 or 1:8000

• Conversion Period: 1 ms/point or 500 µs/point

• Accuracy at 25°C: ±0.2% (voltage input), ±0.4% (current input), ±0.3% (voltage output), ±0.3% (current output)

• Power Consumption: 580 mA max at 5 VDC

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +75°C

• Operating Humidity: 10% to 90% (non-condensing)

• Dimensions: 31 mm (W) × 90 mm (H) × 65 mm (D)

• Weight: Approximately 150 g

• Certifications: CE, UL, RoHS

Applications

• Process Control: Accurate monitoring and control of analog signals in chemical and manufacturing processes

• Machine Automation: Integration of analog sensors for temperature, pressure, and flow measurements

• Data Acquisition: High-resolution data collection for quality control and analysis

• Energy Management: Monitoring voltage and current inputs for efficient energy usage

Why Choose Omron CJ1W-MAD42?

• Versatile Signal Support: Handles multiple voltage and current ranges for both inputs and outputs

• High Precision: Offers high-resolution conversion for accurate analog data processing

• Advanced Functions: Includes scaling, peak holding, and disconnection detection for enhanced performance

• Seamless Integration: Designed specifically for CJ Series PLCs, ensuring compatibility and ease of installation

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CJ Series PLCs, I/O modules, and accessories to complete your automation system.
