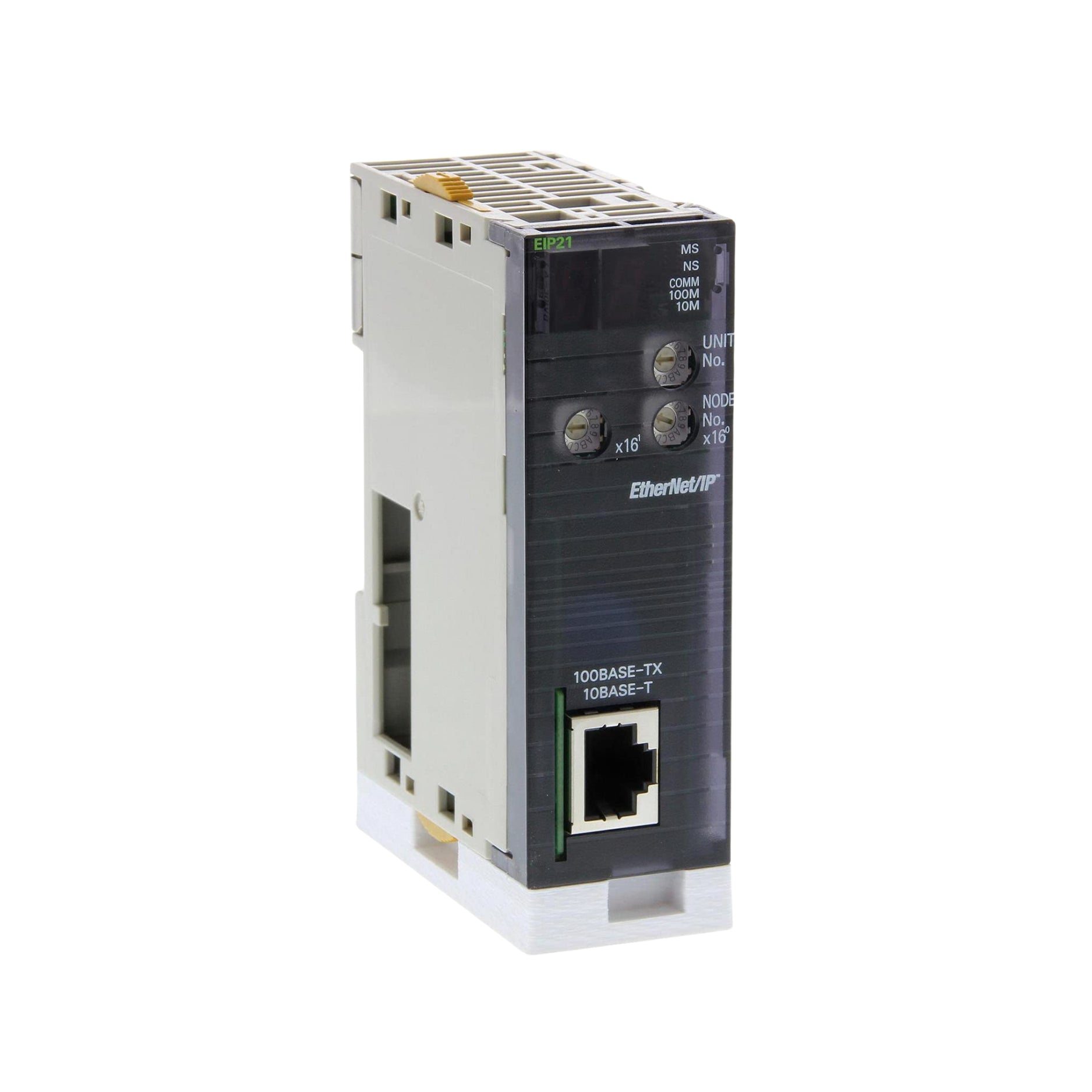

Omron CJ1W-EIP21 | EtherNet/IP Communication Unit for CJ-Series

Omron CJ1W-EIP21 | EtherNet/IP Communication Unit for CJ-Series PLCs

Overview:

The Omron CJ1W-EIP21 is a high-performance EtherNet/IP communication unit designed to provide fast and efficient networking capabilities for CJ-Series PLCs. It supports real-time data exchange, enabling seamless communication between controllers, remote I/O, HMIs, and other EtherNet/IP devices. With built-in diagnostics, high-speed processing, and flexible configuration, it is an essential component for modern industrial automation systems.

Key Features:

• EtherNet/IP Communication – Enables fast and reliable data exchange between PLCs and networked devices.
• High-Speed Data Transfer – Supports cyclic and message-based communication.
• Seamless Integration – Fully compatible with CJ-Series PLCs and Sysmac Studio/CX-One software.
• Built-in Diagnostics & Monitoring – Provides real-time network status and error detection.
• Flexible IP Configuration – Supports DHCP, static IP, and port forwarding.
• Multicast and Unicast Communication – Optimized for efficient data transmission.
• Compact & Space-Saving Design – Fits directly into CJ-Series PLC racks.

Technical Specifications:

• Model: CJ1W-EIP21
• Communication Protocol: EtherNet/IP
• Network Interface: 1x RJ45 (10/100 Mbps)
• Max. Number of Connections: 256
• Max. Data Exchange per Unit: 10,000 words
• Cyclic Data Exchange: Yes (real-time I/O communication)
• Explicit Messaging: Yes (peer-to-peer communication)
• IP Address Assignment: Static, DHCP, or BOOTP
• Power Consumption: 400 mA (at 5V DC)
• Certifications:
  • CE: Yes
  • UL (cULus): Yes
  • RoHS Compliant: Yes

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Relative Humidity: 10% to 95% (non-condensing)
• Vibration Resistance: 10 to 57 Hz, 0.075 mm amplitude
• Shock Resistance: 150 m/s² (15G)

Applications:

• Industrial Automation Networks – Facilitates real-time data exchange between controllers, HMIs, and sensors.
• Machine-to-Machine Communication – Ensures seamless PLC connectivity for synchronized operations.
• SCADA & MES Integration – Enables data monitoring, analysis, and remote diagnostics.
• Factory & Process Control – Optimized for high-speed industrial communication.

Why Choose the Omron CJ1W-EIP21?

The Omron CJ1W-EIP21 provides high-speed EtherNet/IP communication for CJ-Series PLCs, ensuring seamless industrial network integration. With fast data exchange, real-time monitoring, and flexible configuration options, it is an ideal solution for modern, connected automation systems.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
