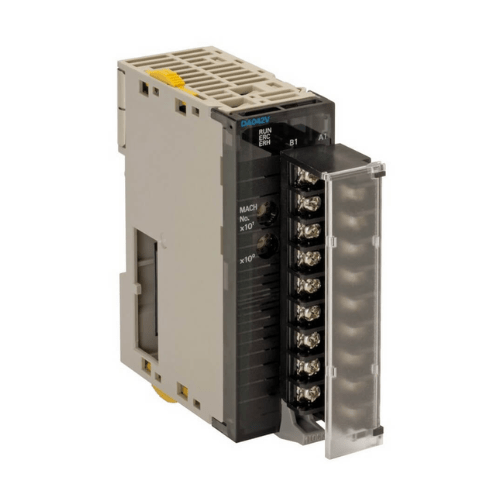

Omron CJ1W-DA041 | Analog Output Unit | 4 Channels | Voltage and

Omron CJ1W-DA041 | Analog Output Unit | 4 Channels | Voltage and Current Outputs

Overview:

The Omron CJ1W-DA041 is a highly reliable analog output unit designed for CJ series PLCs, providing four independent analog output channels. Each channel supports configurable voltage and current output ranges, making it an ideal choice for precise industrial control applications.

Key Features:

• Four Analog Output Channels – Supports four independent analog outputs for flexible signal control.
• Configurable Output Ranges – Selectable voltage (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) and current (4 to 20 mA) outputs per channel.
• 12-Bit Resolution – Ensures precise and accurate analog signal output.
• Fast Conversion Time – 4 ms/unit conversion rate for real-time applications.
• Easy Integration – Fully compatible with Omron CJ series PLCs.
• DIN Rail Mounting – Simple installation on DIN rail systems.
• Secure Connections – Screw terminal wiring ensures reliable and durable connections.

Technical Specifications:

• Model: CJ1W-DA041
• Number of Outputs: 4 analog outputs
• Output Signal Ranges:
  • Voltage: 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V
  • Current: 4 to 20 mA
• Resolution: 12 bits
• Conversion Time: 4 ms per unit
• External Power Supply: 24 VDC, 200 mA
• Mounting Type: DIN rail
• Termination Style: Screw terminals
• Dimensions (W x H x D): 31 x 90 x 89 mm
• Weight: Approximately 150 g
• Certifications: CE, cULus, Lloyd, NK

Applications:

• Industrial Automation – Controls analog actuators, motors, and drives.
• Process Control – Regulates temperature, pressure, and speed in industrial systems.
• Data Acquisition Systems – Provides accurate analog outputs for testing and measurement.

Why Choose the Omron CJ1W-DA041?

The Omron CJ1W-DA041 is an efficient and precise analog output module, designed for high-performance industrial control systems. With configurable signal ranges, high resolution, and reliable operation, it is a trusted choice for automation and process control applications.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
