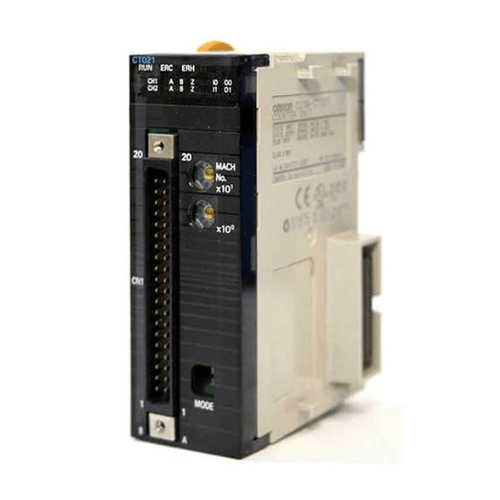

Omron CJ1W-CT021 | High-Speed Counter Module for CJ-Series PLCs

Omron CJ1W-CT021 | High-Speed Counter Module for CJ-Series PLCs

Overview:

The Omron CJ1W-CT021 is a high-speed counter module designed for CJ-series PLCs, enabling accurate counting, measurement, and position detection in industrial applications. It is ideal for encoder inputs, rotary position tracking, and motion control, ensuring real-time data acquisition and fast response times.

Key Features:

• Two Independent High-Speed Counters – Supports up to 100 kHz per channel.
• Multiple Counting Modes – Includes incremental, decremental, ring counting, and direction detection.
• Quadrature Encoder Support – Enables precise position tracking for automation systems.
• Fast Response Time – Suitable for high-speed applications requiring real-time updates.
• Seamless PLC Integration – Works with Omron CJ-series controllers for easy implementation.
• Compact Design – Saves space while maintaining high performance and reliability.

Technical Specifications:

• Model: CJ1W-CT021
• Number of Channels: 2
• Max Input Frequency: 100 kHz per channel
• Supported Input Types:
  • Incremental encoders
  • Pulse signals (A/B phase, Up/Down, pulse/direction)
• Resolution: 32-bit counter
• Data Processing: Fast cycle updates for real-time control
• Power Supply: Provided via CJ-series PLC backplane
• Mounting Type: DIN Rail (CJ-series PLC rack)

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 90% (non-condensing)
• Vibration Resistance: 10-57 Hz, 0.075 mm amplitude

Applications:

• Position Control & Motion Tracking – Ideal for encoder-based position detection.
• Industrial Automation – Provides real-time high-speed counting.
• Rotary Machinery & CNC Systems – Ensures precise motion control.
• Production Line Monitoring – Tracks conveyor belt speeds and object counting.

Why Choose the Omron CJ1W-CT021?

The Omron CJ1W-CT021 high-speed counter module offers fast and accurate counting, reliable motion tracking, and seamless PLC integration. With its high-speed capabilities, encoder support, and compact design, it is a perfect choice for real-time automation and precision control applications.

Order Now

Fast shipping and worldwide delivery available.
