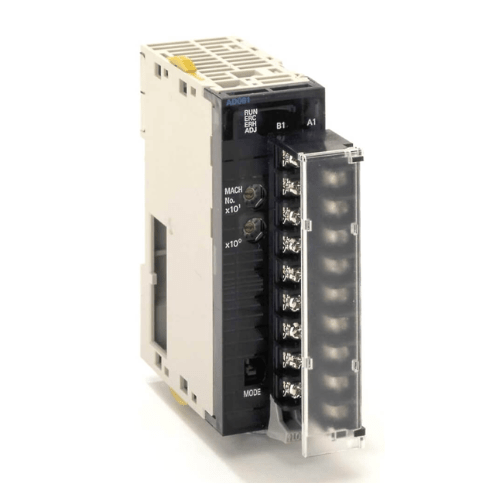

Omron CJ1W-AD081-V1 | Analog Input Module

Omron CJ1W-AD081-V1 | Versatile Analog Input Module for CJ-Series PLCs

Overview

The Omron CJ1W-AD081-V1 is an analog input module designed to provide 8 input channels for Omron's CJ-series Programmable Logic Controllers (PLCs). It supports multiple input signal ranges, including 1–5 V, 0–5 V, 0–10 V, ±10 V, and 4–20 mA, offering flexibility for various industrial applications. With a 13-bit resolution, this module ensures accurate and reliable data acquisition for process monitoring and control.

Key Features

• Input Channels: 8 analog inputs

• Input Signal Ranges: 1–5 V, 0–5 V, 0–10 V, ±10 V, 4–20 mA

• Resolution: 13-bit (1/8000) for precise data conversion

• Conversion Time: 4 ms per unit

• Input Impedance:

  • Voltage Input: 1 MΩ minimum

  • Current Input: 250 Ω (rated value)

• Isolation: Photocoupler isolation between I/O and controller signals

• Connection Method: Detachable 18-point terminal block with M3 screw terminals

• Compact Design: Dimensions of 31 mm (W) x 90 mm (H) x 65 mm (D)

• Weight: Approximately 140 g

• Power Consumption: 420 mA max. at 5 VDC

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus, Lloyd, NK

Applications

• Industrial Automation: Facilitates accurate monitoring of analog signals from sensors and transducers

• Process Control: Enables precise data acquisition for controlling various industrial processes

• Machine Monitoring: Provides real-time analog input data for machinery performance analysis

Why Choose the Omron CJ1W-AD081-V1?

• Flexible Input Ranges: Accommodates multiple voltage and current input signals for diverse applications

• High Resolution: 13-bit resolution ensures precise analog-to-digital conversion

• Reliable Isolation: Photocoupler isolation enhances signal integrity and system safety

• Compact and Lightweight: Space-saving design suitable for various control panel configurations

Order Now

Available for immediate worldwide shipping. Contact us for pricing, availability, and technical support to ensure seamless integration into your PLC systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
